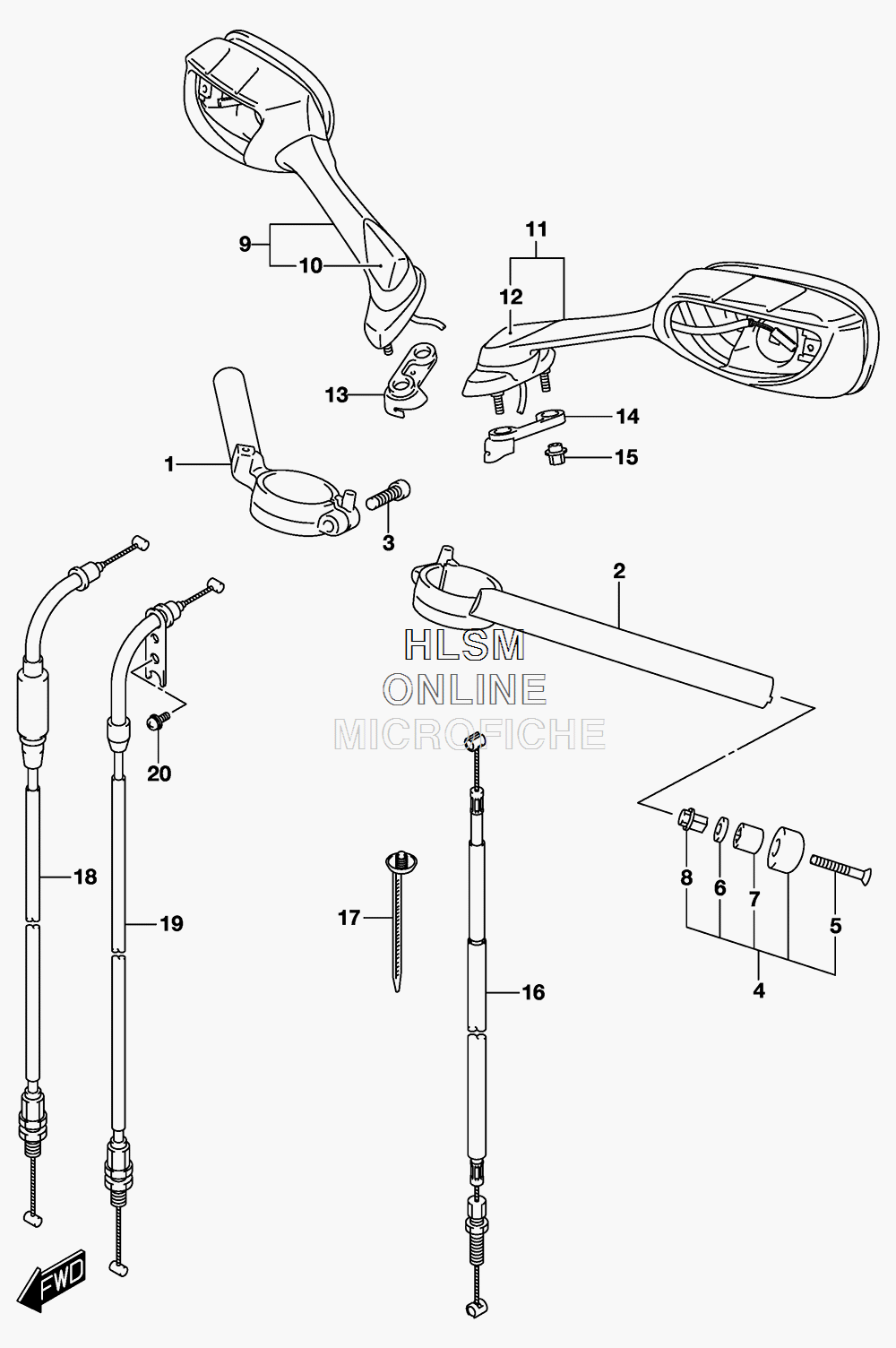

HANDLEBAR для Suzuki GSX-R1000A L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
156111-47H10 HANDLEBAR, RHHANDLEBAR, RH
-
256151-47H11 HANDLEBAR, LHHANDLEBAR, LH
-
309106-08185 BOLT (8X32)BOLT (8X32)
-
456200-41822 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
502122-0640B ...SCREW...SCREW
-
609160-06131 ...WASHER (6.5X16X4)...WASHER (6.5X16X4)
-
756272-10G00 ...EXPANDER...EXPANDER
-
856273-10G10 ...NUT...NUT
-
956500-47H01 MIRROR ASSY, REAR VIEW RHMIRROR ASSY, REAR VIEW RH
-
1056515-47H01 ...CAP, RH...CAP, RH
-
1156600-47H01 MIRROR ASSY, REAR VIEW LHMIRROR ASSY, REAR VIEW LH
-
1256615-47H01 ...CAP, LH...CAP, LH
-
1394575-47H00 CUSHION, RHCUSHION, RH
-
1494576-47H00 CUSHION, LHCUSHION, LH
-
1556619-41G01 NUTNUT
-
1658200-47H20 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1709407-17403 CLAMP (L:154)CLAMP (L:154)
-
1858300-47H00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1958300-47H10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
2009125-05042 SCREW (5X10)SCREW (5X10)
