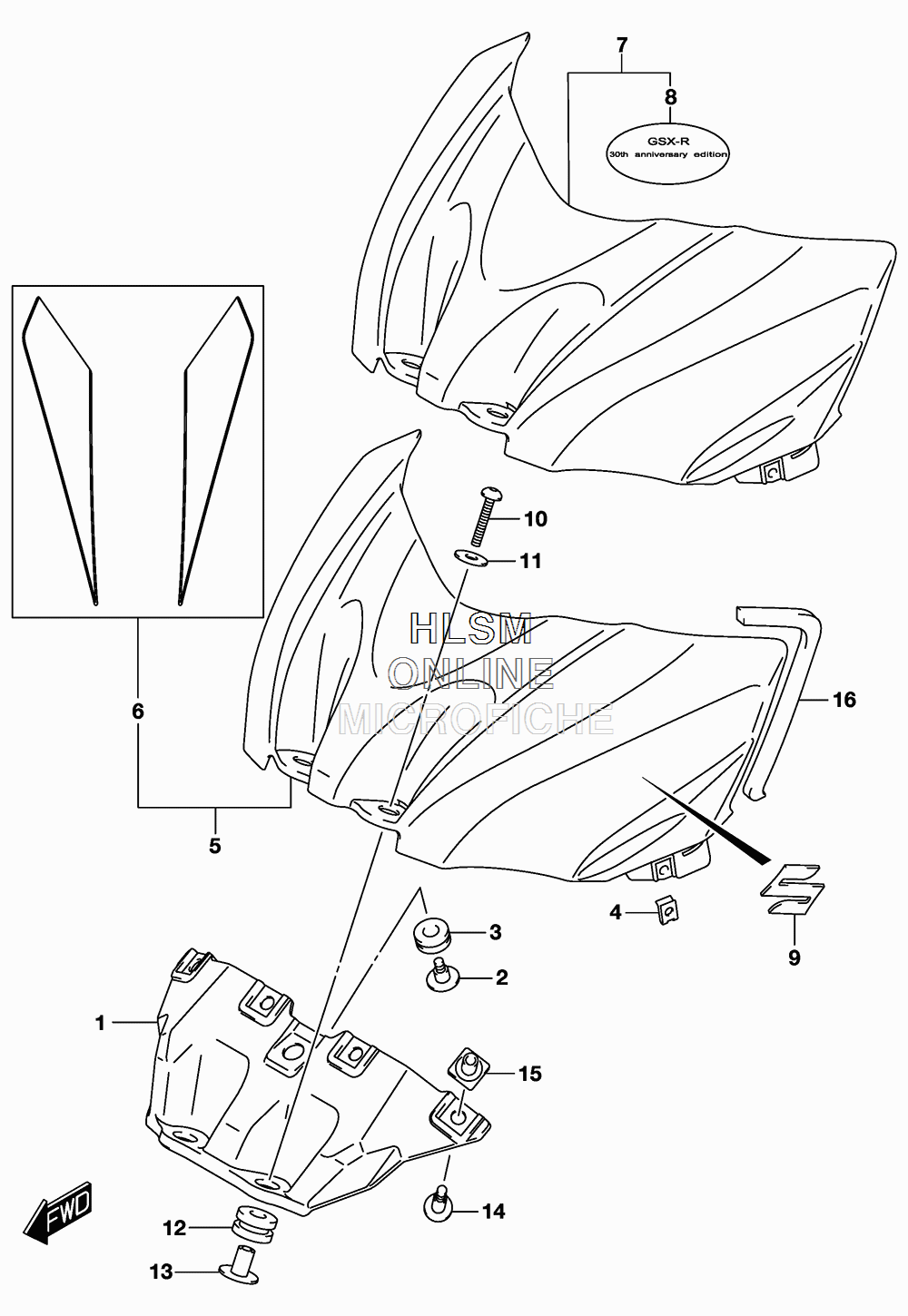

FUEL TANK - FRONT COVER для Suzuki GSX-R1000A L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
144521-47H00 BRACKET, FRONTBRACKET, FRONT
-
209139-05078 SCREW (5X16.4)SCREW (5X16.4)
-
309320-08021 CUSHIONCUSHION
-
409148-05052 NUTNUT
-
544290-47H20-YSF COVER, FRONT (BLUE) (FOR YSF)COVER, FRONT (BLUE) (FOR YSF)
-
668120-47H10-AGQ ...TAPE SET, FUEL TANK COVER (FOR YSF)...TAPE SET, FUEL TANK COVER (FOR YSF)
-
744290-47H40-YKY COVER, FRONT (BLUE) (FOR AJP)COVER, FRONT (BLUE) (FOR AJP)
-
744290-47H40-YVZ COVER, FRONT (RED) (FOR JSP)COVER, FRONT (RED) (FOR JSP)
-
868121-47H10-QES ...EMBLEM, FUEL TANK COVER (FOR YKY,YVZ)...EMBLEM, FUEL TANK COVER (FOR YKY,YVZ)
-
968111-47HA0 EMBLEM ''S''EMBLEM ''S''
-
1009139-06105 SCREW (6X40)SCREW (6X40)
-
1109160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1209320-10050 CUSHIONCUSHION
-
1344512-47H00 SPACERSPACER
-
1409139-06181 SCREW (6X10)SCREW (6X10)
-
1544523-47H00 NUTNUT
-
1644277-37H00 CUSHIONCUSHION
