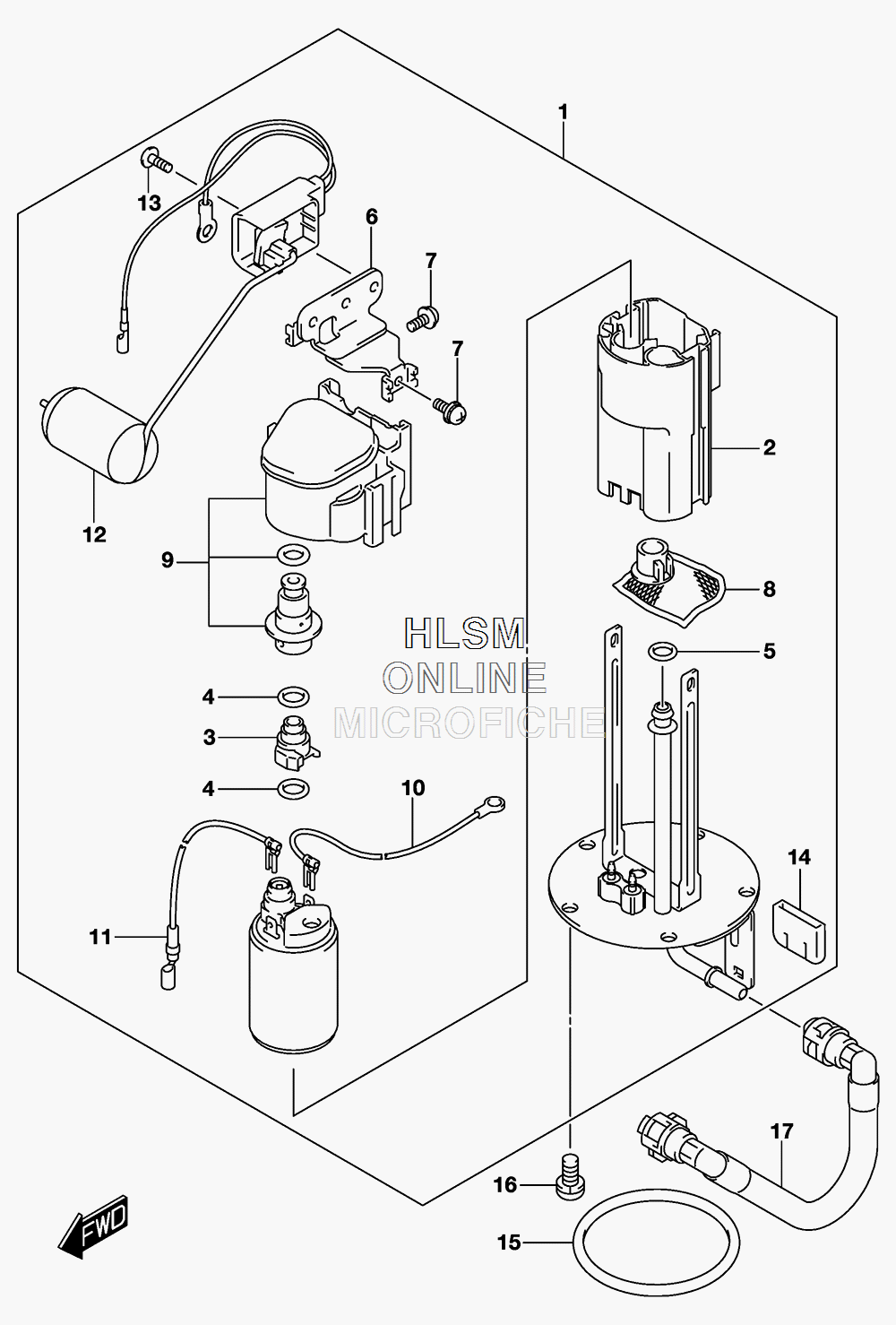

FUEL PUMP для Suzuki GSX-R1000A L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
115100-47H20 PUMP ASSY, FUELPUMP ASSY, FUEL
-
215111-27G00 ...CUP...CUP
-
315112-05H00 ...JOINT...JOINT
-
415113-05H00 ...O RING...O RING
-
515113-35F00 ...O RING...O RING
-
615181-47H00 ...BRACKET, FUEL GAUGE...BRACKET, FUEL GAUGE
-
715116-10F00 ...SCREW...SCREW
-
815420-31J00 ...STRAINER, FUEL PUMP...STRAINER, FUEL PUMP
-
915610-14J00 ...REGULATOR, FUEL...REGULATOR, FUEL
-
1015114-14J00 ...WIRE, EARTH...WIRE, EARTH
-
1115115-08J00 ...WIRE, LEAD...WIRE, LEAD
-
1234810-47H01 ...GAUGE ASSY, FUEL LEVEL...GAUGE ASSY, FUEL LEVEL
-
1315116-44H00 ...SCREW...SCREW
-
1415583-18H00 ...CAP, STAY...CAP, STAY
-
1515201-35F00 O RING, FUEL PUMPO RING, FUEL PUMP
-
1607120-0612A BOLTBOLT
-
1715810-47H20 HOSE, FUELHOSE, FUEL
