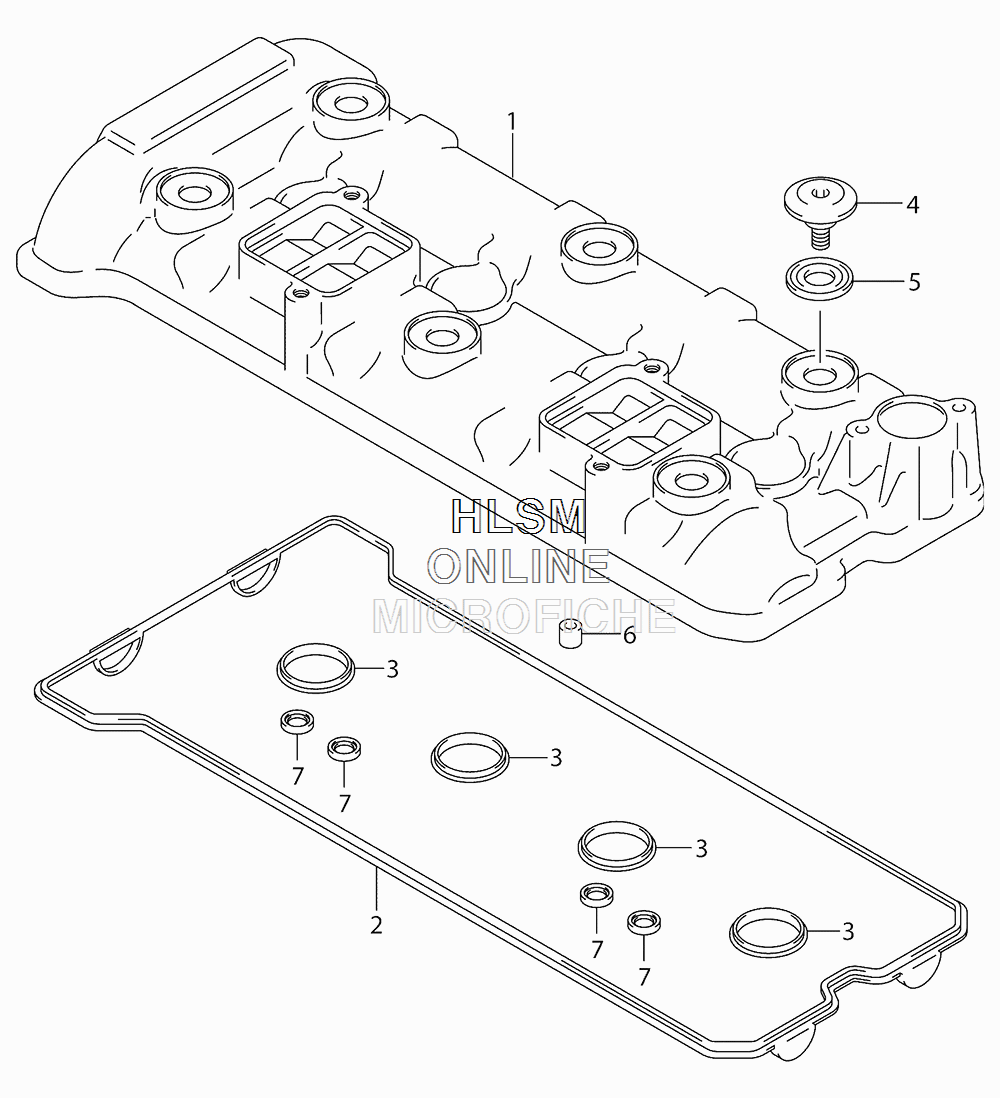

CYLINDER HEAD COVER для Suzuki GSX-S1000 L6 - 2016 года выпуска
-
№АртикулНазвание
-
111171-04K00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
211173-35F00 GASKET, HEAD COVER NO.1GASKET, HEAD COVER NO.1
-
311178-33E00 GASKET, HEAD COVER NO.2GASKET, HEAD COVER NO.2
-
409106-07009 BOLT (7X17.5)BOLT (7X17.5)
-
511191-27E00 WASHERWASHER
-
609206-10016 PIN (8.2X10X13)PIN (8.2X10X13)
-
711182-35F10 GASKET, 2ND AIR PASSAGEGASKET, 2ND AIR PASSAGE
