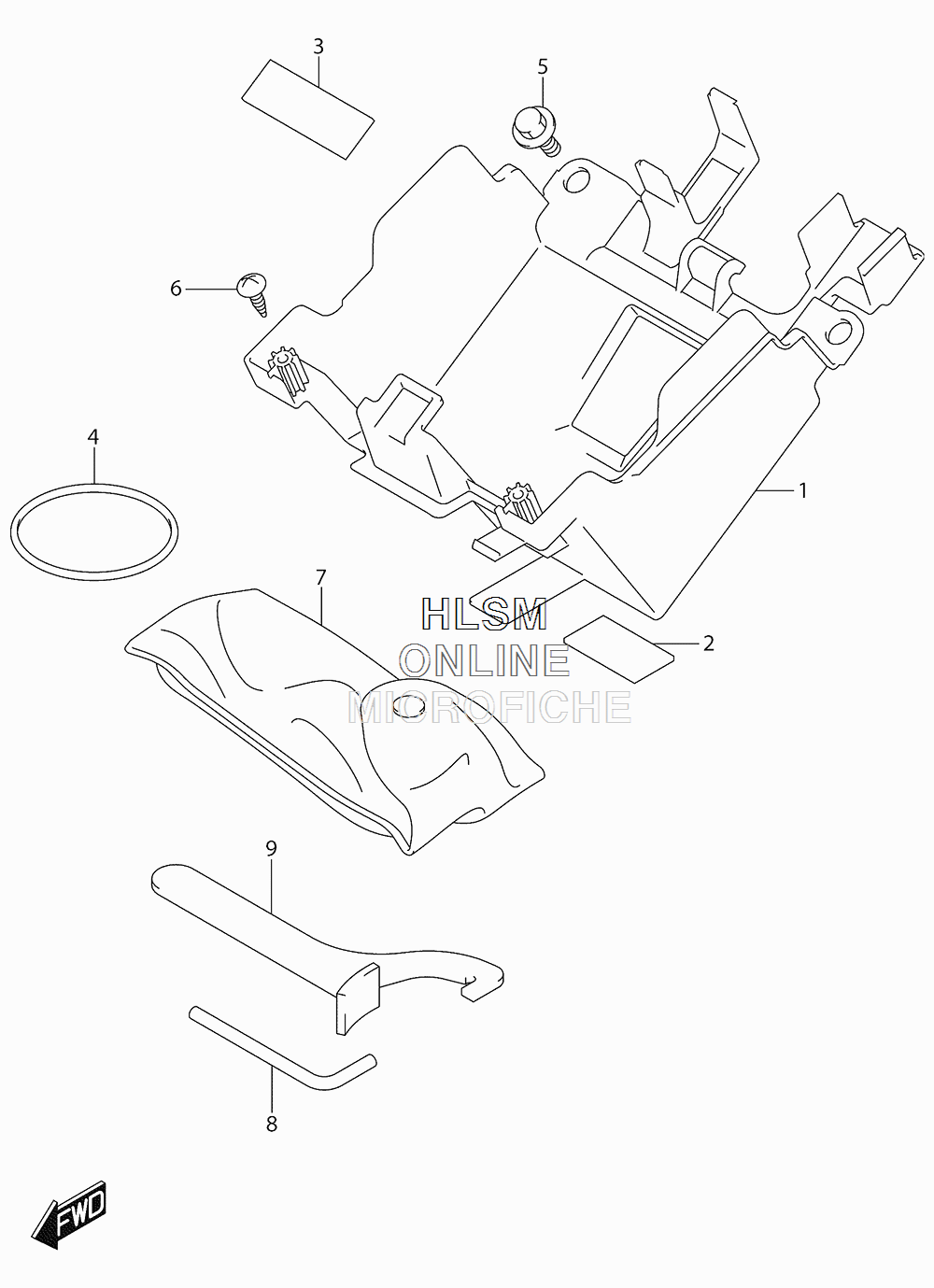

STORAGE для Suzuki GSX-S1000 L6 - 2016 года выпуска
-
№АртикулНазвание
-
147414-04K00 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
233652-13G00 PROTECTOR, BATTERY (30X40X1.0)PROTECTOR, BATTERY (30X40X1.0)
-
392215-39H00 CUSHION, BATTERY BOXCUSHION, BATTERY BOX
-
409280-57003 O RING (D:3.5,ID:56.5)O RING (D:3.5,ID:56.5)
-
509111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
603541-0516A SCREWSCREW
-
709800-21056 TOOL ASSYTOOL ASSY
-
809816-00059 HEXAGON SPANNER, 5HEXAGON SPANNER, 5
-
909822-00005 CLAMP, WRENCHCLAMP, WRENCH
