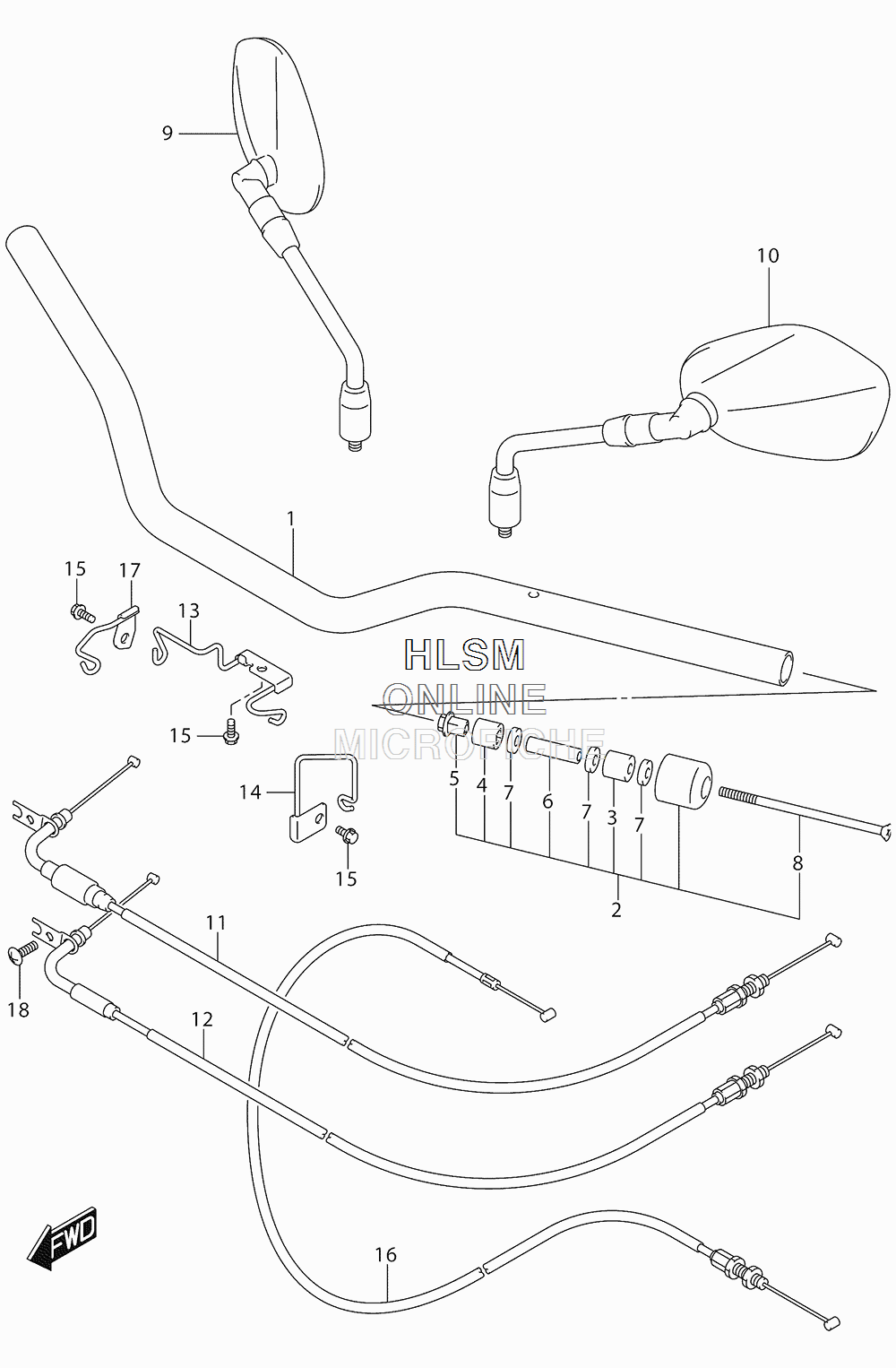

HANDLEBAR для Suzuki GSX-S1000 L6 - 2016 года выпуска
-
№АртикулНазвание
-
156111-04K00 HANDLEBARHANDLEBAR
-
256200-03860 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
356272-10G00 ...EXPANDER, HANDLE BALANCER...EXPANDER, HANDLE BALANCER
-
456272-42F00 ...EXPANDER, HANDLE BALANCER...EXPANDER, HANDLE BALANCER
-
556273-10G10 ...NUT, HANDLE BALANCER...NUT, HANDLE BALANCER
-
609180-06356 ...SPACER (6.5X9X34)...SPACER (6.5X9X34)
-
709160-06131 ...WASHER (6.5X16X4)...WASHER (6.5X16X4)
-
809127-06018 ...SCREW (6X110)...SCREW (6X110)
-
956500-08J11 MIRROR ASSY, REAR VIEW RHMIRROR ASSY, REAR VIEW RH
-
1056600-08J11 MIRROR ASSY, REAR VIEW LHMIRROR ASSY, REAR VIEW LH
-
1158300-04K00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1258300-04K10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1358620-04K00 GUIDE, CABLE NO.1GUIDE, CABLE NO.1
-
1458630-04K00 GUIDE, CABLE NO.2GUIDE, CABLE NO.2
-
1501547-0612B BOLTBOLT
-
1658200-04K00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1758640-04K00 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
1802142-0510B SCREWSCREW
