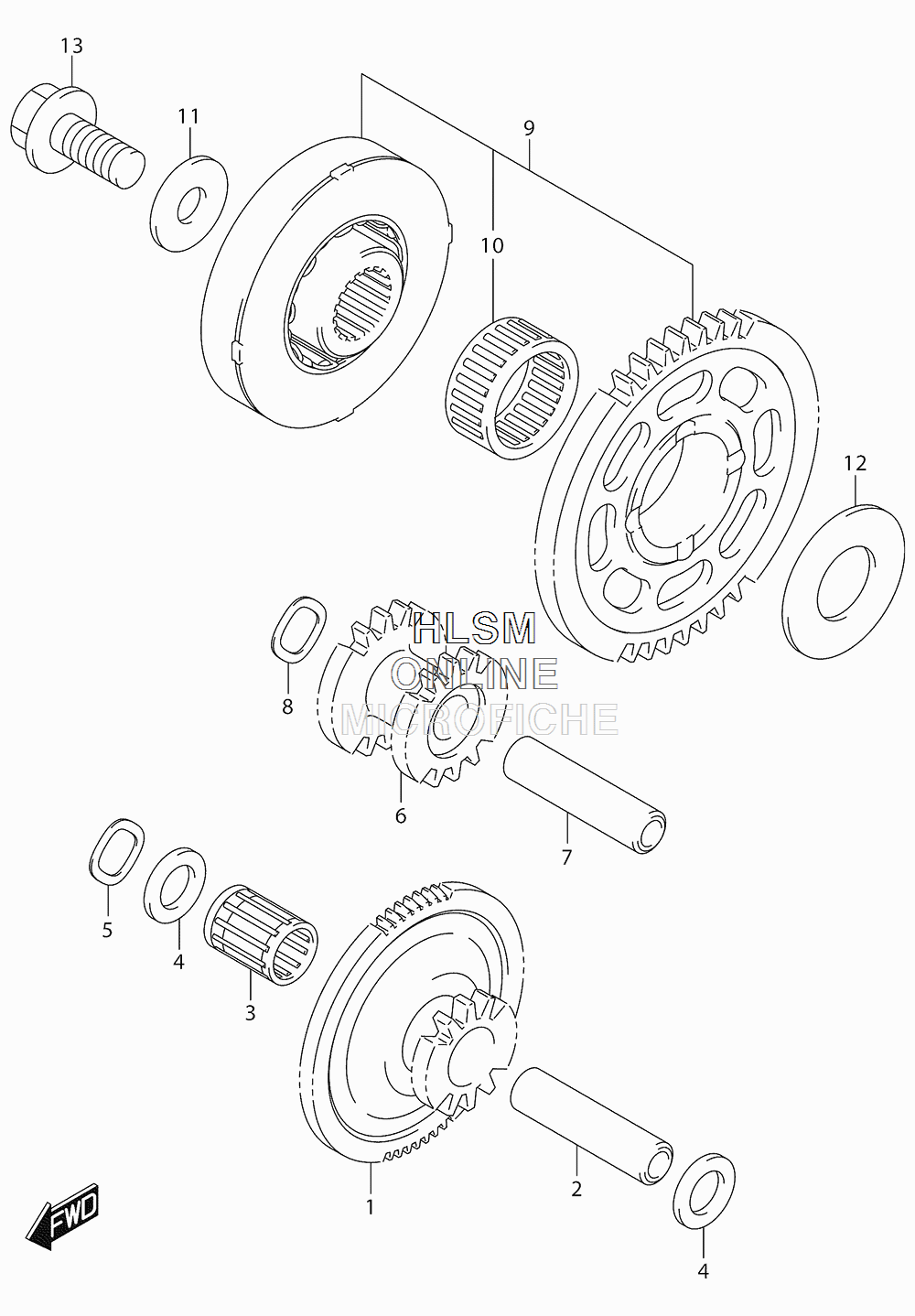

STARTER CLUTCH для Suzuki GSX-S1000 L6 - 2016 года выпуска
-
№АртикулНазвание
-
112611-04K00 GEAR, STARTER IDLE NO.1 (NT:15/75)GEAR, STARTER IDLE NO.1 (NT:15/75)
-
209206-12006 PIN (8X12X45.5)PIN (8X12X45.5)
-
309263-12022 BEARING (12X16X20)BEARING (12X16X20)
-
409181-12167 SHIM (12X20X1)SHIM (12X20X1)
-
509164-12021 WASHERWASHER
-
612612-04K00 GEAR, STARTER IDLE NO.2 (NT:15/17)GEAR, STARTER IDLE NO.2 (NT:15/17)
-
709206-12006 PIN (8X12X45.5)PIN (8X12X45.5)
-
809164-12021 WASHERWASHER
-
912600-40831 CLUTCH SET, STARTER (NT:44)CLUTCH SET, STARTER (NT:44)
-
1009263-26035 ...BEARING (26X31X16)...BEARING (26X31X16)
-
1108211-10285 WASHERWASHER
-
1208211-20403 WASHERWASHER
-
1309103-10189 BOLT (10X23)BOLT (10X23)
