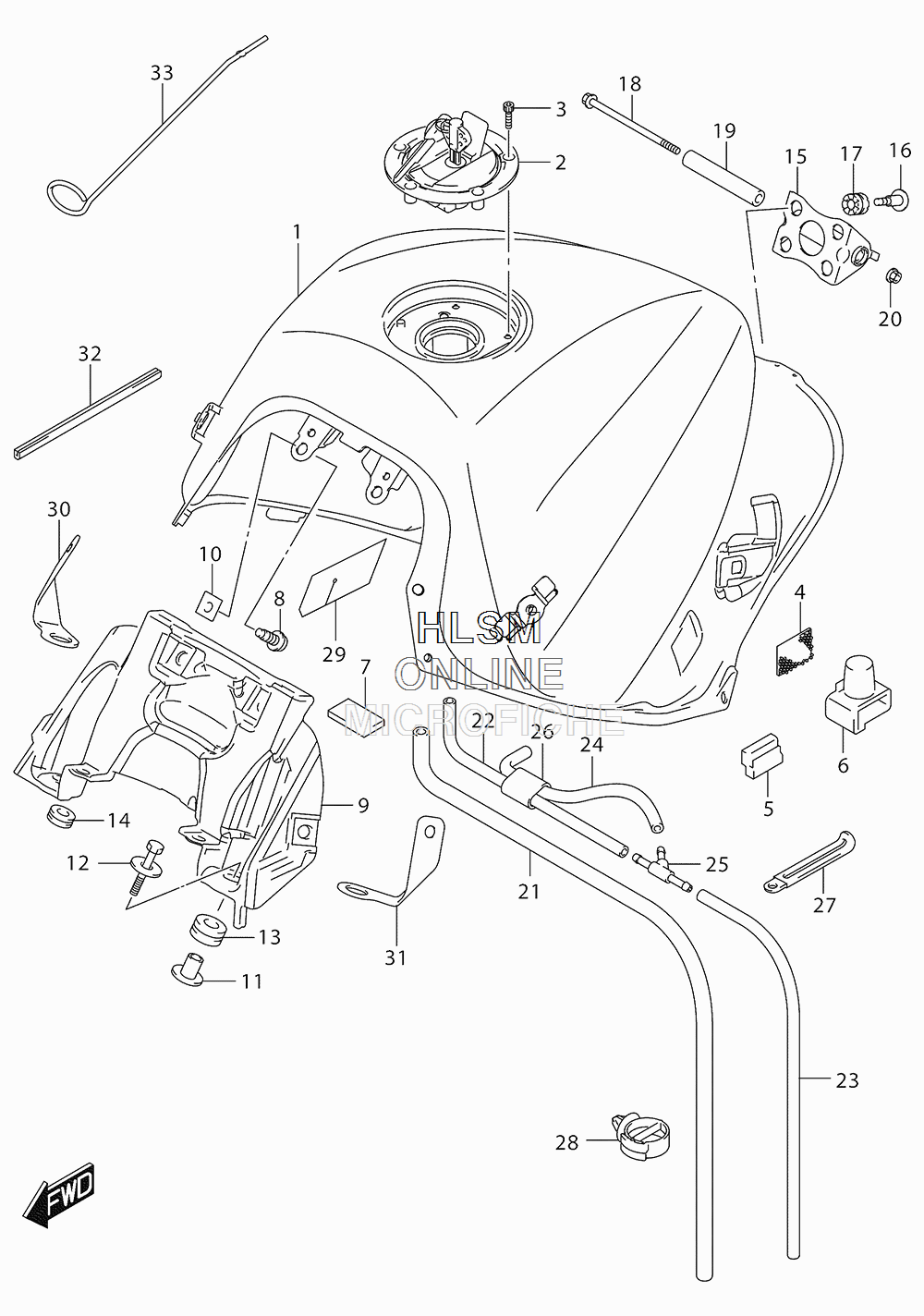

FUEL TANK для Suzuki GSX-S1000 L6 - 2016 года выпуска
-
№АртикулНазвание
-
144100-04K10-PGZ TANK ASSY, FUEL (GRAY) (FOR PGZ)TANK ASSY, FUEL (GRAY) (FOR PGZ)
-
144100-04K10-YSF TANK ASSY, FUEL (BLUE) (FOR YSF)TANK ASSY, FUEL (BLUE) (FOR YSF)
-
144100-04K10-YVB TANK ASSY, FUEL (BLACK) (FOR AV4)TANK ASSY, FUEL (BLACK) (FOR AV4)
-
244200-17810 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
344244-11J00 BOLTBOLT
-
444572-13G00 FASTENERFASTENER
-
544541-41G00 CUSHION, SIDECUSHION, SIDE
-
644542-04K00 CUSHION, REARCUSHION, REAR
-
733652-21G10 CUSHION, FUEL TANK INNERCUSHION, FUEL TANK INNER
-
844543-04K00 SCREW, BRACKET FRONTSCREW, BRACKET FRONT
-
944521-04K00 BRACKET, FUEL TANK FRONTBRACKET, FUEL TANK FRONT
-
1044523-47H00 NUTNUT
-
1144512-04K00 SPACER, FUEL TANK FRONTSPACER, FUEL TANK FRONT
-
1209116-06172 BOLT (6X30)BOLT (6X30)
-
1309320-10050 CUSHIONCUSHION
-
1409320-06504 CUSHIONCUSHION
-
1544530-04K00 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
1609139-06203 SCREW (6X24)SCREW (6X24)
-
1709320-08089 CUSHIONCUSHION
-
1809103-06060 BOLT (6X100)BOLT (6X100)
-
1944561-18G00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
2009159-06076 NUTNUT
-
2144423-04K00 HOSE, DRAINHOSE, DRAIN
-
2244424-04K00 HOSE, BREATHER NO.1HOSE, BREATHER NO.1
-
2309352-50823-600 HOSE (5X8.2X600) (5X8.2X600) (L:600->530)HOSE (5X8.2X600) (5X8.2X600) (L:600->530)
-
2444424-15H10 HOSE, BREATHER NO.3HOSE, BREATHER NO.3
-
2509367-06007 3 WAY3 WAY
-
2609352-12163-600 HOSE (12X16X600) (L:600->10)HOSE (12X16X600) (L:600->10)
-
2709404-06433 CLAMP (L:80)CLAMP (L:80)
-
2809403-20307 CLAMPCLAMP
-
2944283-06J00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
3044561-04K00 BRACKET, FUEL TANK FRONT RHBRACKET, FUEL TANK FRONT RH
-
3144571-04K00 BRACKET, FUEL TANK FRONT LHBRACKET, FUEL TANK FRONT LH
-
3244552-24B00 MOLDING, FUEL TANK REARMOLDING, FUEL TANK REAR
-
3344560-23H00 STAY, FUEL TANK (OPT)STAY, FUEL TANK (OPT)
