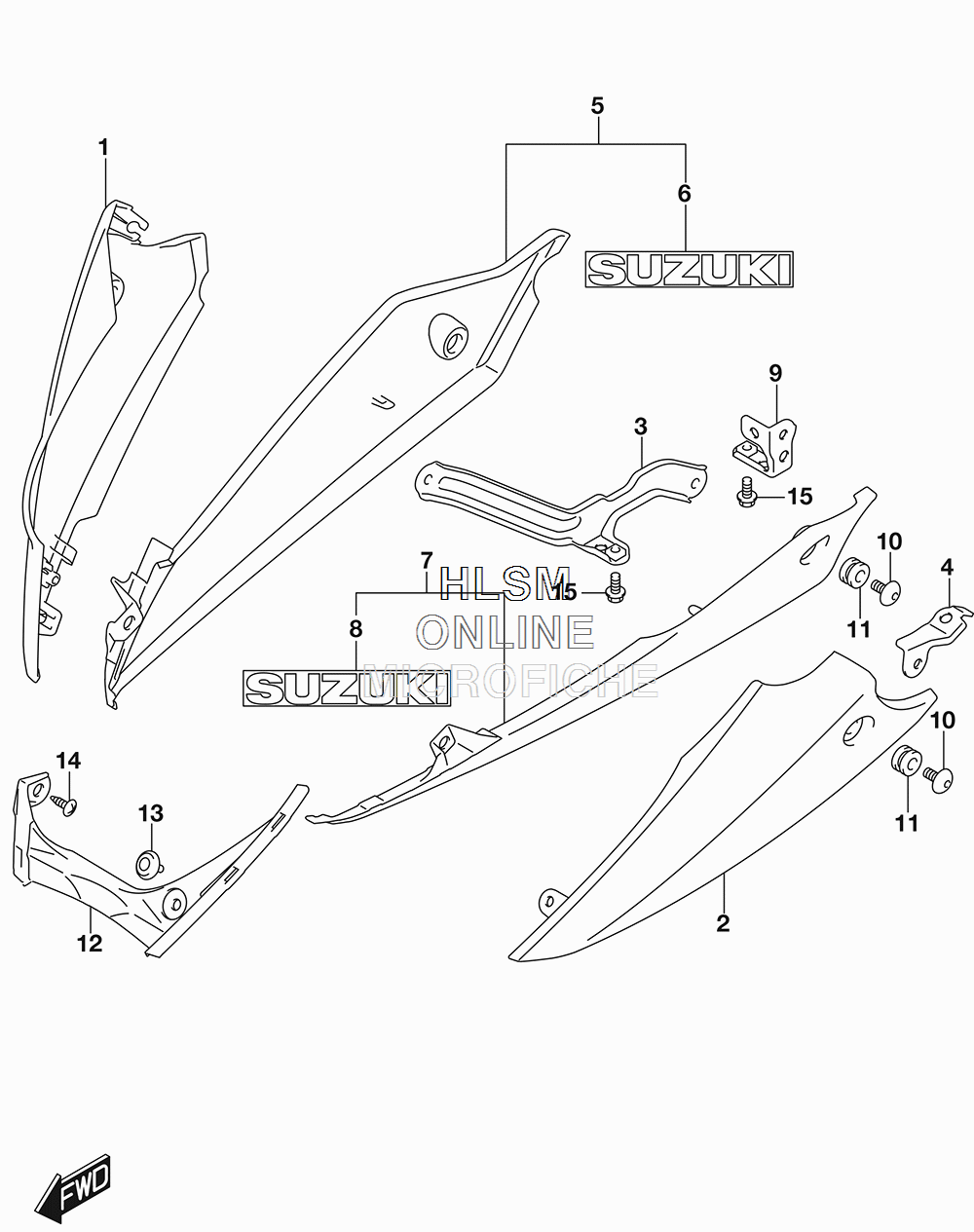

COWLING - UNDER BODY для Suzuki GSX-S1000 - 2017 года выпуска
-
№АртикулНазвание
-
194471-04K00-YKV COWLING, UNDER (RH) (YKV - BLACK)COWLING, UNDER (RH) (YKV - BLACK)
-
294472-04K00-YKV COWLING, UNDER (LH) (YKV - BLACK)COWLING, UNDER (LH) (YKV - BLACK)
-
394530-04K00 BRACKET, UNDER COWL (RH)BRACKET, UNDER COWL (RH)
-
494520-04K00 BRACKET, UNDER COWL FR (LH)BRACKET, UNDER COWL FR (LH)
-
5-194470-04K00-PGZ COWLING, UNDER REAR (RH) (PGZ - GRAY)COWLING, UNDER REAR (RH) (PGZ - GRAY)
-
5-294470-04K00-YSF COWLING, UNDER REAR (RH) (YSF - BLUE)COWLING, UNDER REAR (RH) (YSF - BLUE)
-
5-394470-04K00-YYG COWLING, UNDER REAR (RH) (YYG - RED FOR AV4)COWLING, UNDER REAR (RH) (YYG - RED FOR AV4)
-
668181-04K00-YES ...EMBLEM, "SUZUKI" (YES - SILVER)...EMBLEM, "SUZUKI" (YES - SILVER)
-
7-194480-04K00-PGZ COWLING, UNDER REAR (LH) (PGZ - GRAY)COWLING, UNDER REAR (LH) (PGZ - GRAY)
-
7-294480-04K00-YSF COWLING, UNDER REAR (LH) (YSF - BLUE)COWLING, UNDER REAR (LH) (YSF - BLUE)
-
7-394480-04K00-YYG COWLING, UNDER REAR (LH) (YYG - RED FOR AV4)COWLING, UNDER REAR (LH) (YYG - RED FOR AV4)
-
868181-04K00-YES ...EMBLEM, "SUZUKI" (YES - SILVER)...EMBLEM, "SUZUKI" (YES - SILVER)
-
994540-04K00 BRACKET, UNDER COWL RR (LH)BRACKET, UNDER COWL RR (LH)
-
1009106-06117 BOLT (6X12)BOLT (6X12)
-
1109320-09016 CUSHIONCUSHION
-
1294475-04K00 COWLING, UNDER CTRCOWLING, UNDER CTR
-
1394479-35F00 CLIPCLIP
-
1403541-0516A SCREWSCREW
-
1501550-0612A BOLTBOLT
