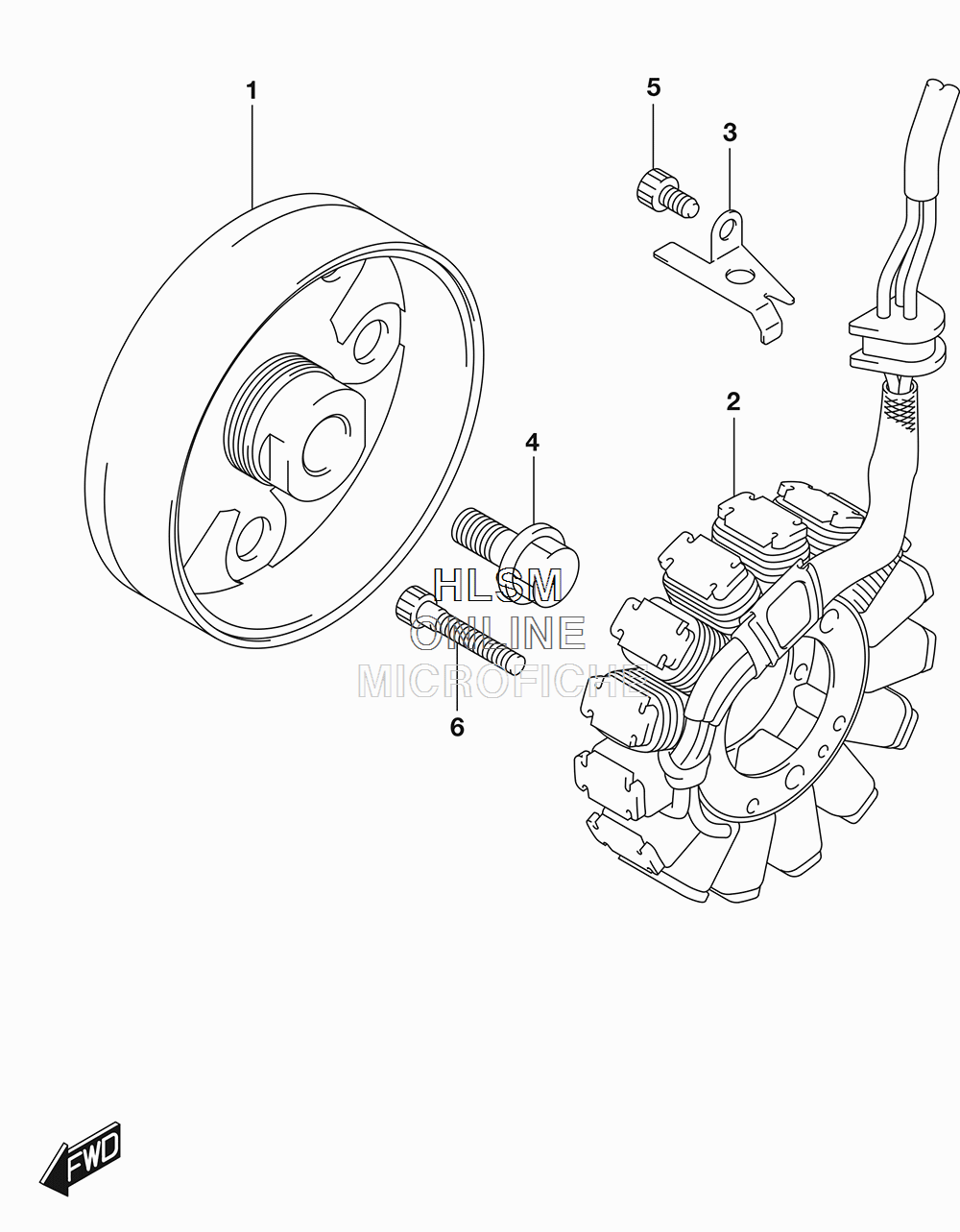

GENERATOR для Suzuki GSX-S1000 - 2017 года выпуска
-
№АртикулНазвание
-
131402-41G10 ROTOR ASSYROTOR ASSY
-
231401-41G20 STATOR ASSYSTATOR ASSY
-
332371-33E00 CLAMP, GENERATOR LEAD WIRECLAMP, GENERATOR LEAD WIRE
-
409103-12005 BOLT (12X23)BOLT (12X23)
-
507130-0612A BOLTBOLT
-
609106-06122 BOLT (6X30)BOLT (6X30)
