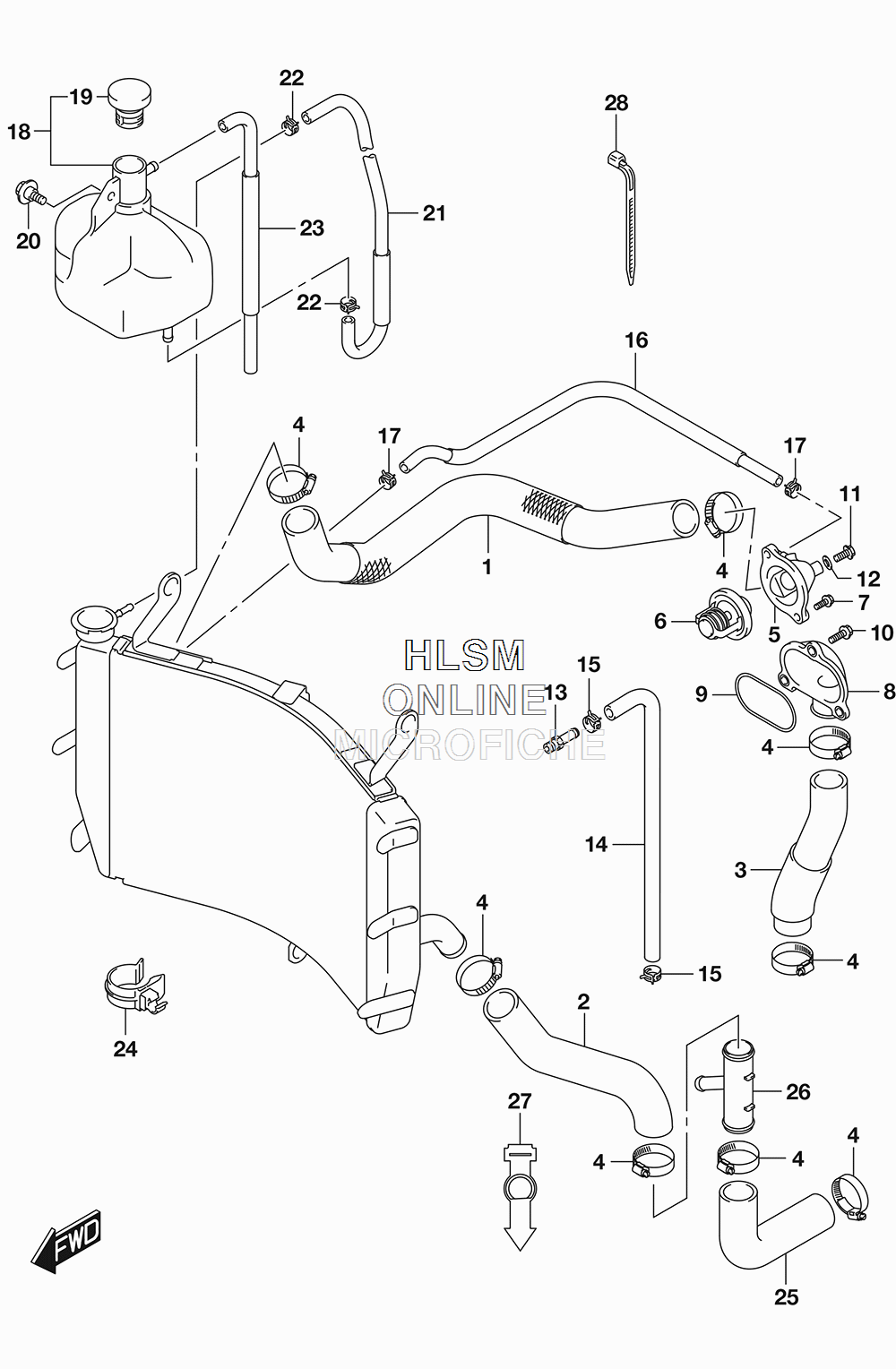

RADIATOR HOSE W/ RESERVOIR для Suzuki GSX-S1000 - 2017 года выпуска
-
№АртикулНазвание
-
117851-04K00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
217852-04K00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
317853-40F10 HOSE, CYLINDER INLETHOSE, CYLINDER INLET
-
409402-35501 CLAMPCLAMP
-
517661-35F00 COVER, THERMOSTATCOVER, THERMOSTAT
-
617670-06G60 THERMOSTAT, WATERTHERMOSTAT, WATER
-
701547-0620A BOLTBOLT
-
817861-33E20 CONNECTOR, CYLINDER JOINTCONNECTOR, CYLINDER JOINT
-
917863-33E00 O RINGO RING
-
1001547-0620A BOLTBOLT
-
1117568-50F00 BOLT, THERMOSTAT COVER AIRBOLT, THERMOSTAT COVER AIR
-
1209168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
1309362-09011 UNIONUNION
-
1417854-04K00 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
1509401-12414 CLIPCLIP
-
1617857-04K00 HOSE, WATER AIR BLEEDHOSE, WATER AIR BLEED
-
1709401-10409 CLIPCLIP
-
1817910-04K00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1917931-31J00 ...CAP...CAP
-
2009111-06085 BOLT (6X12)BOLT (6X12)
-
2117981-04K01 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
2209401-08411 CLIPCLIP
-
2317982-04K00 HOSE, RESERVOIR TANK OVER FLOHOSE, RESERVOIR TANK OVER FLO
-
2409408-00321 CLAMPCLAMP
-
2517855-04K00 HOSE, RADIATOR OUTLET NO.2HOSE, RADIATOR OUTLET NO.2
-
2617881-04K00 PIPE, WATER HOSE JOINTPIPE, WATER HOSE JOINT
-
2717891-04K00 BAND, WATER HOSEBAND, WATER HOSE
-
2809407-18402 CLAMP (L:165)CLAMP (L:165)
