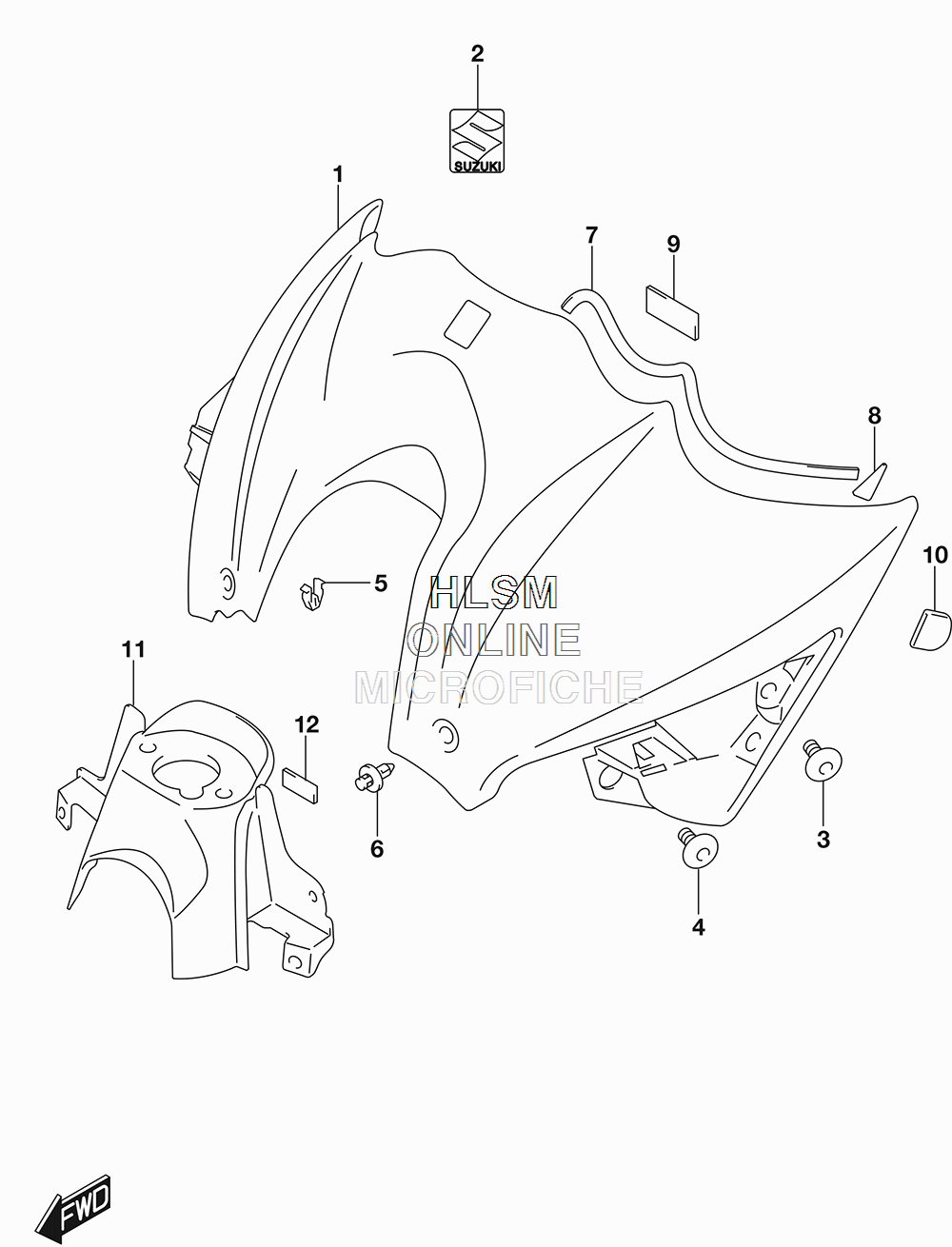

FUEL TANK - FRONT COVER для Suzuki GSX-S1000 - 2017 года выпуска
-
№АртикулНазвание
-
1-144291-04K00-PGZ COVER, TANK FRONT (FOR PGZ - GRAY)COVER, TANK FRONT (FOR PGZ - GRAY)
-
1-244291-04K00-YSF COVER, TANK FRONT (FOR YSF - BLUE)COVER, TANK FRONT (FOR YSF - BLUE)
-
1-344291-04K00-YYG COVER, TANK FRONT (YYG - RED FOR AV4)COVER, TANK FRONT (YYG - RED FOR AV4)
-
268281-47HA0 EMBLEM, "S"EMBLEM, "S"
-
309106-06117 BOLT (6X12)BOLT (6X12)
-
409139-06200 SCREW (6X12)SCREW (6X12)
-
509409-08326 CLIPCLIP
-
609409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
744292-04K00 CUSHION, TANK COVER UPPER NO.CUSHION, TANK COVER UPPER NO.
-
844293-04K00 CUSHION, TANK COVER UPPER NO.CUSHION, TANK COVER UPPER NO.
-
944294-04K00 CUSHION, TANK COVER UPPER NO.CUSHION, TANK COVER UPPER NO.
-
1044542-08J00 CUSHION ,FUEL TANK COVER SIDECUSHION ,FUEL TANK COVER SIDE
-
1144271-04K00 COVER, FUEL TANK LOWERCOVER, FUEL TANK LOWER
-
1244894-24A00 CUSHIONCUSHION
