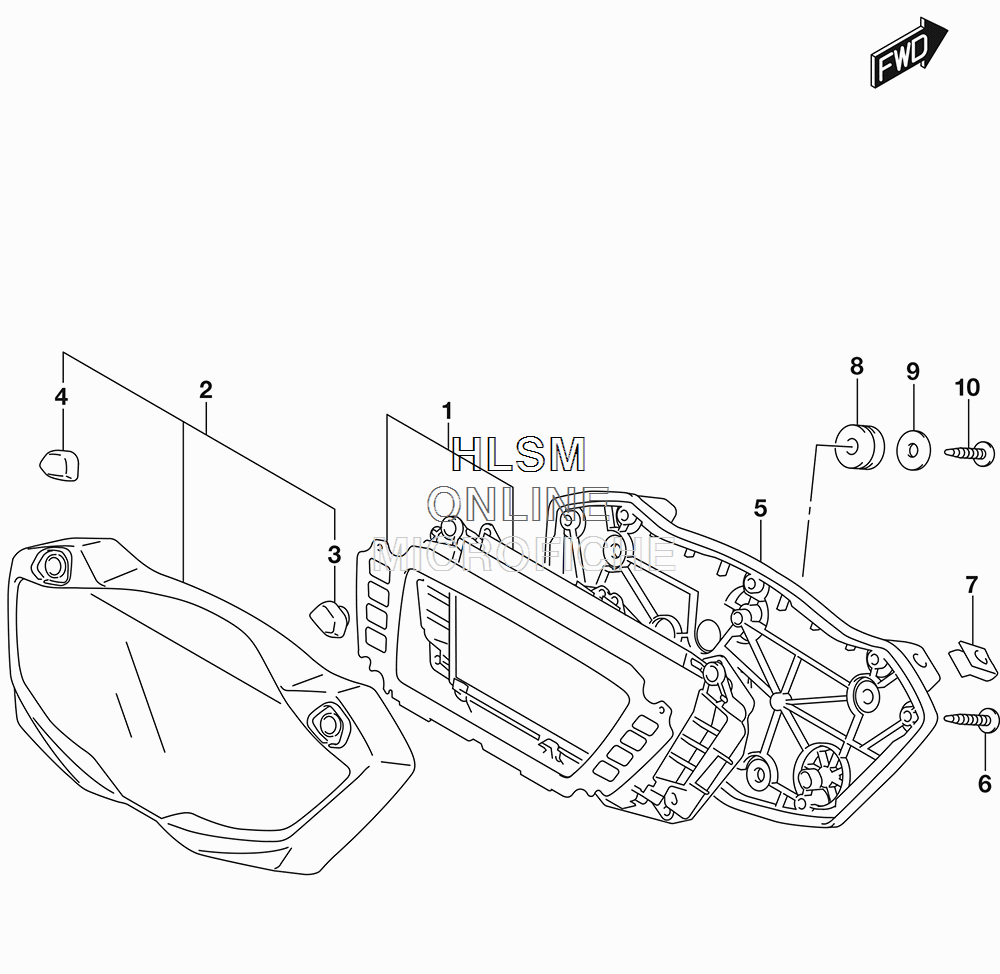

SPEEDOMETER (CALIF.) для Suzuki GSX-S1000 - 2017 года выпуска
-
№АртикулНазвание
-
134120-04K30 SPEEDOMETERSPEEDOMETER
-
234150-04K00 UPPER CASE ASSYUPPER CASE ASSY
-
334124-04K00 ...RUBBER, SWITCH (RH)...RUBBER, SWITCH (RH)
-
434124-04K10 ...RUBBER, SWITCH (LH)...RUBBER, SWITCH (LH)
-
534111-04K00 LOWER CASE ASSYLOWER CASE ASSY
-
634183-10C00 SCREWSCREW
-
709148-05052 NUTNUT
-
834189-08J00 CUSHION, SPEEDOMETERCUSHION, SPEEDOMETER
-
909160-04026 WASHER (4.5X16X1.2)WASHER (4.5X16X1.2)
-
1003541-0416A SCREWSCREW
