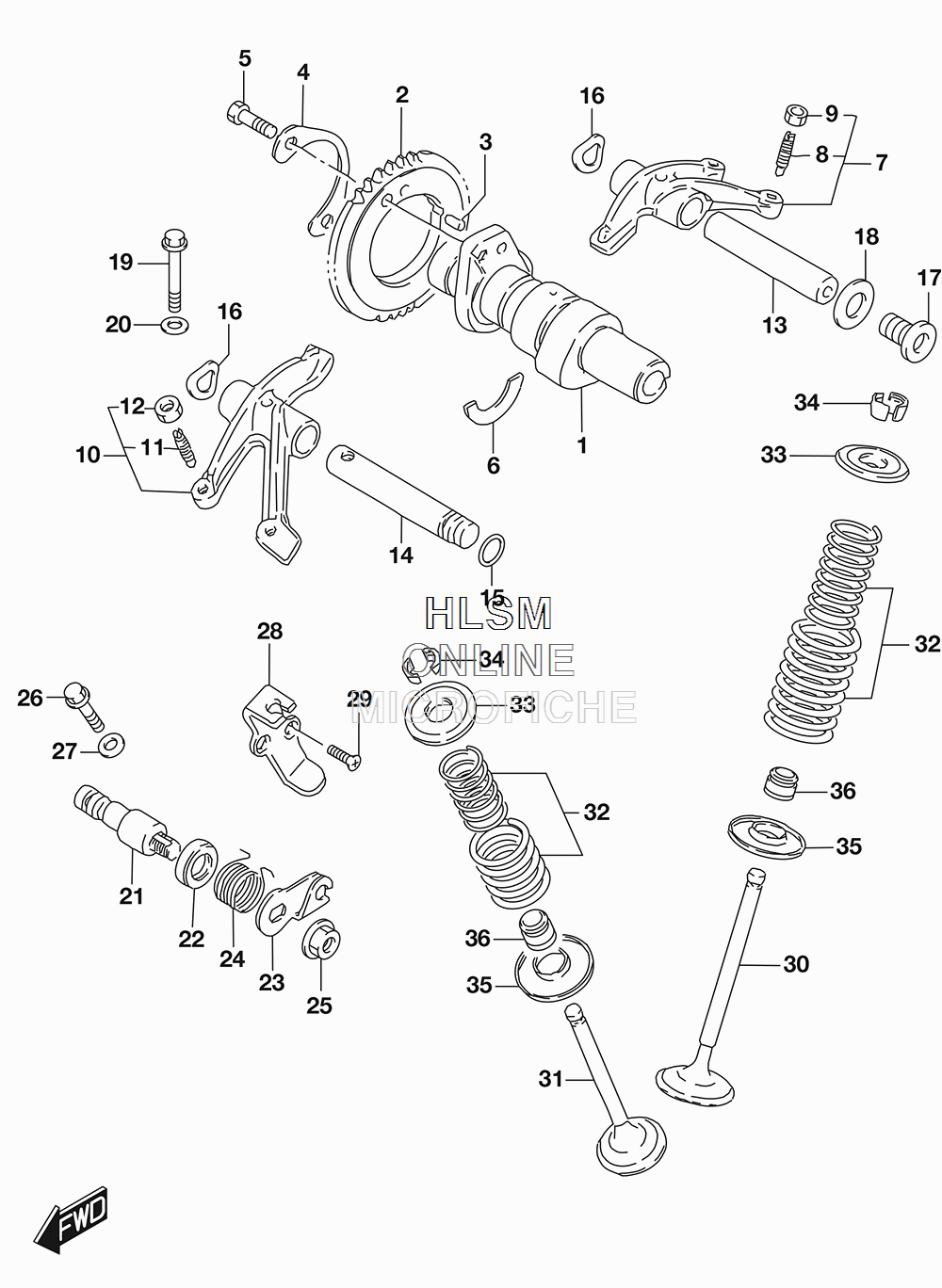

CAMSHAFT W/ VALVES для Suzuki LS650B S40 - 2017 года выпуска
-
№АртикулНазвание
-
112711-24B11 CAM SHAFTCAM SHAFT
-
212741-24B00 SPROCKET, CAM SHAFT (NT:38)SPROCKET, CAM SHAFT (NT:38)
-
309261-05009 PIN (5X12.9)PIN (5X12.9)
-
412747-44001 WASHER, SPROCKETWASHER, SPROCKET
-
509111-06053 BOLT (6X16)BOLT (6X16)
-
609390-25003 C-RINGC-RING
-
712840-24B10 ARM, INTAKE VALVE ROCKERARM, INTAKE VALVE ROCKER
-
812842-32411 ...SCREW, TAPPET ADJUSTING...SCREW, TAPPET ADJUSTING
-
912843-32400 ...NUT, TAPPET ADJUSTING...NUT, TAPPET ADJUSTING
-
1012850-24B10 ARM, EXHAUST VALVE ROCKERARM, EXHAUST VALVE ROCKER
-
1112842-32411 ...SCREW, TAPPET ADJUSTING...SCREW, TAPPET ADJUSTING
-
1212843-32400 ...NUT, TAPPET ADJUSTING...NUT, TAPPET ADJUSTING
-
1312861-12D00 SHAFT, INTAKE VALVE ROCKER AR (L:73)SHAFT, INTAKE VALVE ROCKER AR (L:73)
-
1412871-14A00 SHAFT, EXHAUST VALVE ROCKER ARM (L:78.5)SHAFT, EXHAUST VALVE ROCKER ARM (L:78.5)
-
1509280-09005 O RING (D:1.9,ID:8.6)O RING (D:1.9,ID:8.6)
-
1609164-12018 WASHERWASHER
-
1709248-14005 PLUG (14X12)PLUG (14X12)
-
1809168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1902162-0630B BOLTBOLT
-
2009168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
2112941-24B01 SHAFT, DECOMP (LH)SHAFT, DECOMP (LH)
-
2209282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
2312942-24B00 LEVER, DECOMP SHAFT (LH)LEVER, DECOMP SHAFT (LH)
-
2409448-17020 SPRING (LH)SPRING (LH)
-
2508316-1008B NUTNUT
-
2609103-06090 BOLT (6X16)BOLT (6X16)
-
2709168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
2812944-24B00 HOLDER, DECOMP CABLE (LH)HOLDER, DECOMP CABLE (LH)
-
2902122-0510A SCREWSCREW
-
3012911-24B01 VALVE, INTAKEVALVE, INTAKE
-
3112912-24B01 VALVE, EXHAUSTVALVE, EXHAUST
-
3212920-37402 SPRING SET, VALVESPRING SET, VALVE
-
3312931-45001 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
3412932-82000 COTTER, VALVECOTTER, VALVE
-
3512933-37400 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
3609289-07002 OIL SEAL (7X14.4X9)OIL SEAL (7X14.4X9)
