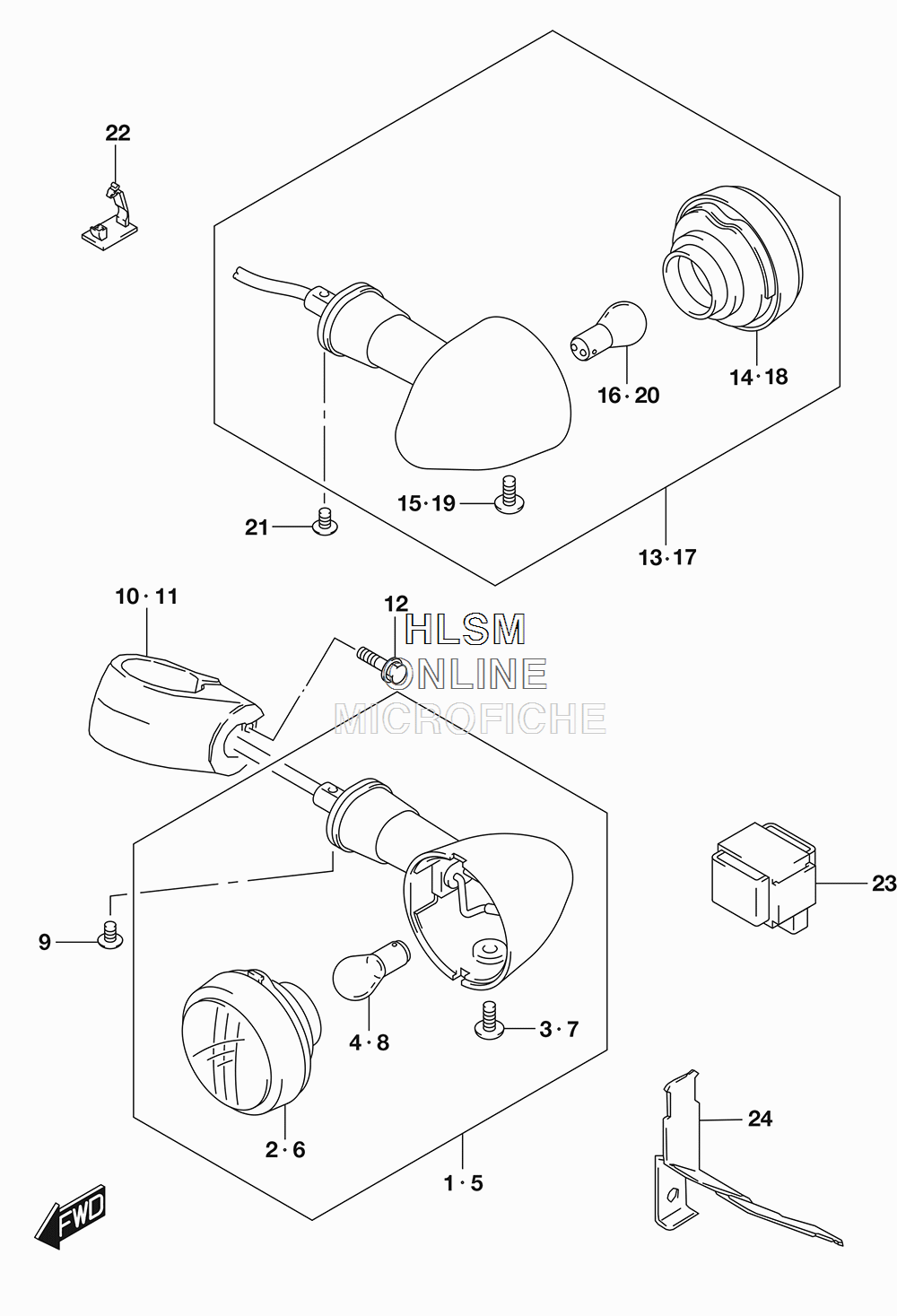

TURN SIGNAL ASSY. для Suzuki LS650B S40 - 2017 года выпуска
-
№АртикулНазвание
-
135601-38AD0 LAMP ASSY, FRONT TURNSIGNAL RIGHTLAMP ASSY, FRONT TURNSIGNAL RIGHT
-
235610-38AA0 ...LENS...LENS
-
335623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
409471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
535602-38AD0 LAMP ASSY, FRONT TURNSIGNAL LEFTLAMP ASSY, FRONT TURNSIGNAL LEFT
-
635630-38AA0 ...LENS...LENS
-
735623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
809471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
902142-0610A SCREWSCREW
-
1035671-24BB0 BRACKET, FRONT TURNSIGNAL LAM (RH)BRACKET, FRONT TURNSIGNAL LAM (RH)
-
1135681-24BB0 BRACKET, FRONT TURNSIGNAL LAM (LH)BRACKET, FRONT TURNSIGNAL LAM (LH)
-
1201547-0525A BOLTBOLT
-
1335603-38AA0 LAMP ASSY, REAR TURNSIGNAL (RH)LAMP ASSY, REAR TURNSIGNAL (RH)
-
1435630-38AE1 ...LENS...LENS
-
1535623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
1609471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1735604-38AA0 LAMP ASSY, REAR TURNSIGNAL (LH)LAMP ASSY, REAR TURNSIGNAL (LH)
-
1835610-38AE1 ...LENS...LENS
-
1935623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
2009471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
2102142-0616A SCREWSCREW
-
2209403-04310 CLAMPCLAMP
-
2338610-26E00 RELAY ASSY, TURN SIGNALRELAY ASSY, TURN SIGNAL
-
2438621-24B10 BRACKET, TURN SIGNAL RELAYBRACKET, TURN SIGNAL RELAY
