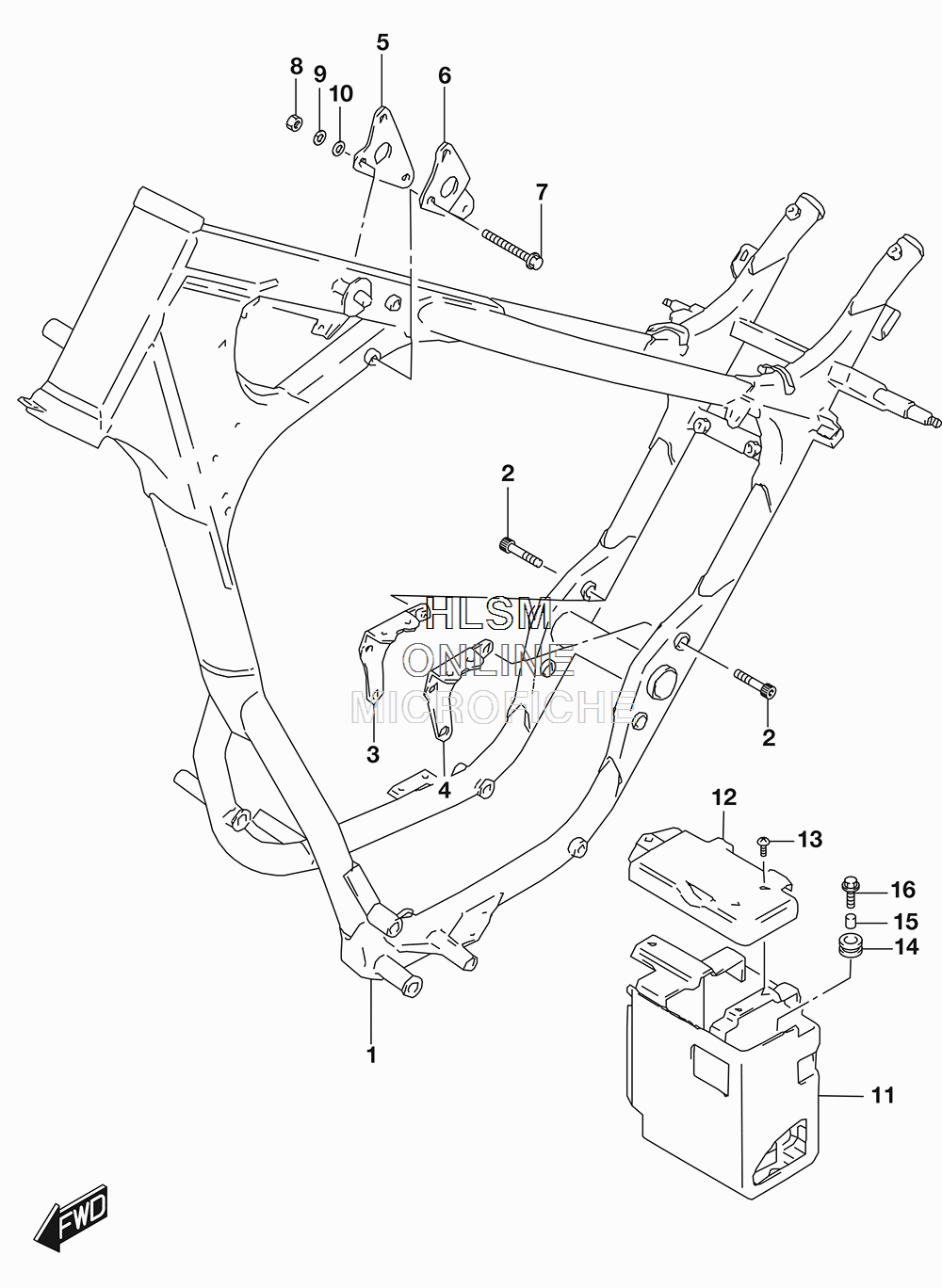

FRAME для Suzuki LS650B S40 - 2017 года выпуска
-
№АртикулНазвание
-
141100-24B11-019 FRAME (019 - BLACK)FRAME (019 - BLACK)
-
209106-08074 BOLT (8X40)BOLT (8X40)
-
341970-24B00-019 PLATE, ENGINE MOUNTING NO.4 (RH) (019 - BLACK)PLATE, ENGINE MOUNTING NO.4 (RH) (019 - BLACK)
-
441980-24B00-019 PLATE, ENGINE MOUNTING NO.4 (LH) (019 - BLACK)PLATE, ENGINE MOUNTING NO.4 (LH) (019 - BLACK)
-
541991-24B00-019 PLATE, ENGINE MOUNTING NO.5 (RH) (019 - BLACK)PLATE, ENGINE MOUNTING NO.5 (RH) (019 - BLACK)
-
641992-24B00-019 PLATE, ENGINE MOUNTING NO.5 (LH) (019 - BLACK)PLATE, ENGINE MOUNTING NO.5 (LH) (019 - BLACK)
-
709103-08279 BOLT (8X72)BOLT (8X72)
-
808319-2108A NUTNUT
-
908321-0108B LOCK WASHERLOCK WASHER
-
1008322-0108B WASHERWASHER
-
1141540-24B10 HOLDER, BATTERYHOLDER, BATTERY
-
1241576-24B10 COVER, BATTERYCOVER, BATTERY
-
1302142-04107 SCREWSCREW
-
1409320-08021 CUSHIONCUSHION
-
1509180-06260 SPACER (6.5X9X7.2)SPACER (6.5X9X7.2)
-
1609116-06010 BOLT (6X20)BOLT (6X20)
