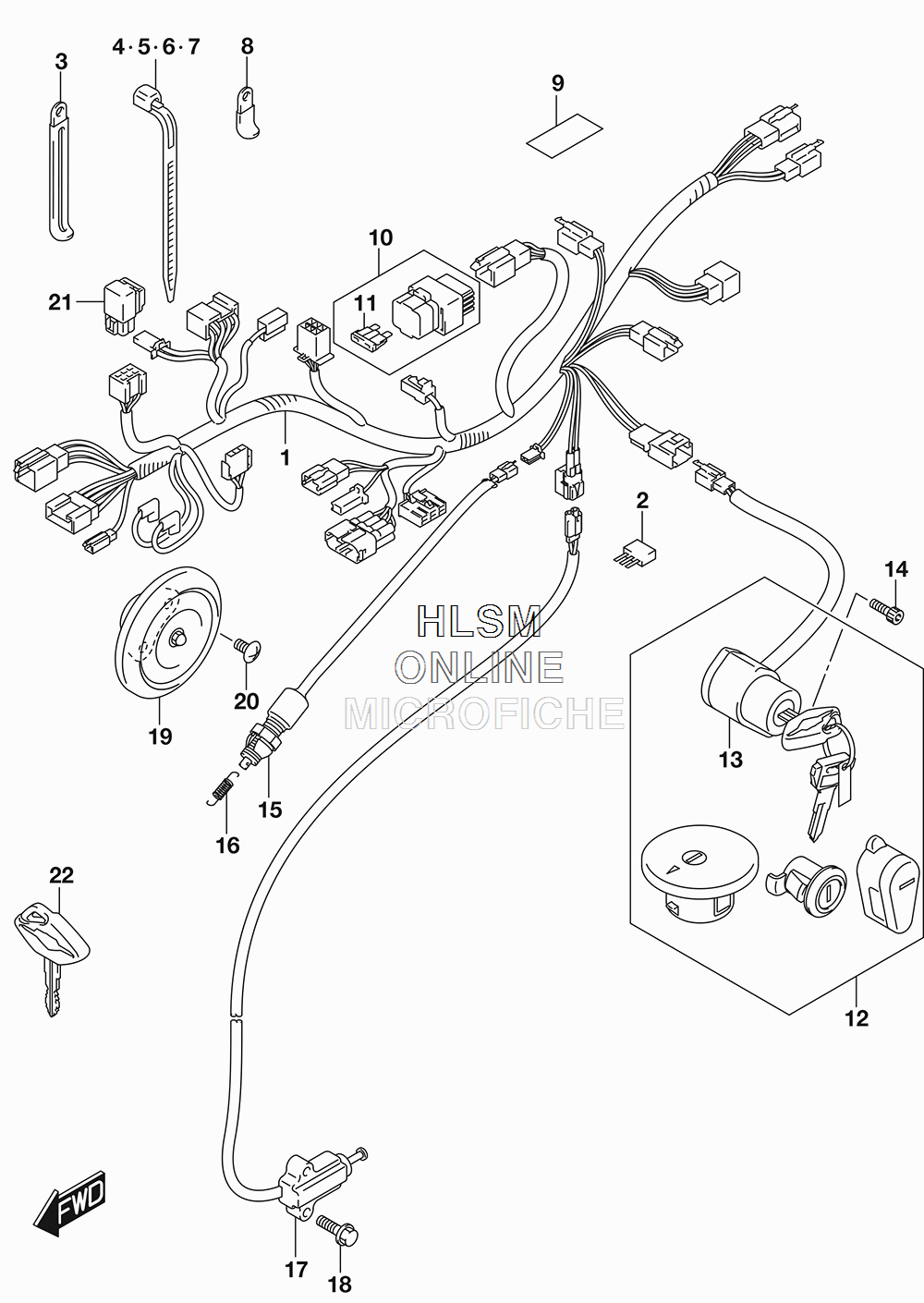

ELECTRICAL - WIRING HARNESS (CANADA) для Suzuki LS650B S40 - 2017 года выпуска
-
№АртикулНазвание
-
136610-24BD1 HARNESS, WIRINGHARNESS, WIRING
-
236611-38A10 ...DIODE...DIODE
-
309404-08419 CLAMP (L:80)CLAMP (L:80)
-
409407-11401 CLAMP (L:95)CLAMP (L:95)
-
509407-14403 CLAMP (L:125)CLAMP (L:125)
-
609407-18402 CLAMP (L:165)CLAMP (L:165)
-
709407-25401 CLAMP (L:235)CLAMP (L:235)
-
836651-24B10 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
936930-60A10 TAPE, WIRING HARNESSTAPE, WIRING HARNESS
-
1036740-24B01 FUSE ASSY, MAINFUSE ASSY, MAIN
-
1109481-20101 ...FUSE (20A)...FUSE (20A)
-
1237101-24850 LOCK SETLOCK SET
-
1337110-24B10 ...SWITCH ASSY, IGNITION...SWITCH ASSY, IGNITION
-
1407130-0516B BOLTBOLT
-
1537740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1609443-06077 SPRINGSPRING
-
1737840-12X50 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1801550-0620B BOLTBOLT
-
1938500-24B00 HORN ASSYHORN ASSY
-
2002142-0612B SCREWSCREW
-
2138740-24X50 RELAY ASSY, SIDE STAND WARINGRELAY ASSY, SIDE STAND WARING
-
22-137146-38B00 KEY, BLANK (TYPE C) (OPT)KEY, BLANK (TYPE C) (OPT)
-
22-237146-38B10 KEY, BLANK (TYPE D) (OPT)KEY, BLANK (TYPE D) (OPT)
-
22-337146-38B20 KEY, BLANK (TYPE E) (OPT)KEY, BLANK (TYPE E) (OPT)
-
22-437146-38B30 KEY, BLANK (TYPE F) (OPT)KEY, BLANK (TYPE F) (OPT)
