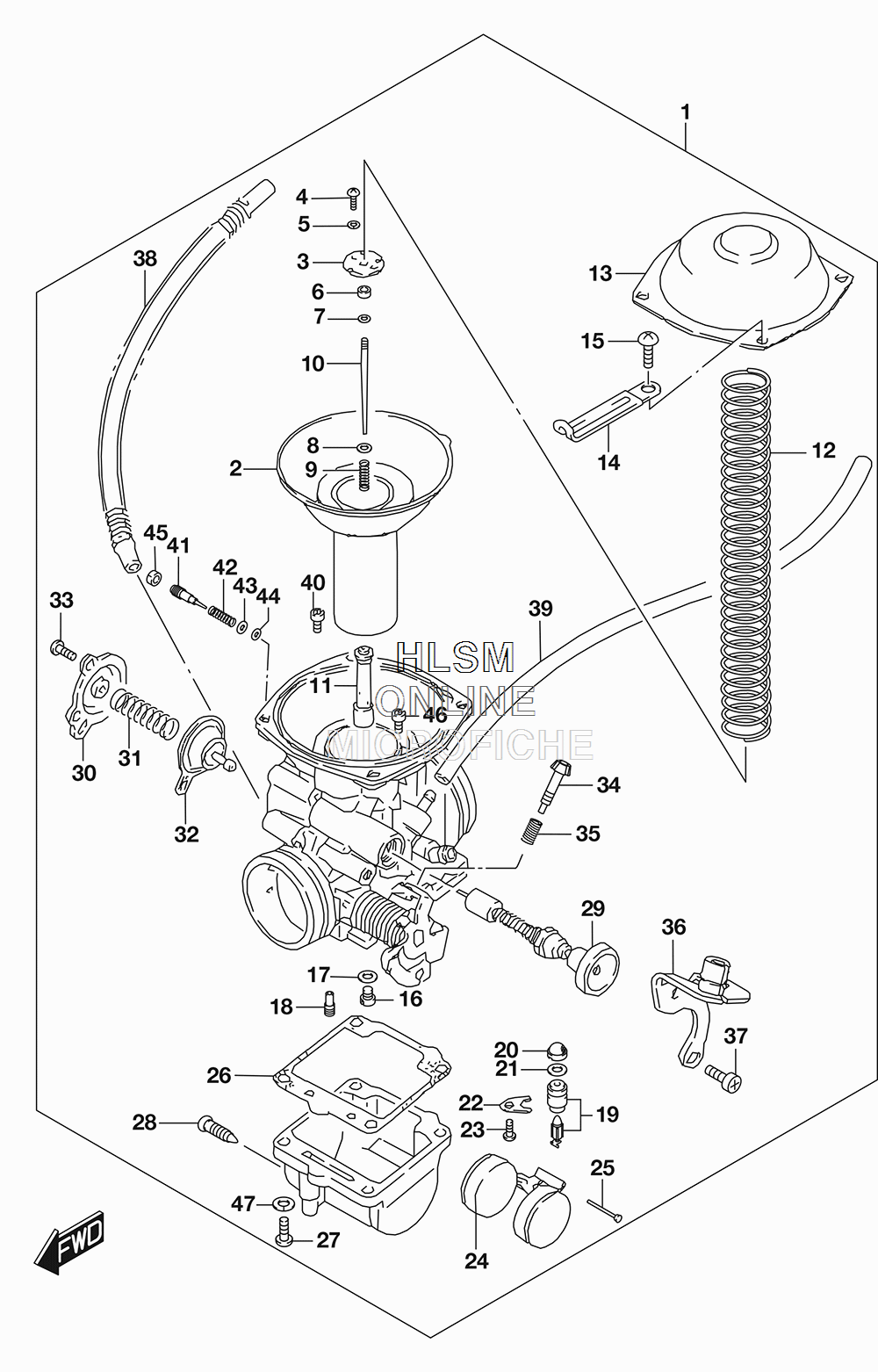

CARBURETOR (CALIF.) для Suzuki LS650B S40 - 2017 года выпуска
-
№АртикулНазвание
-
113200-24C51 CARBURETOR ASSYCARBURETOR ASSY
-
213500-24B40 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
313389-37400 ...PLATE...PLATE
-
402112-0306B ...SCREW...SCREW
-
508321-2103B ...LOCK WASHER...LOCK WASHER
-
613387-44030 ...RING...RING
-
713394-31210 ...CLIP NEEDLE...CLIP NEEDLE
-
813382-44030 ...WASHER...WASHER
-
913388-44030 ...SPRING...SPRING
-
1013383-24C40 ...NEEDLE, JET (5C17)...NEEDLE, JET (5C17)
-
1109494-00861 ...JET, NEEDLE (X-7M)...JET, NEEDLE (X-7M)
-
1213503-24B00 ...SPRING...SPRING
-
1313502-37400 ...COVER...COVER
-
1409404-06433 ...CLAMP (L:80)...CLAMP (L:80)
-
1502112-0510A ...SCREW...SCREW
-
1609491-29013 ...JET, MAIN (145)...JET, MAIN (145)
-
1713382-03110 ...WASHER...WASHER
-
1809492-52010 ...JET, PILOT (52.5)...JET, PILOT (52.5)
-
1913370-24C80 ...VALVE ASSY, NEEDLE...VALVE ASSY, NEEDLE
-
2013376-19F00 ...FILTER...FILTER
-
2113374-35C00 ...O RING...O RING
-
2213373-99E10 ...PLATE...PLATE
-
2302112-0406B ...SCREW...SCREW
-
2413250-37400 ...FLOAT...FLOAT
-
2513254-92311 ...PIN, FLOAT...PIN, FLOAT
-
2613251-38300 ...GASKET, FLOAT CHAMBER (ASB)...GASKET, FLOAT CHAMBER (ASB)
-
2702112-0516A ...SCREW...SCREW
-
2813247-13A00 ...SCREW, DRAIN...SCREW, DRAIN
-
2913411-24C00 ...PLUNGER ASSY...PLUNGER ASSY
-
3013484-38A10 ...COVER...COVER
-
3113481-24B00 ...SPRING...SPRING
-
3213480-05A10 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
3302112-0410A ...SCREW...SCREW
-
3413267-25D00 ...ADJUSTER...ADJUSTER
-
3513271-93011 ...SPRING...SPRING
-
3613621-24B01 ...BRACKET ASSY...BRACKET ASSY
-
3702112-0510A ...SCREW...SCREW
-
3813318-24C00 ...HOSE ASSY...HOSE ASSY
-
3909352-50823-600 ...HOSE (5X8.2X600) (L:600->250)...HOSE (5X8.2X600) (L:600->250)
-
4009491-46005 ...JET, PILOT (230)...JET, PILOT (230)
-
4113269-37400 ...SCREW, AIR...SCREW, AIR
-
4213268-47070 ...SPRING...SPRING
-
4313291-29900 ...WASHER...WASHER
-
4413295-29900 ...O RING...O RING
-
4513281-05A00 ...PLUG...PLUG
-
4609491-45002 ...JET (#45)...JET (#45)
-
4708321-0105A ...LOCK WASHER...LOCK WASHER
