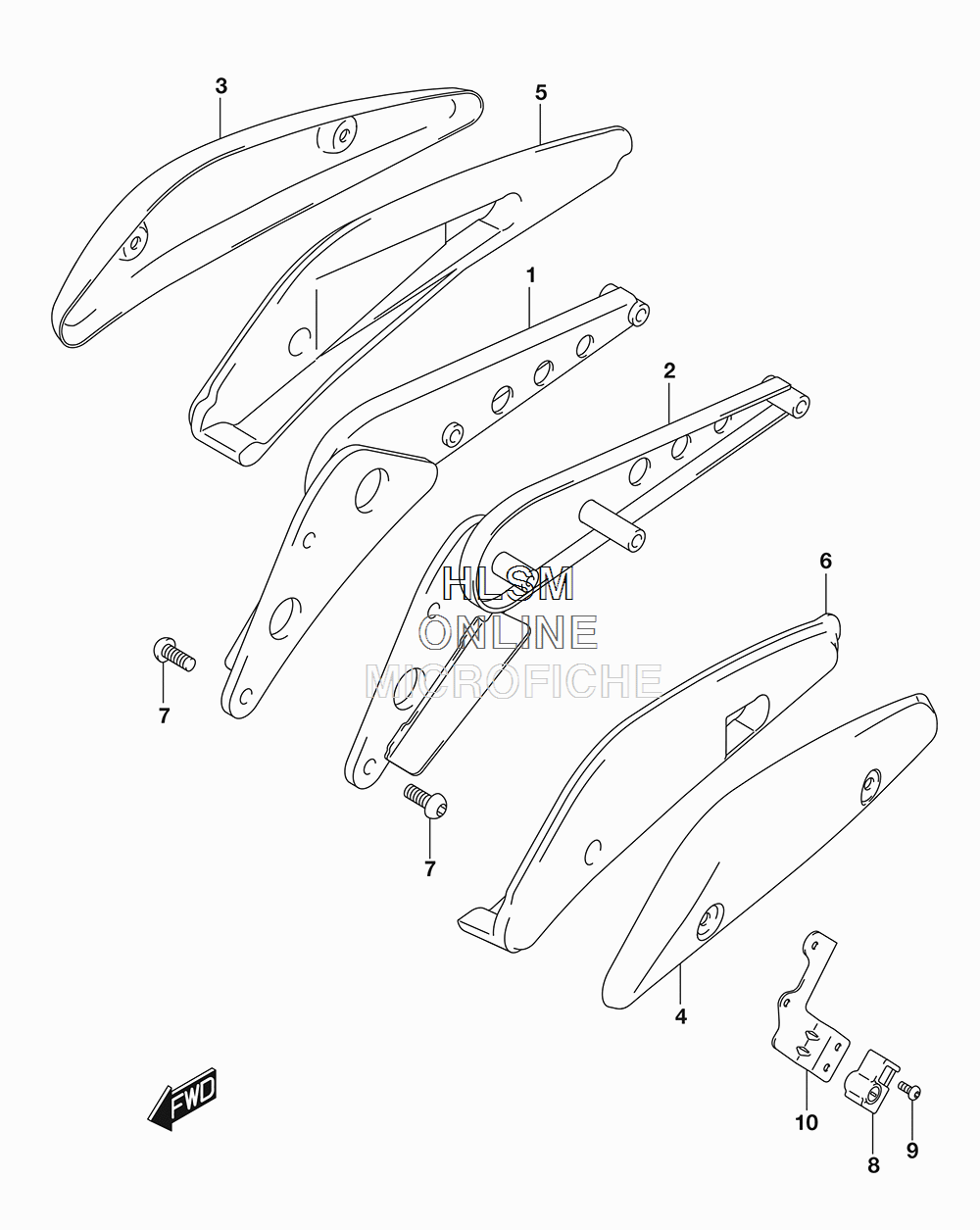

FRAME HANDLE GRIP (CANADA) для Suzuki VZR 1800 M109R B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
141610-48G10 GRIP, FRAME HANDLE (RH)GRIP, FRAME HANDLE (RH)
-
241620-48G10 GRIP, FRAME HANDLE (LH)GRIP, FRAME HANDLE (LH)
-
341616-48G10 PLATE, (RH)PLATE, (RH)
-
441626-48G10 PLATE, (LH)PLATE, (LH)
-
541615-48G10 RUBBER, (RH)RUBBER, (RH)
-
641625-48G10 RUBBER, (LH)RUBBER, (LH)
-
709139-10003 BOLT (10X25)BOLT (10X25)
-
895700-41821 LOCK SET, HELMETLOCK SET, HELMET
-
909139-06089 SCREW (6X14)SCREW (6X14)
-
1095710-48G00 BRACKET, HELMET LOCKBRACKET, HELMET LOCK
