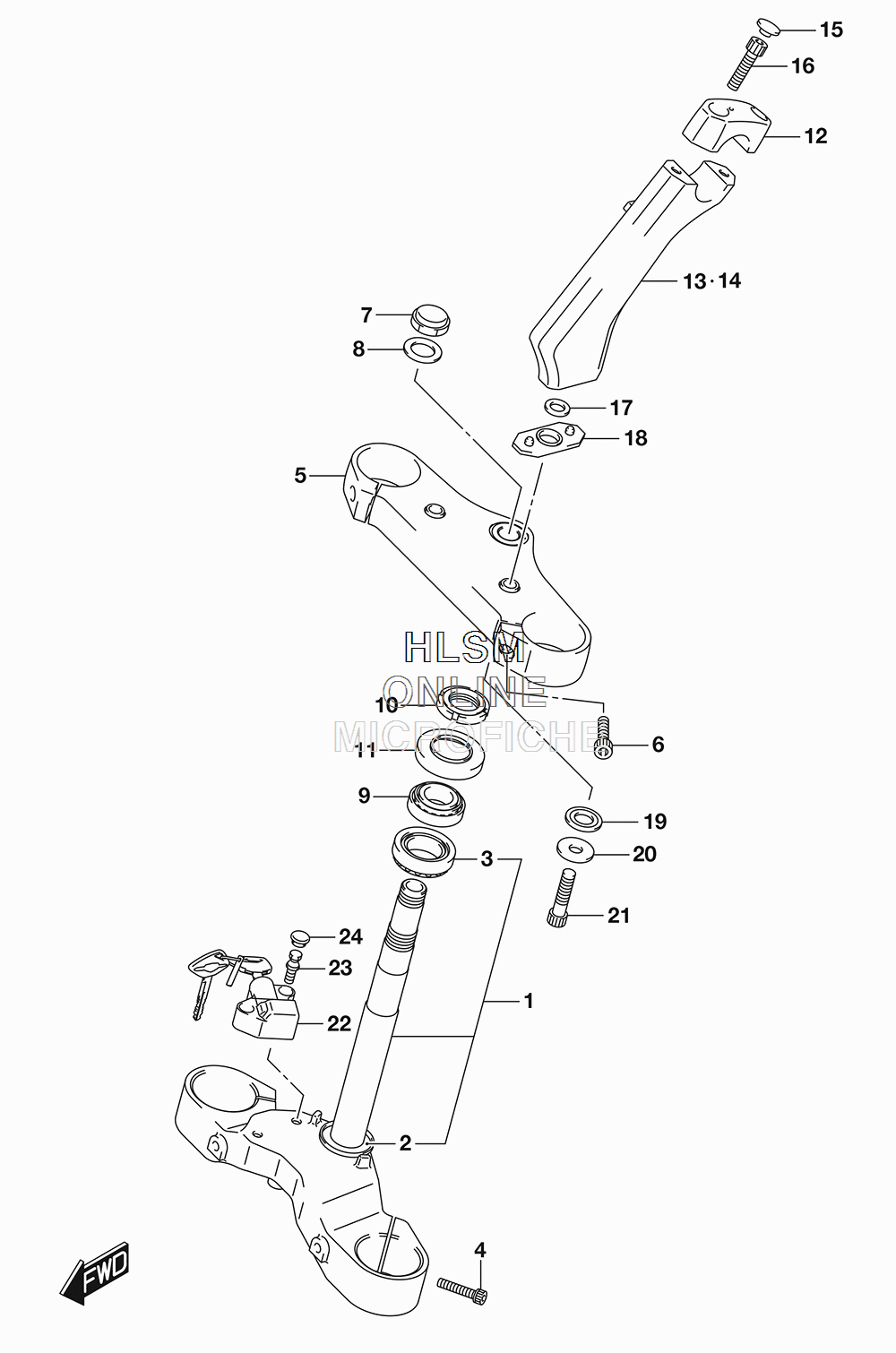

STEERING STEM (CANADA) для Suzuki VZR 1800 M109R B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
151410-48G00 BRACKET, UNDERBRACKET, UNDER
-
251644-12C00 ...SEAL, STEERING LOWER...SEAL, STEERING LOWER
-
309265-30020 ...BEARING (30X55X17)...BEARING (30X55X17)
-
451328-44G10 BOLTBOLT
-
551311-48G20 BRACKET, UPPERBRACKET, UPPER
-
651321-44G10 BOLTBOLT
-
751353-24B00 NUT, STEMNUT, STEM
-
851356-10D03 WASHERWASHER
-
909265-25038 BEARING (25X47X15)BEARING (25X47X15)
-
1051631-31F00 NUT, STEERING STEMNUT, STEERING STEM
-
1151643-40502 DUST SEAL, STEERING UPPERDUST SEAL, STEERING UPPER
-
1256211-48G10 HOLDER, HANDLEHOLDER, HANDLE
-
1356224-48G20 HOLDER, HANDLE (RH)HOLDER, HANDLE (RH)
-
1456225-48G20 HOLDER, HANDLE (LH)HOLDER, HANDLE (LH)
-
1509250-06009 CAP (OD:14.5)CAP (OD:14.5)
-
1651328-44G10 BOLTBOLT
-
1751354-48G00 WASHERWASHER
-
1856245-48G00 RUBBER, HANDLE HOLDERRUBBER, HANDLE HOLDER
-
1956245-39G20 RUBBER, HANDLE LOWERRUBBER, HANDLE LOWER
-
2051355-48G00 WASHERWASHER
-
2151226-48G00 BOLTBOLT
-
2251900-48810 LOCK SET, STEERINGLOCK SET, STEERING
-
2351925-48G00 SCREW, STEERING LOCKSCREW, STEERING LOCK
-
2451926-48G00 PLUG, STEERING LOCKPLUG, STEERING LOCK
