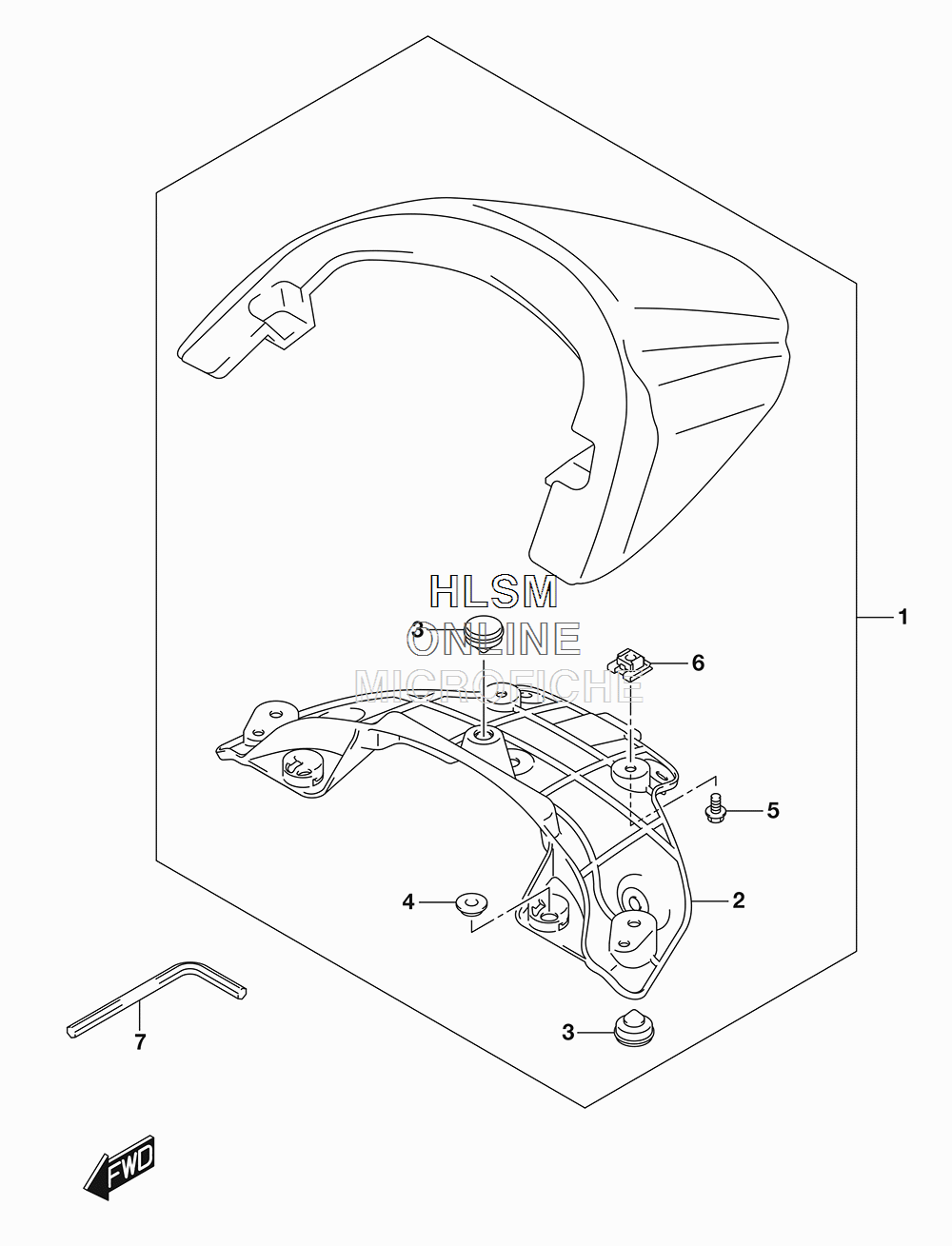

SEAT TAIL BOX (CANADA) для Suzuki VZR 1800 M109R B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
145550-48G00-YVB BOX, SEAT TAIL (YVB - BLACK)BOX, SEAT TAIL (YVB - BLACK)
-
245552-48G00 ...BOTTOM, SEAT TAIL BOX...BOTTOM, SEAT TAIL BOX
-
345148-16700 ...CUSHION...CUSHION
-
445553-48G00 ...COLLAR...COLLAR
-
501550-0612B ...BOLT...BOLT
-
609148-06018 ...NUT...NUT
-
709816-00059 HEXAGON SPANNER, 5HEXAGON SPANNER, 5
