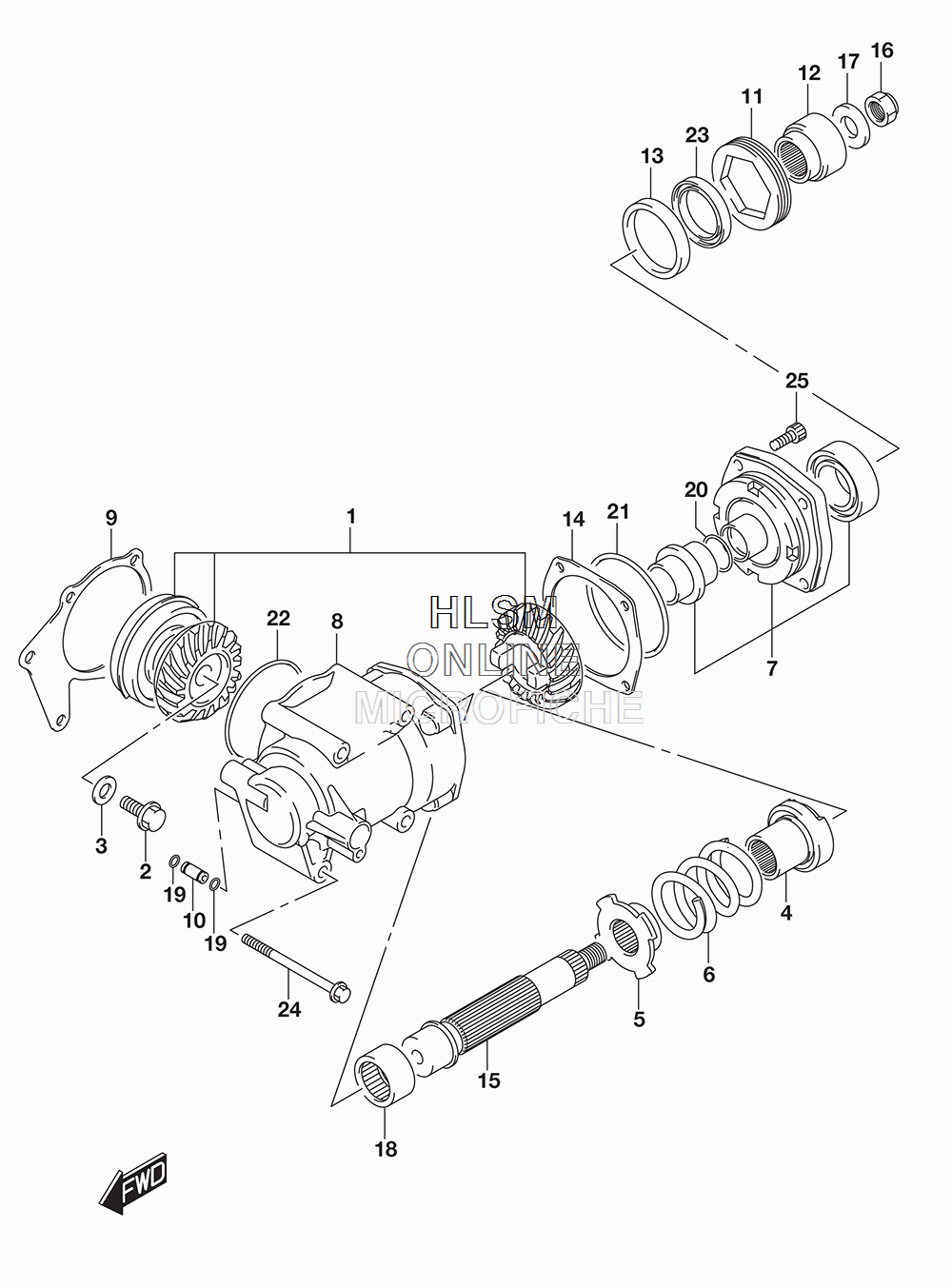

SECONDARY DRIVE GEAR для Suzuki VZR 1800 M109R B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
124910-48830 GEAR SET, SECONDARYGEAR SET, SECONDARY
-
209103-12084 BOLT (12X24)BOLT (12X24)
-
309160-12045 WASHER (12X35X2)WASHER (12X35X2)
-
424923-48G10 DOG, OUTPUT CAMDOG, OUTPUT CAM
-
524924-48G10 STOPPER, CAM SPRINGSTOPPER, CAM SPRING
-
624925-48G00 SPRING, SECONDARY DAMPERSPRING, SECONDARY DAMPER
-
724926-48830 STOPPER SECONDARY SET, DRIVENSTOPPER SECONDARY SET, DRIVEN
-
824931-48G30 CASE, SECONDARY GEARCASE, SECONDARY GEAR
-
924935-48810 SHIM SET, DRIVE (T:0.40/0.45/0.50/0.55/0.60/ 0.65/0.70/0.75/0.80)SHIM SET, DRIVE (T:0.40/0.45/0.50/0.55/0.60/ 0.65/0.70/0.75/0.80)
-
1024940-26D00 PIPE, SECONDARY GEAR CASE OILPIPE, SECONDARY GEAR CASE OIL
-
1124942-26D00 STOPPER, SECONDARY DRIVENSTOPPER, SECONDARY DRIVEN
-
1224943-48G01 COUPLING, SECONDARY DRIVENCOUPLING, SECONDARY DRIVEN
-
1324944-48G00 HOUSING, OIL SEALHOUSING, OIL SEAL
-
1424945-48810 SHIM SET, SECONDARY DRIVEN (T:0.30/0.35/0.40/0.50/0.60)SHIM SET, SECONDARY DRIVEN (T:0.30/0.35/0.40/0.50/0.60)
-
1524961-48G00 SHAFT, SECONDARY DRIVEN BEVELSHAFT, SECONDARY DRIVEN BEVEL
-
1609159-16003 NUTNUT
-
1709160-16040 WASHER (16.5X36X4)WASHER (16.5X36X4)
-
1809263-32012 BEARING (32X48X22)BEARING (32X48X22)
-
1909280-06008 O RING (D:1.7,ID:6)O RING (D:1.7,ID:6)
-
2009280-24010 O RING (D:2.4,ID:23.7)O RING (D:2.4,ID:23.7)
-
2109280-78003 O RING (D:3.7,ID:76.5)O RING (D:3.7,ID:76.5)
-
2209280-92003 O RING (D:2.4,ID:90.8)O RING (D:2.4,ID:90.8)
-
2309283-38011 OIL SEAL (38X54X6)OIL SEAL (38X54X6)
-
2401550-0895A BOLTBOLT
-
2509106-10087 BOLT (10X30)BOLT (10X30)
