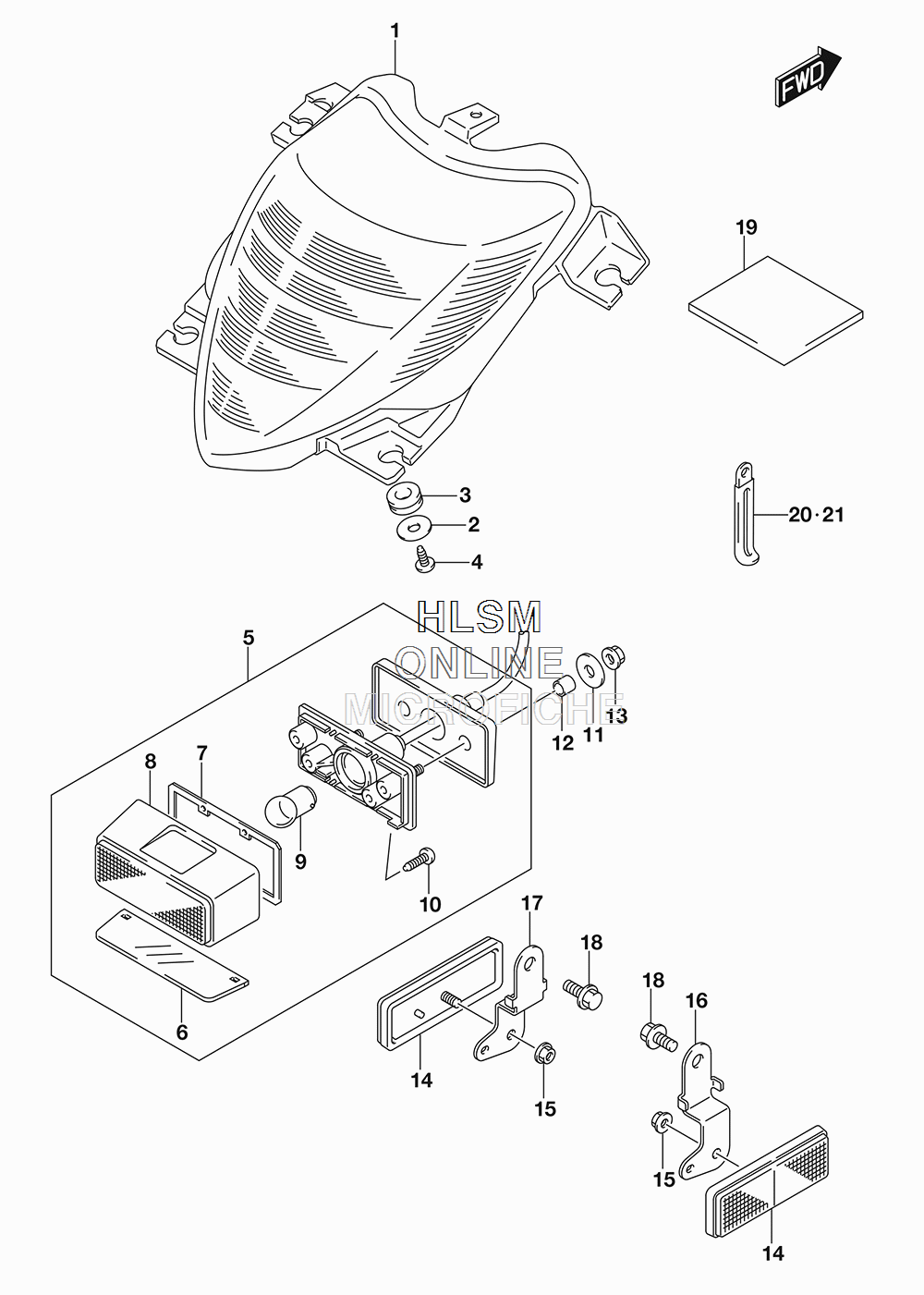

REAR COMBINATION LAMP (CANADA) для Suzuki VZR 1800 M109R B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
135710-48G50 LAMP ASSY, REAR COMBLAMP ASSY, REAR COMB
-
209160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
309320-10054 CUSHIONCUSHION
-
403541-0512A SCREWSCREW
-
535910-41G02 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
635912-41G01 ...LENS, LICENSE...LENS, LICENSE
-
735913-41G00 ...GASKET...GASKET
-
835917-41G00 ...COVER, LICENSE LAMP...COVER, LICENSE LAMP
-
909471-12140 ...BULB (12V,5W)...BULB (12V,5W)
-
1003211-0416A ...SCREW...SCREW
-
1109160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1209180-06261 SPACER (6.5X9X8)SPACER (6.5X9X8)
-
1308316-1006A NUTNUT
-
1435970-07F01 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
1508316-1005A NUTNUT
-
1635975-48G00 BRACKET, REAR SIDE RR (RH)BRACKET, REAR SIDE RR (RH)
-
1735976-48G00 BRACKET, REAR SIDE RR (LH)BRACKET, REAR SIDE RR (LH)
-
1802162-0612A SCREWSCREW
-
1992213-33G00 CUSHION, HELMET BOXCUSHION, HELMET BOX
-
2009404-06429 CLAMP (L:45)CLAMP (L:45)
-
2109404-10415 CLAMP (L:45)CLAMP (L:45)
