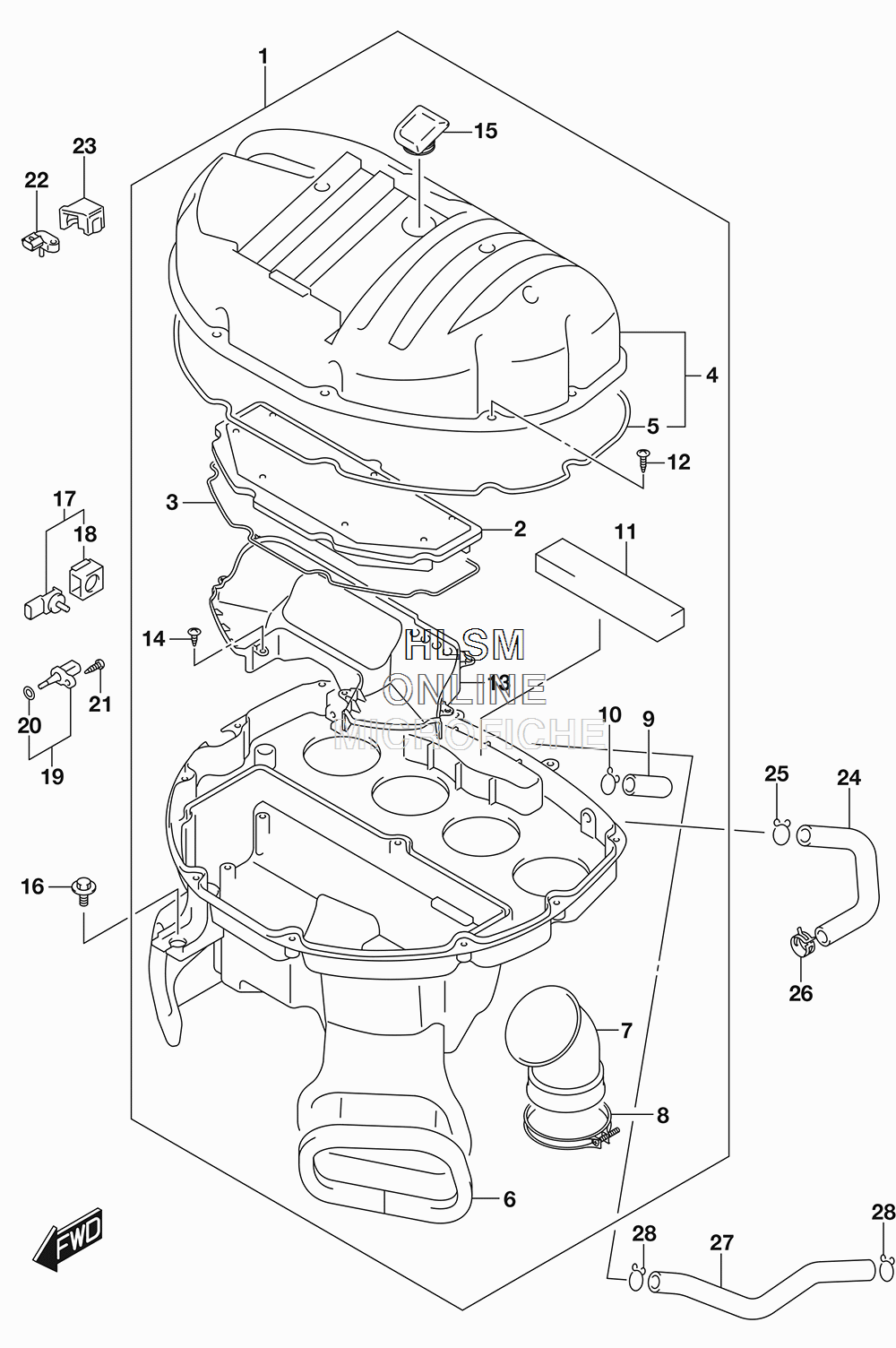

AIR CLEANER для Suzuki GSX-S1000F ABS L8 - 2018 года выпуска
-
№АртикулНазвание
-
113700-04K00 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-47H10 ...FILTER ASSY...FILTER ASSY
-
313756-47H00 ...GASKET, CASE...GASKET, CASE
-
413740-04K00 ...CAP, AIR CLEANER...CAP, AIR CLEANER
-
513746-01H00 ......GASKET, CAP......GASKET, CAP
-
613736-04K00 ...CUSHION, DUCT...CUSHION, DUCT
-
713881-04K00 ...TUBE, OUTLET...TUBE, OUTLET
-
813827-40H01 ...CLAMP, INTAKE PIPE...CLAMP, INTAKE PIPE
-
913878-09F00 ...PLUG, DRAIN...PLUG, DRAIN
-
1009401-14101 ...CLIP...CLIP
-
1113788-04K00 ...FILTER, BREATHER...FILTER, BREATHER
-
1203541-0520A ...SCREW...SCREW
-
1313723-04K00 ...SEPARATOR, AIR CLEANER...SEPARATOR, AIR CLEANER
-
1403541-0412A ...SCREW...SCREW
-
1513744-04K00 ...PLUG...PLUG
-
1609111-06089 BOLT (6X16)BOLT (6X16)
-
1715630-29G40 SENSOR, BOOSTSENSOR, BOOST
-
1815625-29G40 ...COVER...COVER
-
1913650-41F10 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2013655-41F10 ...O RING...O RING
-
2103511-0516A SCREWSCREW
-
2218590-18K00 SENSOR, AIR PRESSURESENSOR, AIR PRESSURE
-
2318595-04K00 HOLDER, SENSORHOLDER, SENSOR
-
2413697-04K00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2509401-15101 CLIPCLIP
-
2609401-16407 CLIPCLIP
-
2713853-04K00 HOSE, BREATHERHOSE, BREATHER
-
2809401-14101 CLIPCLIP
