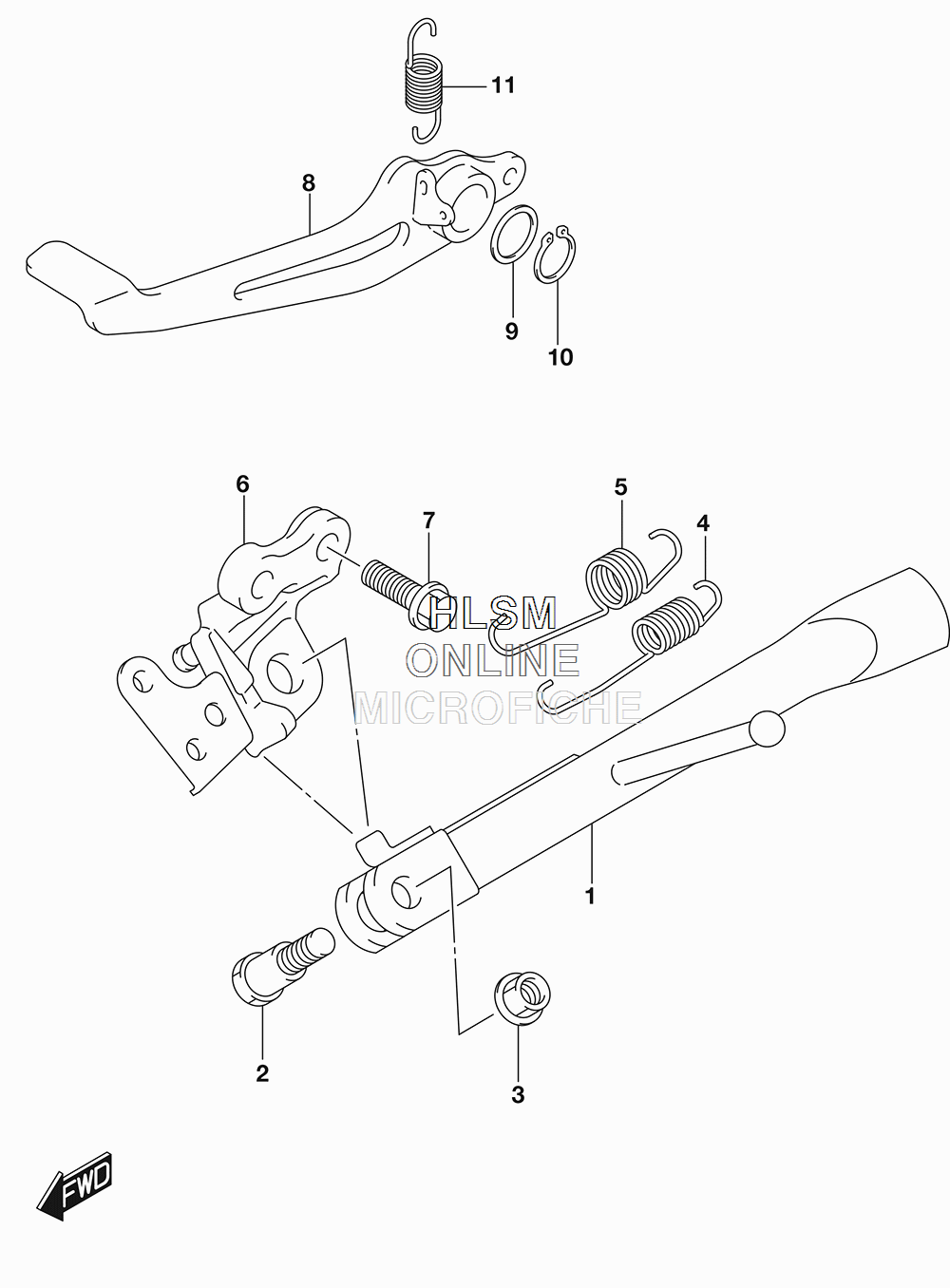

BRAKE PEDAL W/ STAND для Suzuki GSX-S1000F ABS L8 - 2018 года выпуска
-
№АртикулНазвание
-
142310-04K10 STAND, PROPSTAND, PROP
-
209111-10059 BOLT (10X21)BOLT (10X21)
-
308319-3110A NUTNUT
-
409443-14058 SPRING (INNER)SPRING (INNER)
-
509443-19011 SPRING (OUTER)SPRING (OUTER)
-
642330-04K00 BRACKET, PROP STANDBRACKET, PROP STAND
-
709103-10366 BOLT (10X30)BOLT (10X30)
-
843110-04K10 PEDAL, BRAKEPEDAL, BRAKE
-
909160-18022 WASHER (18X24X1)WASHER (18X24X1)
-
1008331-3118A CIRCLIPCIRCLIP
-
1109443-13032 SPRINGSPRING
