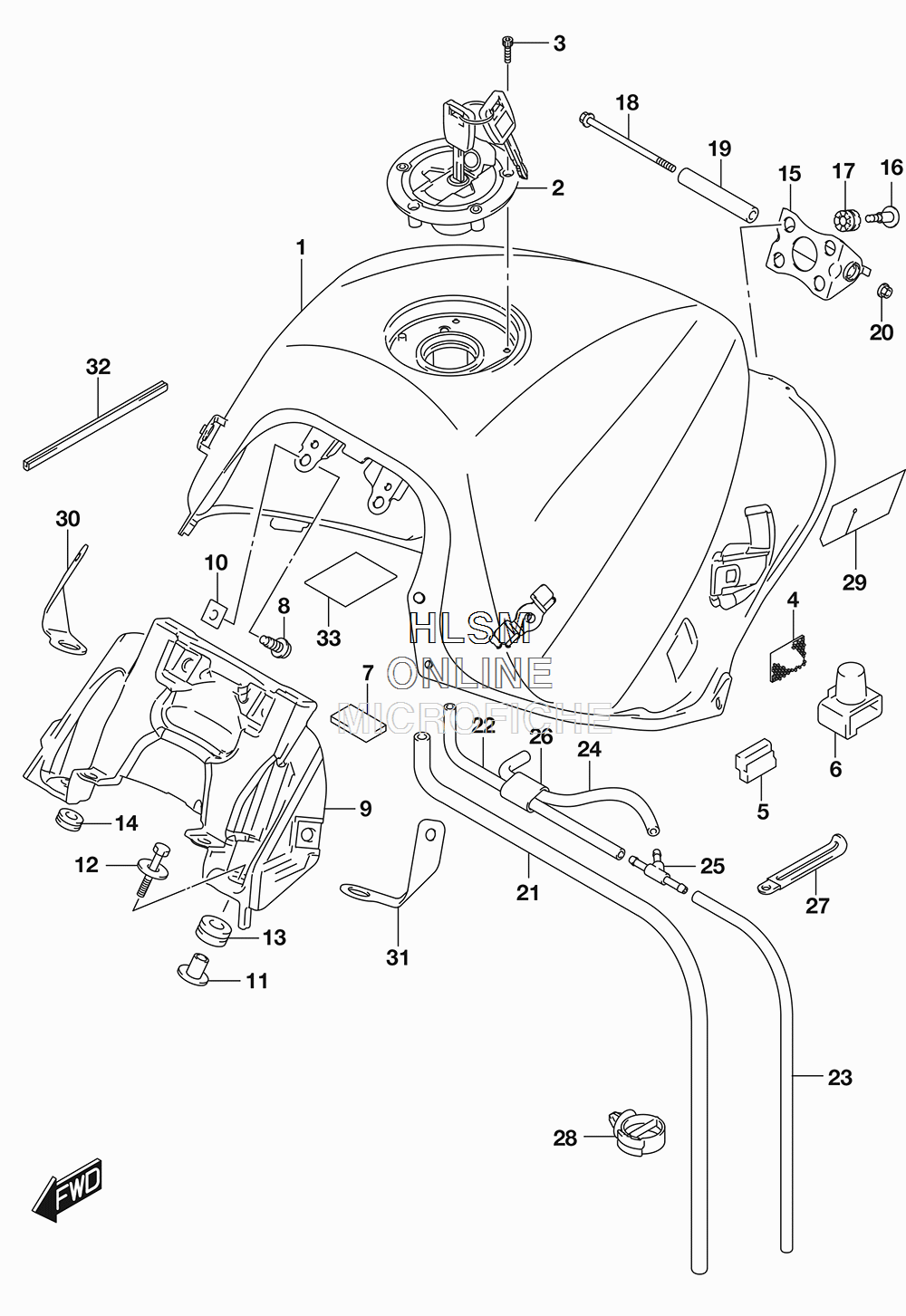

FUEL TANK (CANADA) для Suzuki GSX-S1000F ABS L8 - 2018 года выпуска
-
№АртикулНазвание
-
1-144100-04K40-YVB TANK ASSY, FUEL (YVB - BLACK FOR AV4, KEL)TANK ASSY, FUEL (YVB - BLACK FOR AV4, KEL)
-
1-244100-04K40-YWW TANK ASSY, FUEL (FOR YWW)TANK ASSY, FUEL (FOR YWW)
-
244200-17820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
344244-11J00 BOLTBOLT
-
444572-13G00 FASTENERFASTENER
-
544541-41G00 CUSHION, SIDECUSHION, SIDE
-
644542-04K00 CUSHION, REARCUSHION, REAR
-
733652-21G10 CUSHION, FUEL TANK INNERCUSHION, FUEL TANK INNER
-
844543-04K00 SCREW, BRACKET FRONTSCREW, BRACKET FRONT
-
944521-04K00 BRACKET, FUEL TANK FRONTBRACKET, FUEL TANK FRONT
-
1044523-47H00 NUTNUT
-
1144512-04K00 SPACER, FUEL TANK FRONTSPACER, FUEL TANK FRONT
-
1209116-06172 BOLT (6X30)BOLT (6X30)
-
1309320-10050 CUSHIONCUSHION
-
1409320-06504 CUSHIONCUSHION
-
1544530-04K00 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
1609139-06203 SCREW (6X24)SCREW (6X24)
-
1709320-08089 CUSHIONCUSHION
-
1809103-06060 BOLT (6X100)BOLT (6X100)
-
1944561-18G00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
2009159-06076 NUTNUT
-
2144423-04K00 HOSE, DRAIN NO.1HOSE, DRAIN NO.1
-
2244424-04K00 HOSE, BREATHER NO.1HOSE, BREATHER NO.1
-
2309352-50823-600 HOSE (5X8.2X600) (L:600->530)HOSE (5X8.2X600) (L:600->530)
-
2444424-15H10 HOSE, BREATHER NO.3HOSE, BREATHER NO.3
-
2509367-06007 3 WAY3 WAY
-
2609352-12163-600 HOSE (12X16X600) (L:600->10 )HOSE (12X16X600) (L:600->10 )
-
2709404-06433 CLAMP (L:80)CLAMP (L:80)
-
2809403-20307 CLAMPCLAMP
-
2944283-06J00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
3044561-04K00 BRACKET, FUEL TANK FRONT, (RH)BRACKET, FUEL TANK FRONT, (RH)
-
3144571-04K00 BRACKET, FUEL TANK FRONT, (LH)BRACKET, FUEL TANK FRONT, (LH)
-
3244552-24B00 MOLDING, FUEL TANK, REARMOLDING, FUEL TANK, REAR
-
3344281-04K00 CUSHION, FUEL TANKCUSHION, FUEL TANK
