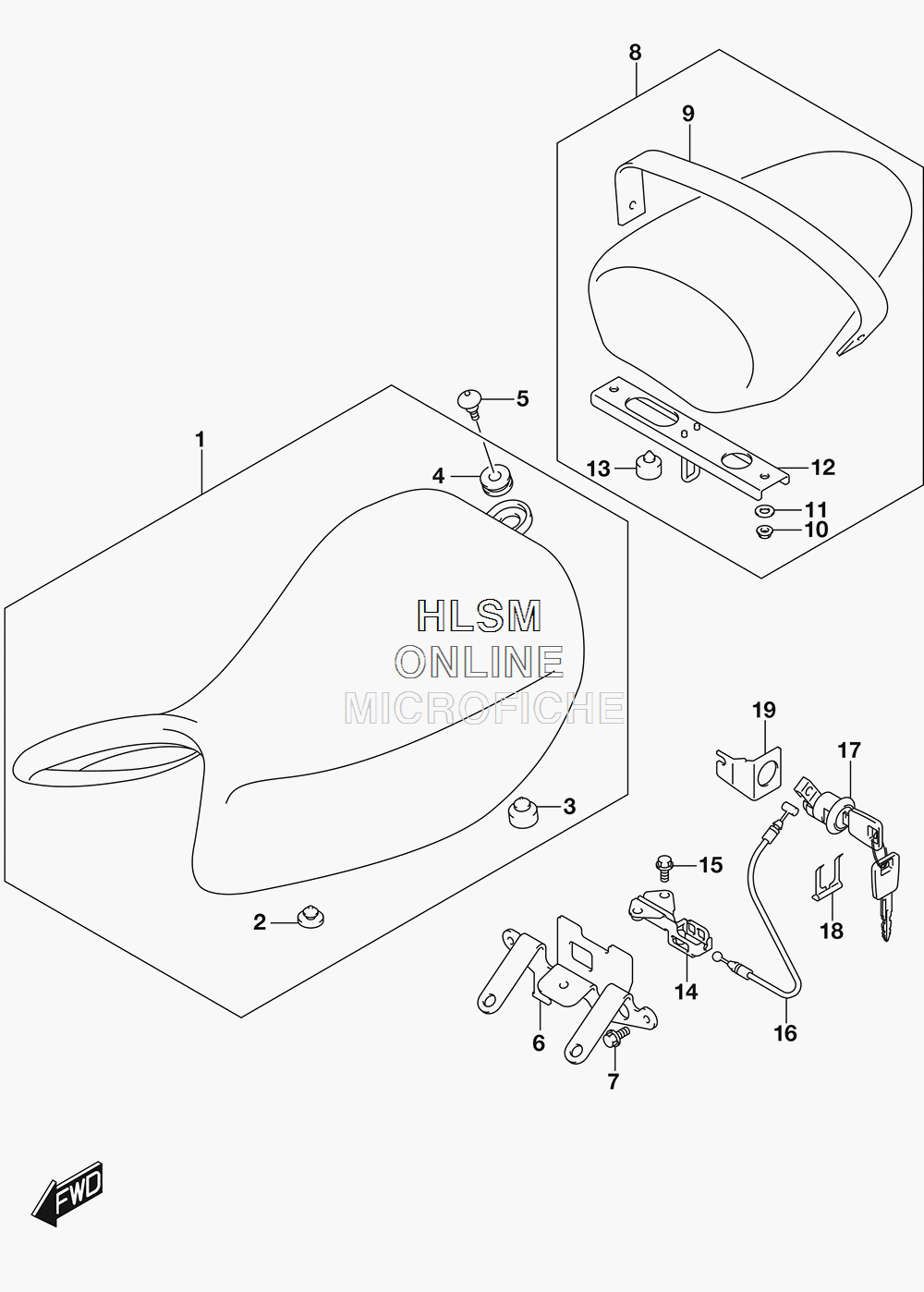

SEAT для Suzuki GSX-S1000F ABS L8 - 2018 года выпуска
-
№АртикулНазвание
-
145100-04K00-DW2 SEAT ASSY (DW2 - BLACK)SEAT ASSY (DW2 - BLACK)
-
209329-10001 ...CUSHION...CUSHION
-
309321-10011 ...CUSHION...CUSHION
-
445148-04K00 ...CUSHION...CUSHION
-
509139-06193 SCREW (6X20)SCREW (6X20)
-
645120-04K10 BRACKET, SEATBRACKET, SEAT
-
701550-0612A BOLTBOLT
-
845300-04K00-DW2 SEAT ASSY, PILLION (DW2 - BLACK)SEAT ASSY, PILLION (DW2 - BLACK)
-
945380-04K00-P3H ...BAND ASSY, SEAT (P3H - BLACK)...BAND ASSY, SEAT (P3H - BLACK)
-
1008316-1006A ...NUT...NUT
-
1109160-06129 ...WASHER (6.5X16X1)...WASHER (6.5X16X1)
-
1245291-04K00 ...PLATE, SEAT LOCK...PLATE, SEAT LOCK
-
1345148-20G00 ...CUSHION...CUSHION
-
1445220-04K00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1501550-0612A BOLTBOLT
-
1645280-04K00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1795700-14F00 LOCK SET, SEATLOCK SET, SEAT
-
1845289-11F00 PLATE, SEAT LOCK ASSYPLATE, SEAT LOCK ASSY
-
1945288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
