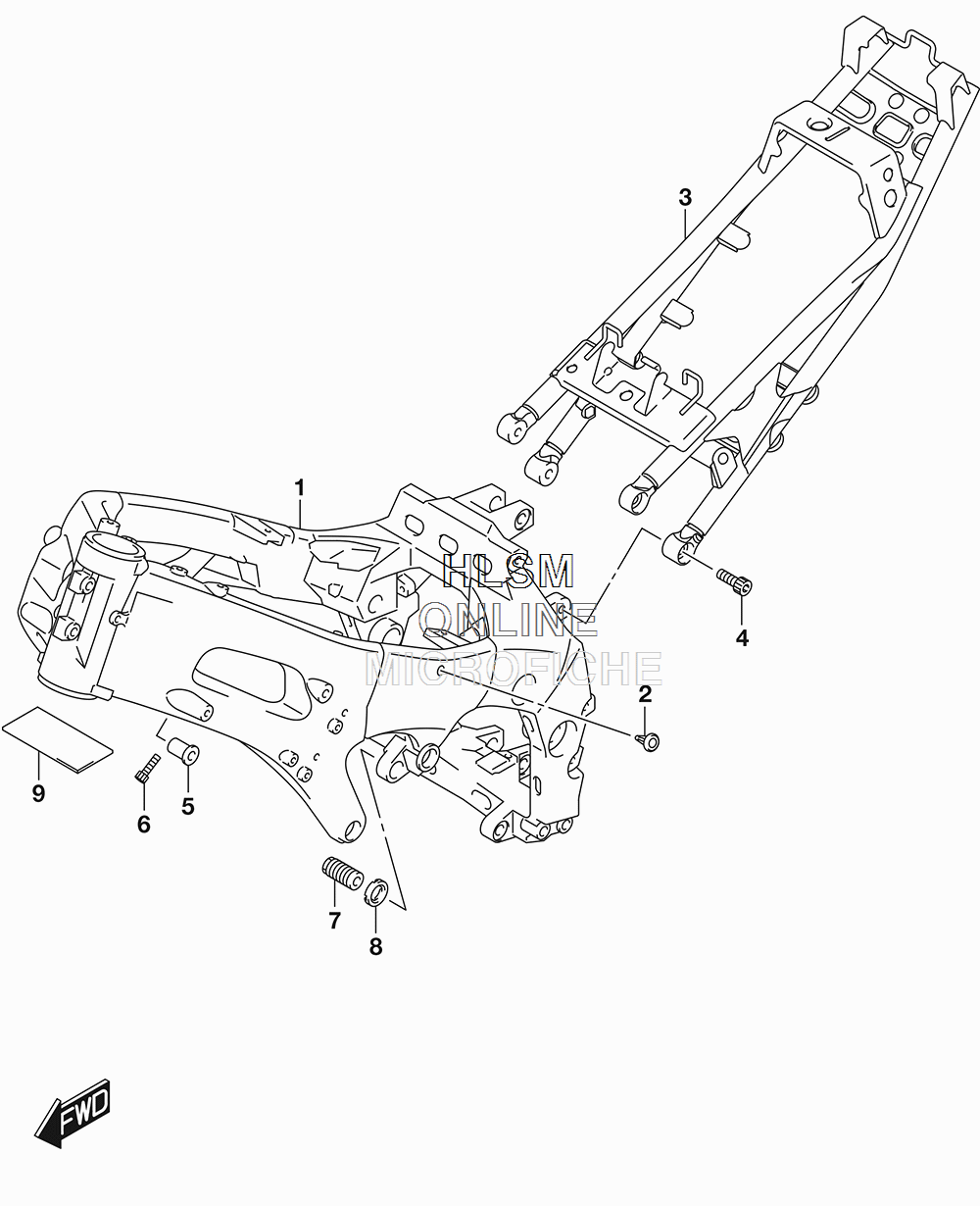

FRAME для Suzuki GSX-S1000F ABS L8 - 2018 года выпуска
-
№АртикулНазвание
-
141100-04K00-YAP FRAME (YAP - BLACK)FRAME (YAP - BLACK)
-
243585-01H01 PLUG, TANK RAILPLUG, TANK RAIL
-
341200-04K10-YAP RAIL, SEAT (YAP - BLACK)RAIL, SEAT (YAP - BLACK)
-
407120-1030B BOLTBOLT
-
541911-40F01 SPACERSPACER
-
609106-08185 BOLT (8X32)BOLT (8X32)
-
741921-16G00 BOLT, CRANKCASE ADJUSTBOLT, CRANKCASE ADJUST
-
841922-33E20 NUTNUT
-
941139-21H10 CUSHION, FRAME HEADCUSHION, FRAME HEAD
