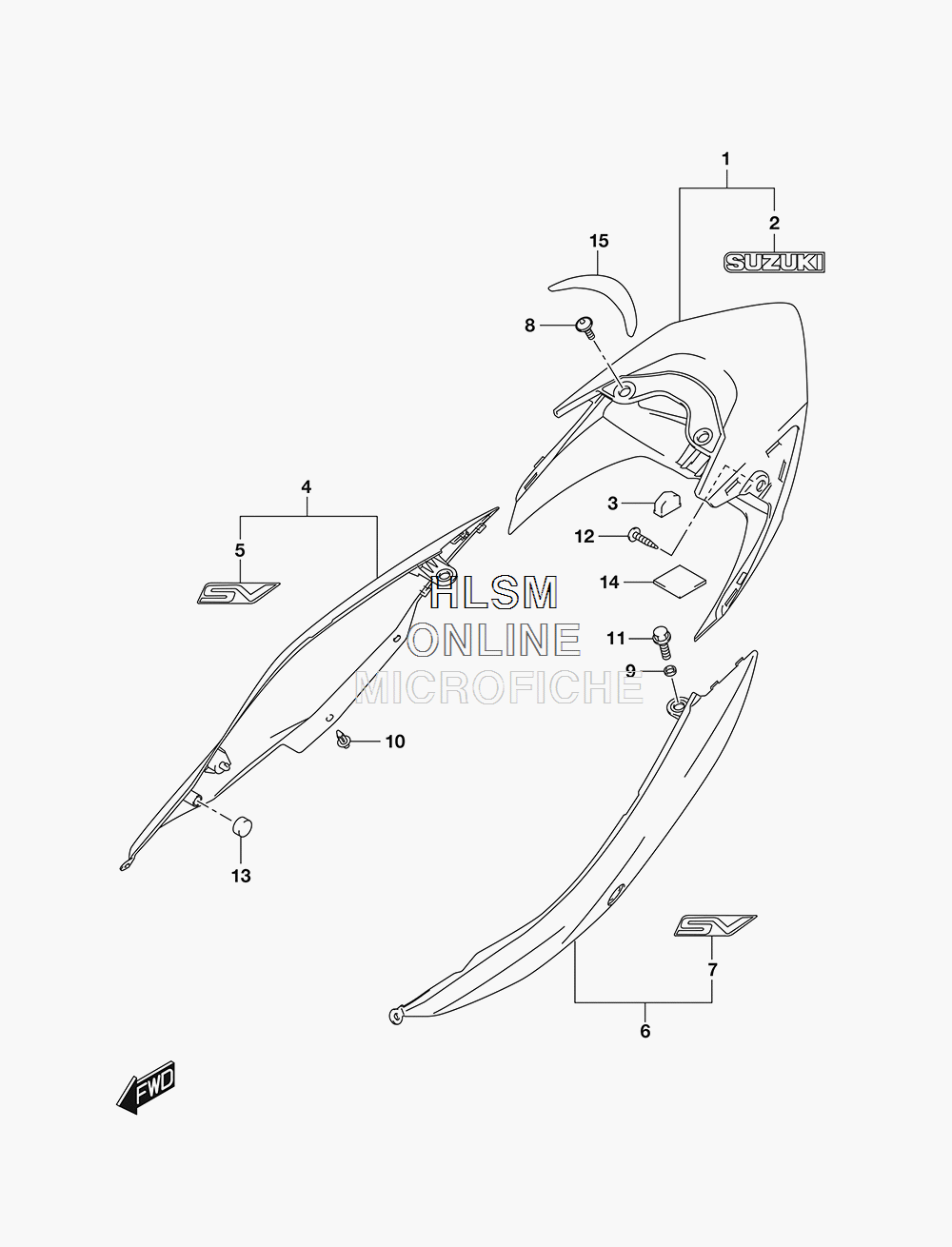

FRAME COVER (CALIF.) (BLACK) для Suzuki SV650 - 2018 года выпуска
-
№АртикулНазвание
-
147310-18K00-4TX COVER, FRAME REAR CENTER (4TX - BLACK)COVER, FRAME REAR CENTER (4TX - BLACK)
-
268171-28H10-KGL ...EMBLEM, "SUZUKI" (KGL - BLACK/BLACK)...EMBLEM, "SUZUKI" (KGL - BLACK/BLACK)
-
347315-18K00 CUSHION, FRAME COVER CENTERCUSHION, FRAME COVER CENTER
-
4-147410-18K20-YKV COVER, FRAME REAR (RH) (YKV - MET BLACK)COVER, FRAME REAR (RH) (YKV - MET BLACK)
-
4-247410-18K20-YVB COVER, FRAME REAR (RH) (YVB - BLACK)COVER, FRAME REAR (RH) (YVB - BLACK)
-
5-168111-18K00-KGL ...EMBLEM, "SV" (KGL - BLACK/BLACK FOR YKV - MET BLACK)...EMBLEM, "SV" (KGL - BLACK/BLACK FOR YKV - MET BLACK)
-
5-268111-18K00-YLF ...EMBLEM, "SV" (YLF - GRAY FOR YVB - BLACK)...EMBLEM, "SV" (YLF - GRAY FOR YVB - BLACK)
-
6-147510-18K20-YKV COVER, FRAME REAR (LH) (YKV - MET BLACK)COVER, FRAME REAR (LH) (YKV - MET BLACK)
-
6-247510-18K20-YVB COVER, FRAME REAR (LH) (YVB - BLACK)COVER, FRAME REAR (LH) (YVB - BLACK)
-
7-168111-18K00-KGL ...EMBLEM, "SV" (KGL - BLACK/BLACK FOR YKV - MET BLACK)...EMBLEM, "SV" (KGL - BLACK/BLACK FOR YKV - MET BLACK)
-
7-268111-18K00-YLF ...EMBLEM, "SV" (YLF - GRAY FOR YVB - BLACK)...EMBLEM, "SV" (YLF - GRAY FOR YVB - BLACK)
-
809139-05074 BOLT (5X13)BOLT (5X13)
-
909180-08052 SPACER (8.5X12X2.5)SPACER (8.5X12X2.5)
-
1009409-06314 CLIPCLIP
-
1101550-0812A BOLTBOLT
-
1203541-0510A SCREWSCREW
-
1309329-14002 CUSHIONCUSHION
-
1433652-20C00 CUSHION (CUT AS REQUIRED)CUSHION (CUT AS REQUIRED)
-
1547312-18K00 TAPE, FRAME COVER REAR CENTERTAPE, FRAME COVER REAR CENTER
