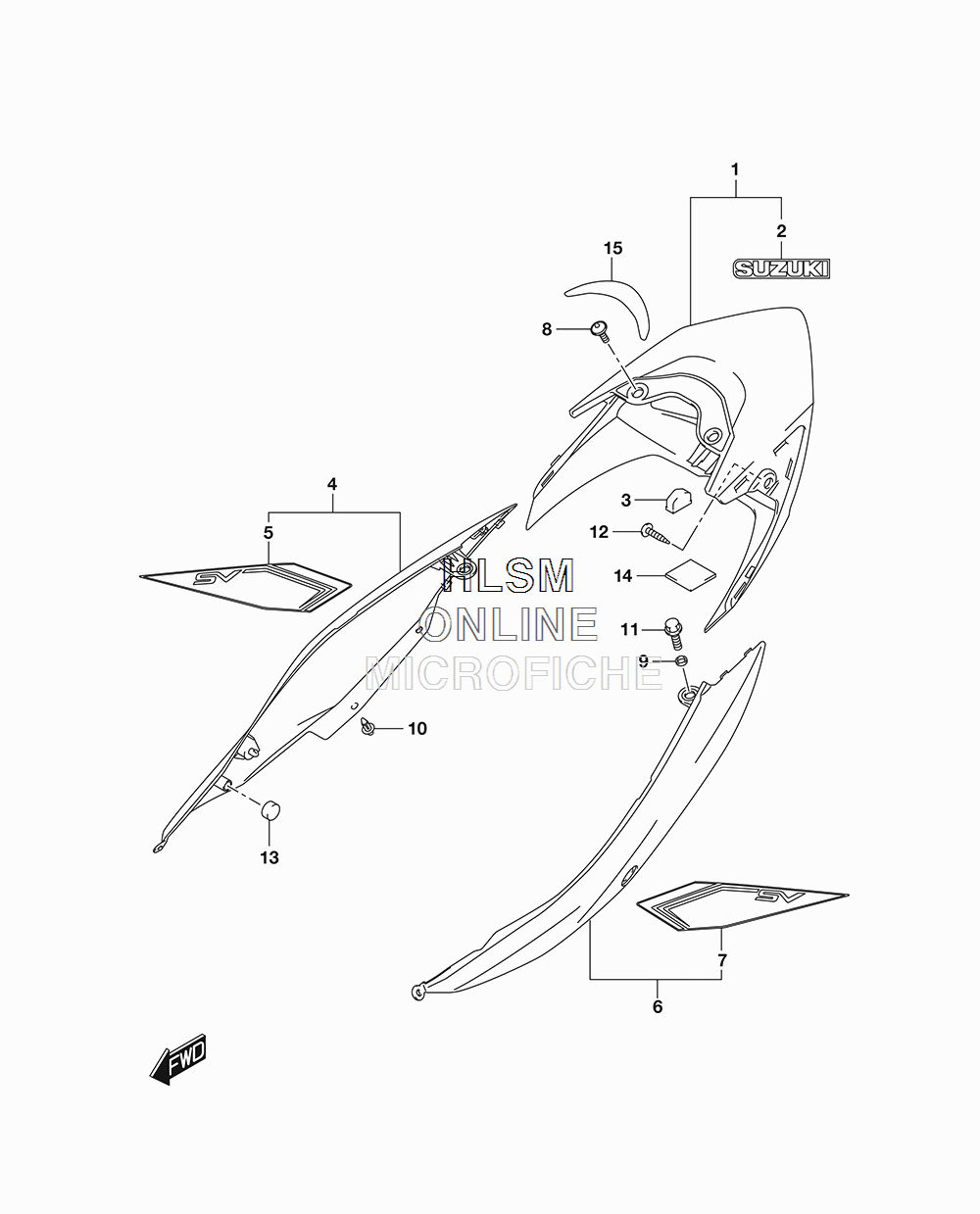

FRAME COVER (EXCEPT CALIF.) (BLUE/WHITE) для Suzuki SV650 - 2018 года выпуска
-
№АртикулНазвание
-
147310-18K00-YSF COVER, FRAME REAR CENTER (YSF - BLUE)COVER, FRAME REAR CENTER (YSF - BLUE)
-
268171-28H10-BPD ...EMBLEM, "SUZUKI" (BPD - SILVER/BLUE FOR YSF - BLUE)...EMBLEM, "SUZUKI" (BPD - SILVER/BLUE FOR YSF - BLUE)
-
347315-18K00 CUSHION, FRAME COVER CENTERCUSHION, FRAME COVER CENTER
-
447410-18K10-YWW COVER, FRAME REAR (RH) (YWW - WHITE)COVER, FRAME REAR (RH) (YWW - WHITE)
-
568135-18K00-BPC ...TAPE SET, FRAME COVER (RH) (BPC - BLACK/BLUE/WHITE/SILVER FOR YWW - WHITE)...TAPE SET, FRAME COVER (RH) (BPC - BLACK/BLUE/WHITE/SILVER FOR YWW - WHITE)
-
647510-18K10-YWW COVER, FRAME REAR (LH) (YWW - WHITE)COVER, FRAME REAR (LH) (YWW - WHITE)
-
768145-18K00-BPC ...TAPE SET, FRAME COVER (LH) (BPC - BLACK/BLUE/WHITE/SILVER FOR YWW - WHITE)...TAPE SET, FRAME COVER (LH) (BPC - BLACK/BLUE/WHITE/SILVER FOR YWW - WHITE)
-
809139-05074 BOLT (5X13)BOLT (5X13)
-
909180-08052 SPACER (8.5X12X2.5)SPACER (8.5X12X2.5)
-
1009409-06314 CLIPCLIP
-
1101550-0812A BOLTBOLT
-
1203541-0510A SCREWSCREW
-
1309329-14002 CUSHIONCUSHION
-
1433652-20C00 CUSHION (CUT AS REQUIRED)CUSHION (CUT AS REQUIRED)
-
1547312-18K00 TAPE, FRAME COVER REAR CENTERTAPE, FRAME COVER REAR CENTER
