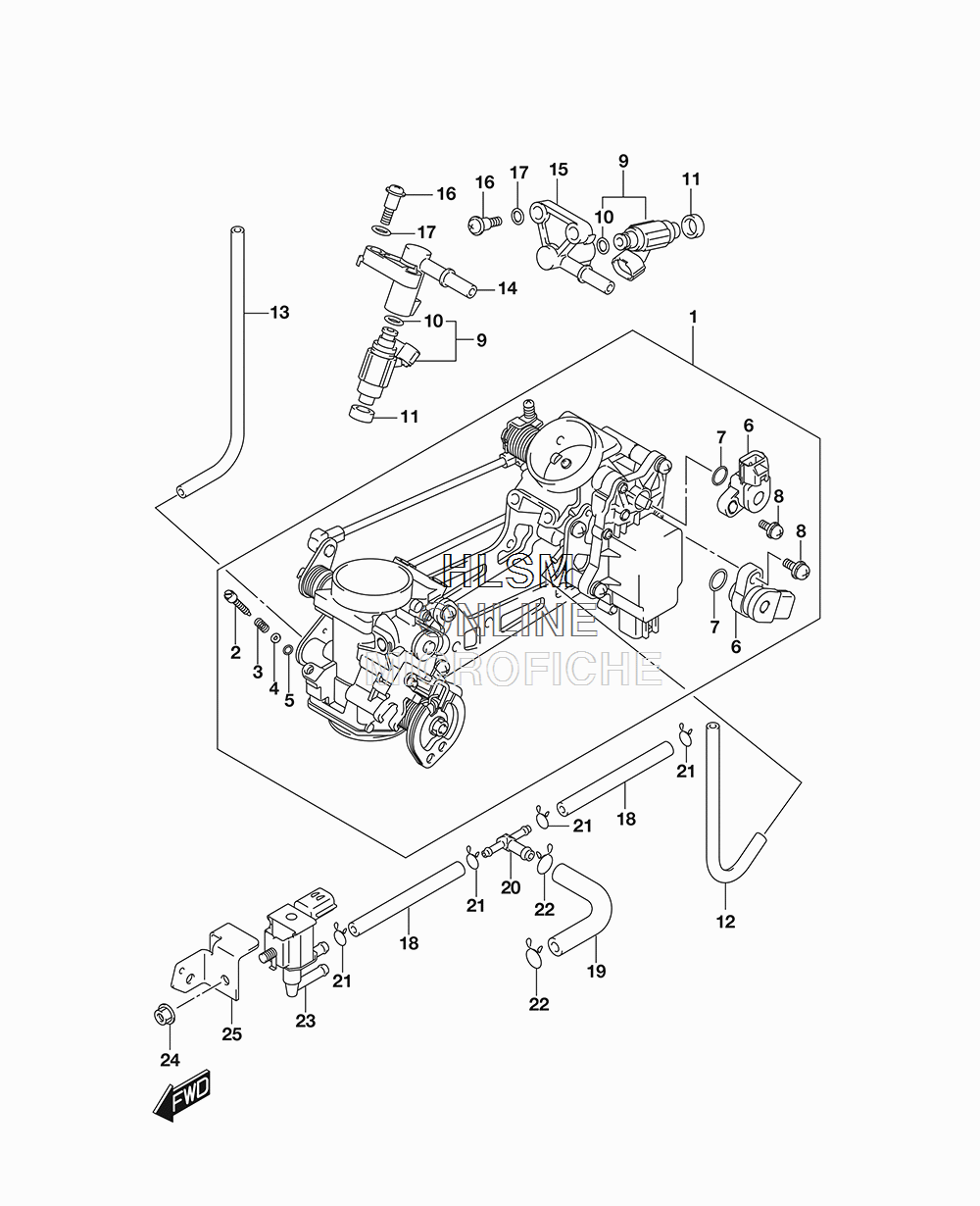

THROTTLE BODY (CALIF.) для Suzuki SV650 - 2018 года выпуска
-
№АртикулНазвание
-
113405-18K10 THROTTLE BODYTHROTTLE BODY
-
213269-33E00 ...SCREW...SCREW
-
313268-48700 ...SPRING, THROTTLE SCREW...SPRING, THROTTLE SCREW
-
413606-47A00 ...WASHER...WASHER
-
513295-29900 ...O RING...O RING
-
613580-27G21 ...SENSOR ASSY...SENSOR ASSY
-
713575-29G00 ...O RING...O RING
-
813605-02F00 ...SCREW...SCREW
-
915710-11J00 INJECTOR ASSYINJECTOR ASSY
-
1015717-58B00 ...O RING...O RING
-
1115722-29G00 SEALSEAL
-
1213683-10F70 HOSEHOSE
-
1313683-01H00 HOSEHOSE
-
1415731-11J00 DELIVERY PIPEDELIVERY PIPE
-
1515732-11J00 DELIVERY PIPEDELIVERY PIPE
-
1613601-11J00 SCREW, DELIVERY PIPESCREW, DELIVERY PIPE
-
1713602-29G00 PACKINGPACKING
-
1813681-06G40 HOSEHOSE
-
1913683-44H30 HOSEHOSE
-
2013685-04F10 NIPPLENIPPLE
-
2113671-12C00 CLIPCLIP
-
2209401-10410 CLIPCLIP
-
2318117-52G10 VALVE, WASTEGATE CONTVALVE, WASTEGATE CONT
-
2408316-1006A NUTNUT
-
2518119-44H00 BRACKETBRACKET
