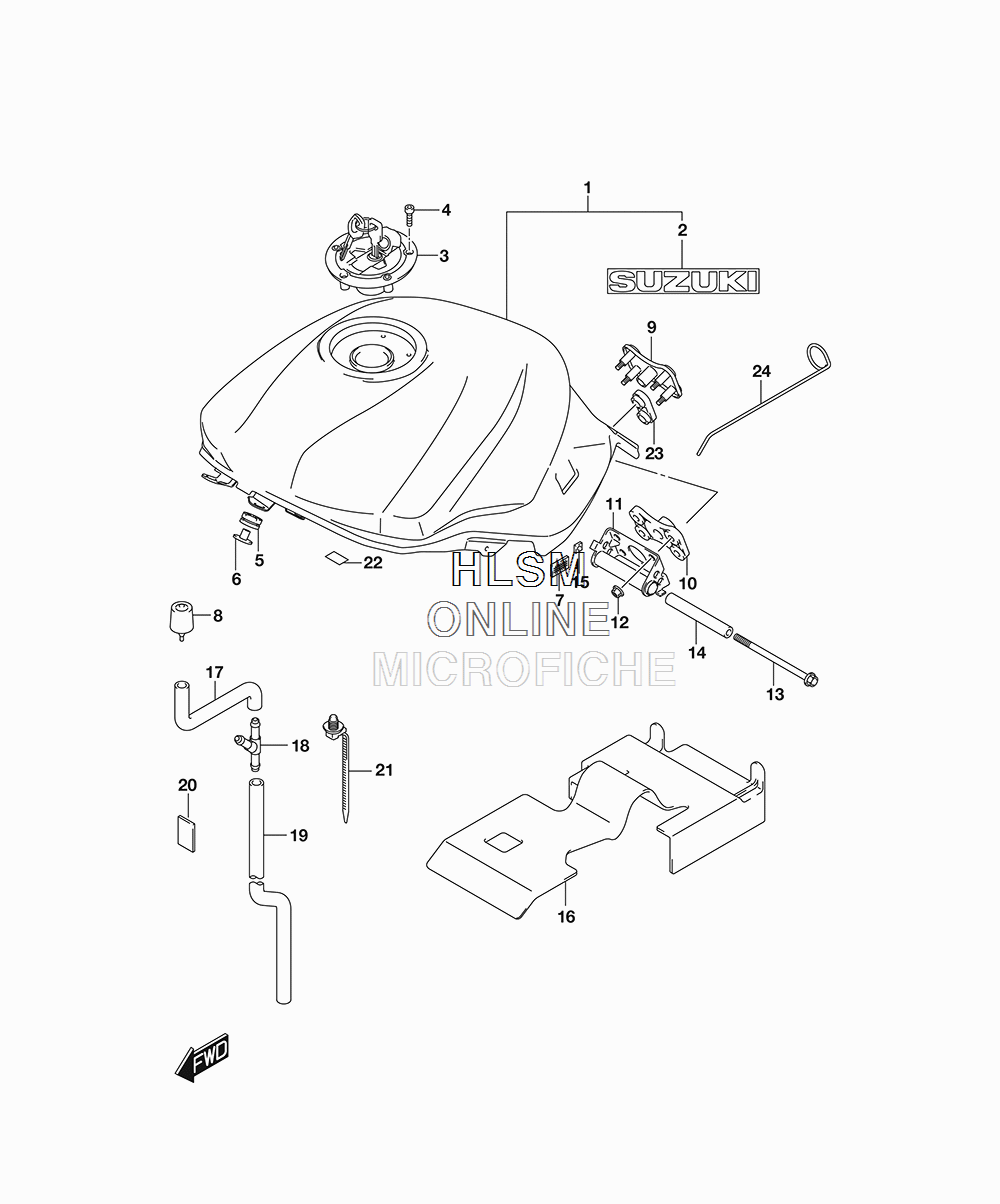

FUEL TANK (CALIF.) (BLACK) для Suzuki SV650 - 2018 года выпуска
-
№АртикулНазвание
-
1-144100-18K60-YVB TANK ASSY, FUEL (YVB - SPARKLE BLACK)TANK ASSY, FUEL (YVB - SPARKLE BLACK)
-
1-244100-18K70-YKV TANK ASSY, FUEL (YKV - MET. BLACK)TANK ASSY, FUEL (YKV - MET. BLACK)
-
2-168111-47C10-YLF ...EMBLEM, "SUZUKI" (YLF - GRAY FOR YVB - SPARKLE BLACK)...EMBLEM, "SUZUKI" (YLF - GRAY FOR YVB - SPARKLE BLACK)
-
2-268111-47C20-KGL ...EMBLEM, "SUZUKI" (KGL - BLACK/BLACK FOR YKV - MET. BLACK)...EMBLEM, "SUZUKI" (KGL - BLACK/BLACK FOR YKV - MET. BLACK)
-
344200-17820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
444244-11J00 BOLT, FUEL TANK FILLER CAPBOLT, FUEL TANK FILLER CAP
-
544511-18K00 CUSHION, FUEL TANK FRONTCUSHION, FUEL TANK FRONT
-
644512-04K00 SPACER, FUEL TANK FRONTSPACER, FUEL TANK FRONT
-
744572-13G00 FASTENER, SIDEFASTENER, SIDE
-
844542-29G00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
944570-16G00 BRACKET, REAR UPPERBRACKET, REAR UPPER
-
1044542-18K00 CUSHION, FUEL TANK REAR LOWERCUSHION, FUEL TANK REAR LOWER
-
1144530-44H00 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
1208319-3106A NUTNUT
-
1309103-06060 BOLT (6X100)BOLT (6X100)
-
1444561-35F00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
1508318-1106A NUTNUT
-
1644191-18K00 SHEET, HEAT SHIELD RUBBERSHEET, HEAT SHIELD RUBBER
-
1744423-18K00 HOSE, FUEL TANK DRAIN NO.1HOSE, FUEL TANK DRAIN NO.1
-
1809367-08010 3 WAY3 WAY
-
1944423-18K10 HOSE, FUEL TANK DRAIN NO.2HOSE, FUEL TANK DRAIN NO.2
-
2044427-18K10 SHIELD, DRAIN HOSE HEATSHIELD, DRAIN HOSE HEAT
-
2109407-17403 CLAMP (L:154)CLAMP (L:154)
-
2236611-16G00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
2344541-18K00 CUSHION, FUEL TANK REAR UPPERCUSHION, FUEL TANK REAR UPPER
-
2444560-23H00 STAY, FUEL TANK (OPT)STAY, FUEL TANK (OPT)
