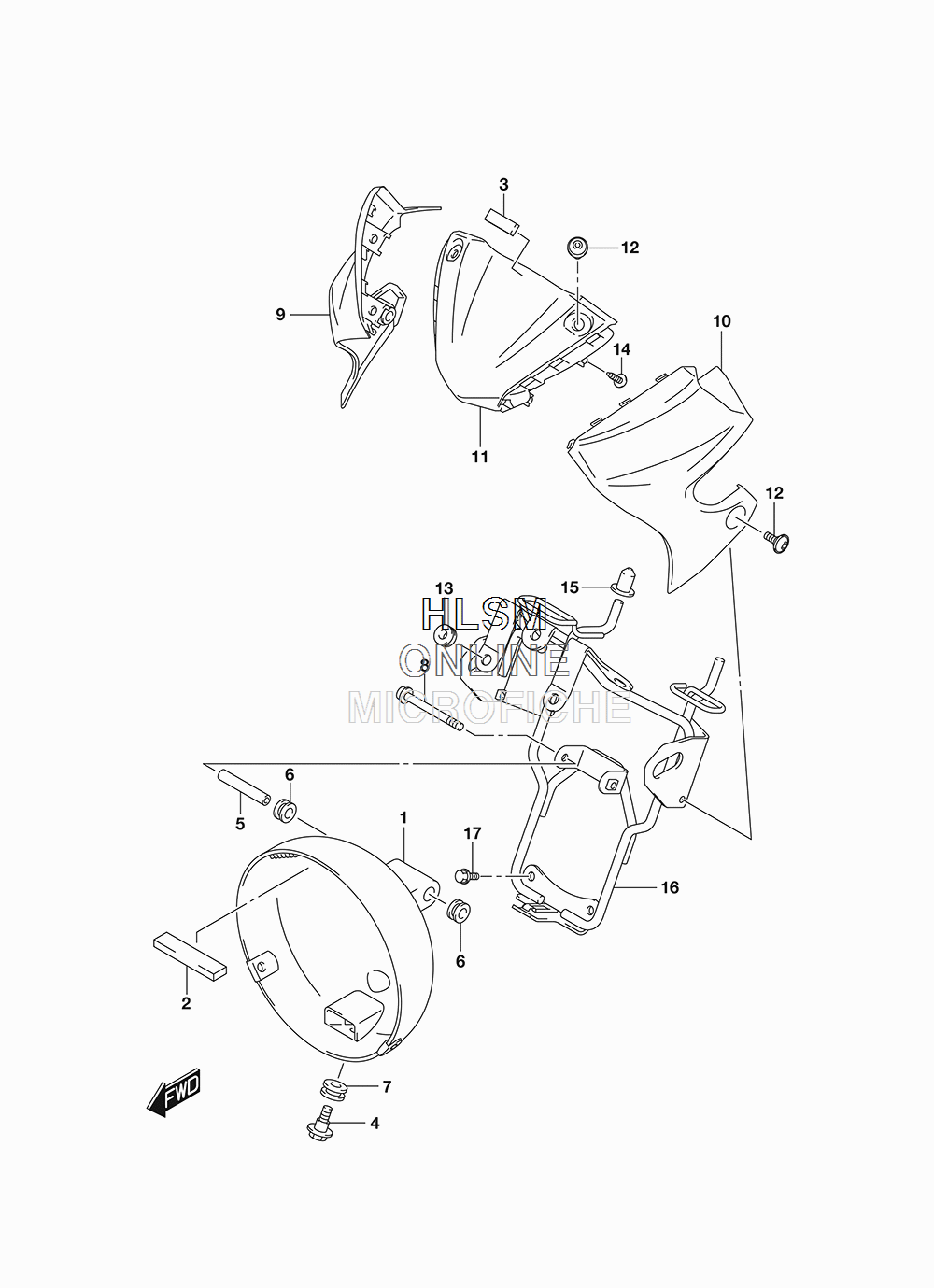

HEADLAMP HOUSING для Suzuki SV650 - 2018 года выпуска
-
№АртикулНазвание
-
151811-18K01 COVER, HEADLAMPCOVER, HEADLAMP
-
251827-13G00 CUSHION, HEADLAMP COVERCUSHION, HEADLAMP COVER
-
351827-18K00 CUSHION, METER COVERCUSHION, METER COVER
-
409139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
509180-06368 SPACERSPACER
-
609320-09016 CUSHIONCUSHION
-
709320-10501 CUSHIONCUSHION
-
807120-0665B BOLTBOLT
-
9-151821-18K00-YKV COVER, METER (RH) (YKV - BLACK FOR YKV - MET BLACK)COVER, METER (RH) (YKV - BLACK FOR YKV - MET BLACK)
-
9-251821-18K00-YSF COVER, METER (RH) (YSF - BLUE FOR AGQ - BLUE/WHITE)COVER, METER (RH) (YSF - BLUE FOR AGQ - BLUE/WHITE)
-
9-351821-18K00-YVB COVER, METER (RH) (YVB - BLACK FOR YVB - SPARKLE BLACK)COVER, METER (RH) (YVB - BLACK FOR YVB - SPARKLE BLACK)
-
10-151831-18K00-YKV COVER, METER (LH) (YKV - BLACK FOR YKV - MET BLACK)COVER, METER (LH) (YKV - BLACK FOR YKV - MET BLACK)
-
10-251831-18K00-YSF COVER, METER (LH) (YSF - BLUE FOR AGQ - BLUE/WHITE)COVER, METER (LH) (YSF - BLUE FOR AGQ - BLUE/WHITE)
-
10-351831-18K00-YVB COVER, METER (LH) (YVB - BLACK FOR YVB - SPARKLE BLACK)COVER, METER (LH) (YVB - BLACK FOR YVB - SPARKLE BLACK)
-
1151841-18K00 COVER, METER CENTERCOVER, METER CENTER
-
1209139-05074 BOLT (5X13)BOLT (5X13)
-
1309320-06504 CUSHIONCUSHION
-
1403541-0512A SCREWSCREW
-
1551831-21D00 CUSHION, HEADLAMP BRACECUSHION, HEADLAMP BRACE
-
1651850-18K00 BRACE, HEADLAMPBRACE, HEADLAMP
-
1701547-0612A BOLTBOLT
