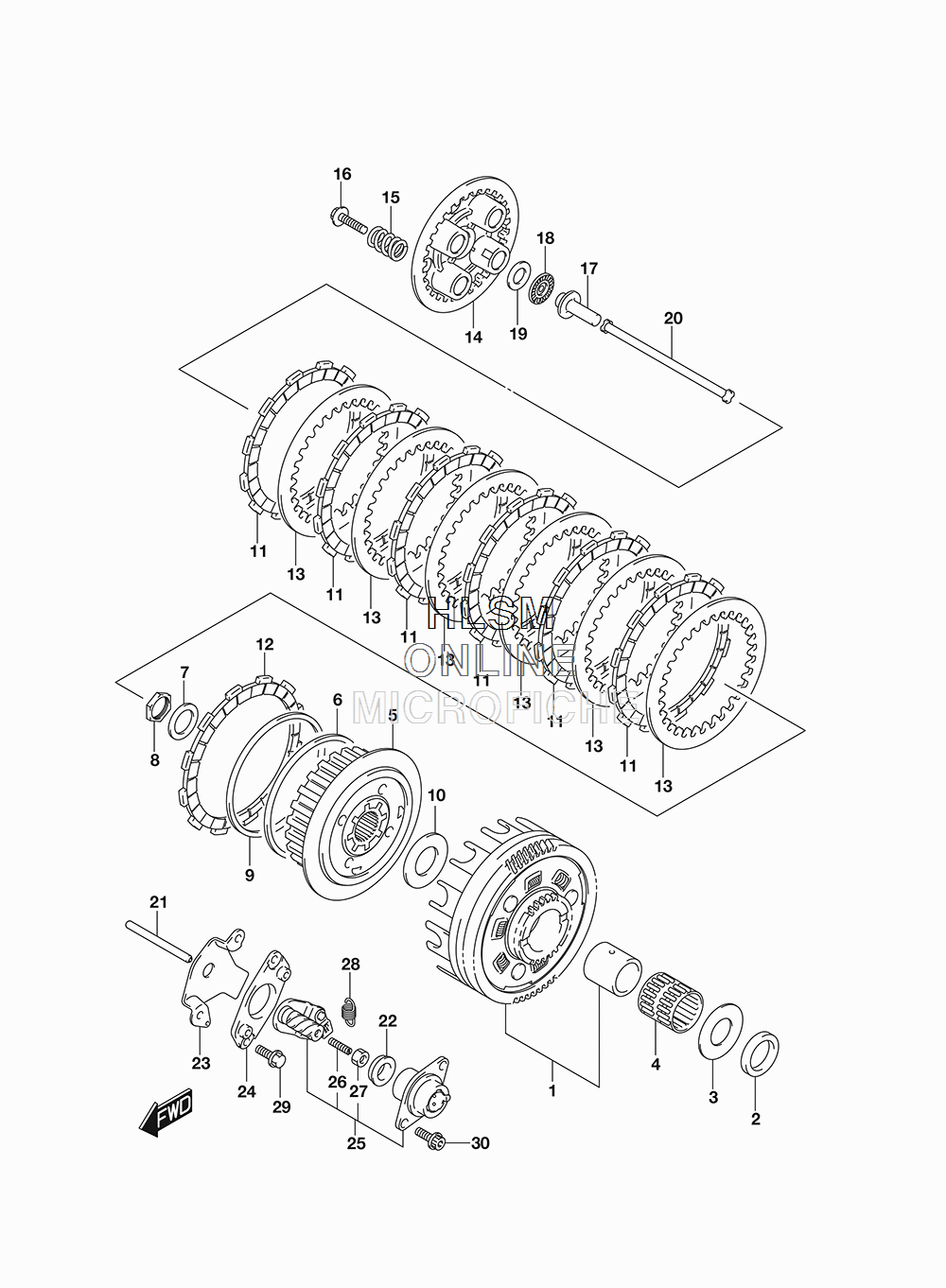

CLUTCH для Suzuki VZ800 M50 - 2018 года выпуска
-
№АртикулНазвание
-
121200-38840 GEAR, PRIMARY DRIVEN (NT:71)GEAR, PRIMARY DRIVEN (NT:71)
-
209180-25077 SPACER (25X38X6.5)SPACER (25X38X6.5)
-
309160-25055 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
409263-35017 BEARING (35X40X35.8)BEARING (35X40X35.8)
-
521410-41F00 HUB, SLEEVEHUB, SLEEVE
-
621471-37400 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
709164-22007 WASHERWASHER
-
809140-22008 NUTNUT
-
909164-00004 WASHERWASHER
-
1009160-25055 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
1121441-37400 PLATE, DRIVE NO.1 (T:3.0)PLATE, DRIVE NO.1 (T:3.0)
-
1221442-37401 PLATE, DRIVE NO.2 (T:3.5)PLATE, DRIVE NO.2 (T:3.5)
-
1321451-14A00 PLATE, DRIVEN (T:1.6)PLATE, DRIVEN (T:1.6)
-
1421462-27A00 DISC, PRESSUREDISC, PRESSURE
-
1521413-41F00 SPRING, CLUTCHSPRING, CLUTCH
-
1609116-06203 BOLT (6X30)BOLT (6X30)
-
1723121-31E00 PIECE, PUSHPIECE, PUSH
-
1809263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
1909160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
2023110-27A00 ROD, PUSH (RH)ROD, PUSH (RH)
-
2123111-45C00 ROD, PUSH (LH)ROD, PUSH (LH)
-
2209283-06010 OIL SEAL (6X34X10.5)OIL SEAL (6X34X10.5)
-
2323117-45C00 RETAINERRETAINER
-
2423130-45C00 BRACKET, RELEASE SCREWBRACKET, RELEASE SCREW
-
2523200-41F00 SCREW ASSY, CLUTCH RELEASESCREW ASSY, CLUTCH RELEASE
-
2609134-06010 ...SCREW (6X25)...SCREW (6X25)
-
2708310-00067 ...NUT...NUT
-
2809443-09050 SPRINGSPRING
-
2907120-0620A BOLTBOLT
-
3007120-0616A BOLTBOLT
