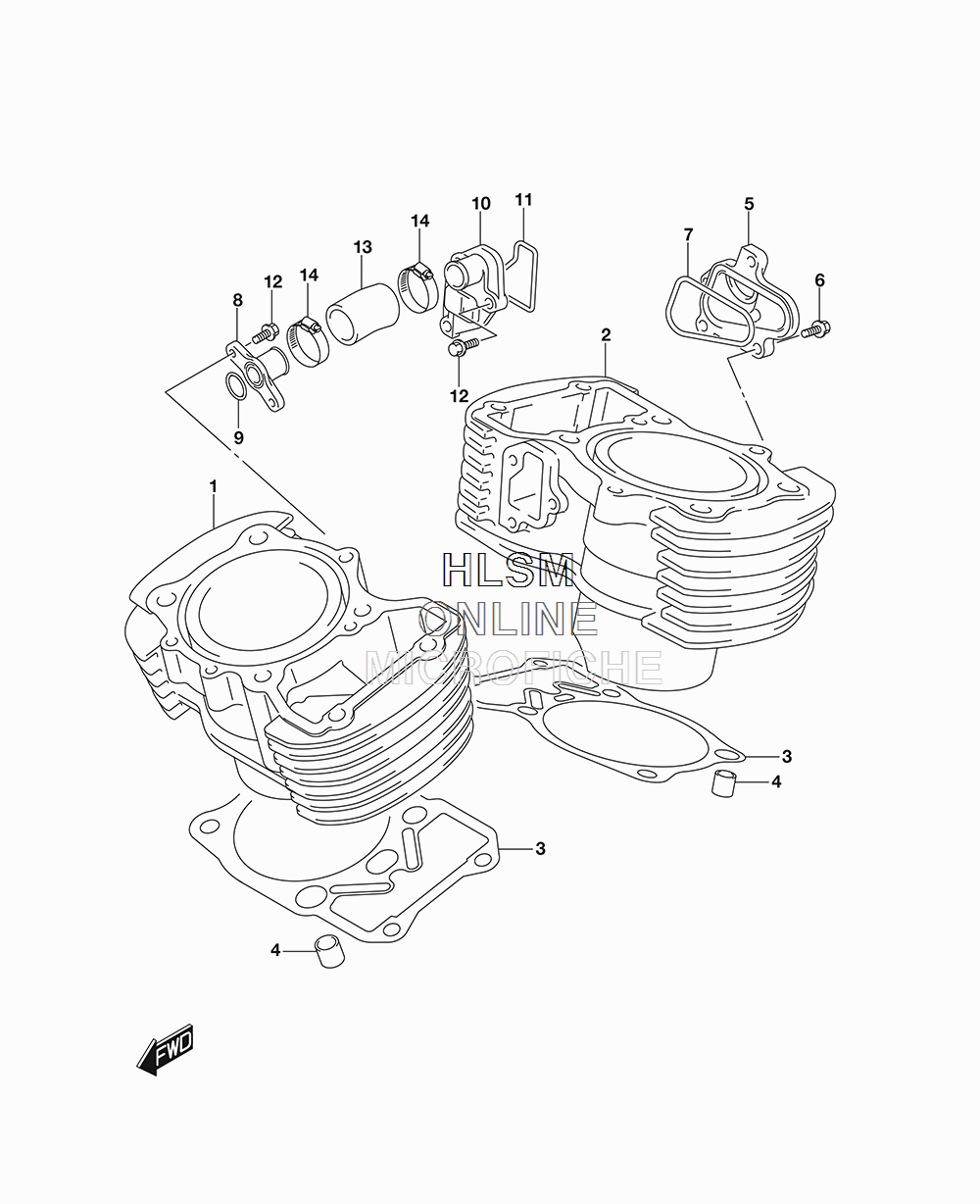

CYLINDER для Suzuki VZ800 M50 - 2018 года выпуска
-
№АртикулНазвание
-
111210-41F00-0F0 CYLINDER, FRONT (YELLOW)CYLINDER, FRONT (YELLOW)
-
211220-41F00-0F0 CYLINDER, REAR (YELLOW)CYLINDER, REAR (YELLOW)
-
311241-39G00 GASKET, CYLINDERGASKET, CYLINDER
-
404211-13189 PINPIN
-
511237-41F00 CONNECTOR, WATER INLETCONNECTOR, WATER INLET
-
601547-0620A BOLTBOLT
-
711247-38A00 O RINGO RING
-
811235-41F00 UNION, WATER INLETUNION, WATER INLET
-
909280-16005 O RING (D:2.4,ID:15.8)O RING (D:2.4,ID:15.8)
-
1017892-41F00 UNION, OUTLETUNION, OUTLET
-
1117899-41F00 O RINGO RING
-
1201547-0616A BOLTBOLT
-
1317853-38A10 HOSE, CYLINDER JOINTHOSE, CYLINDER JOINT
-
1409402-28513 CLAMPCLAMP
