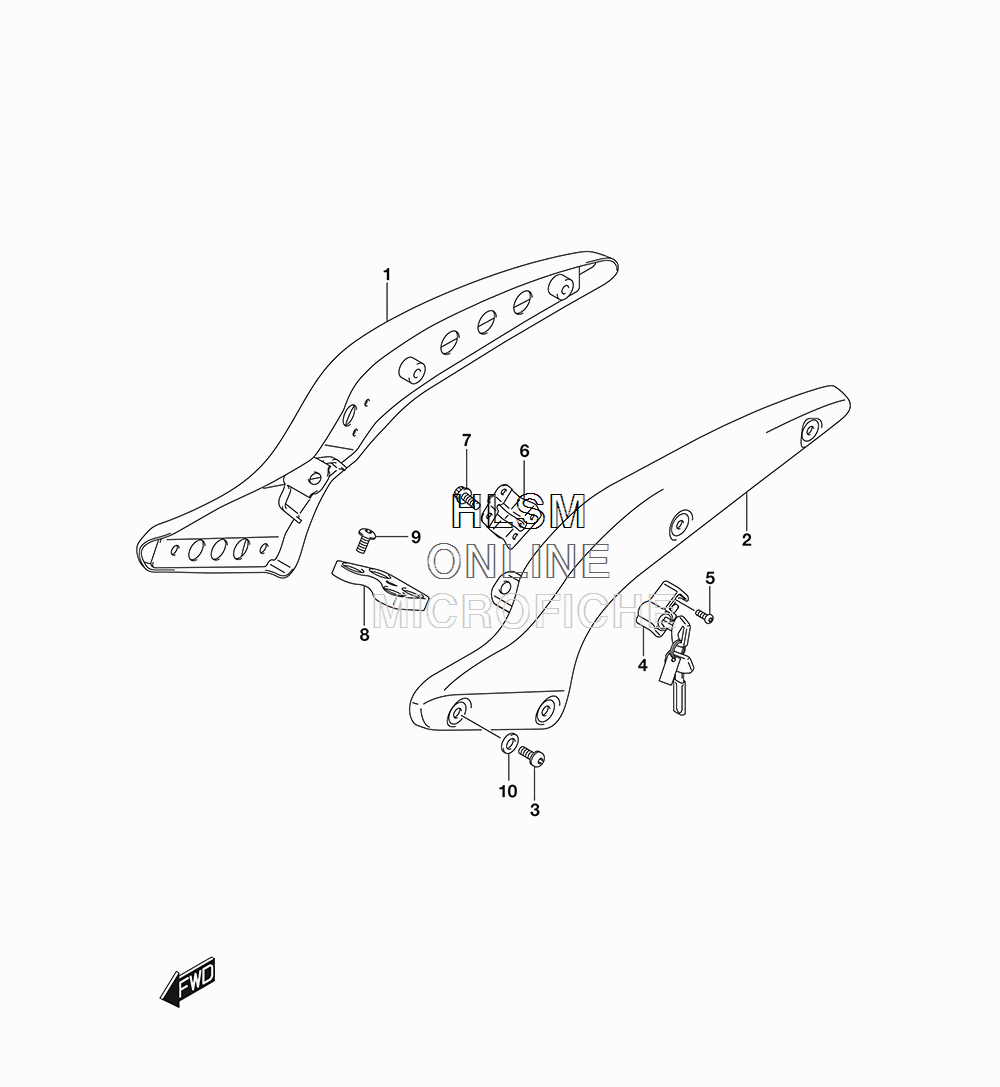

FRAME - REAR для Suzuki VZ800 M50 - 2018 года выпуска
-
№АртикулНазвание
-
141210-39G60 FRAME, REAR (RH)FRAME, REAR (RH)
-
241220-39G60 FRAME, REAR (LH)FRAME, REAR (LH)
-
309139-10003 BOLT (10X25)BOLT (10X25)
-
495700-41821 LOCK SET, HELMETLOCK SET, HELMET
-
509139-06089 SCREW (6X14)SCREW (6X14)
-
695710-39G00 BRACKETBRACKET
-
707120-0616A BOLTBOLT
-
841313-41F61 PLATE, FUEL TANKPLATE, FUEL TANK
-
909106-08140 BOLT (8X16)BOLT (8X16)
-
1009160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
