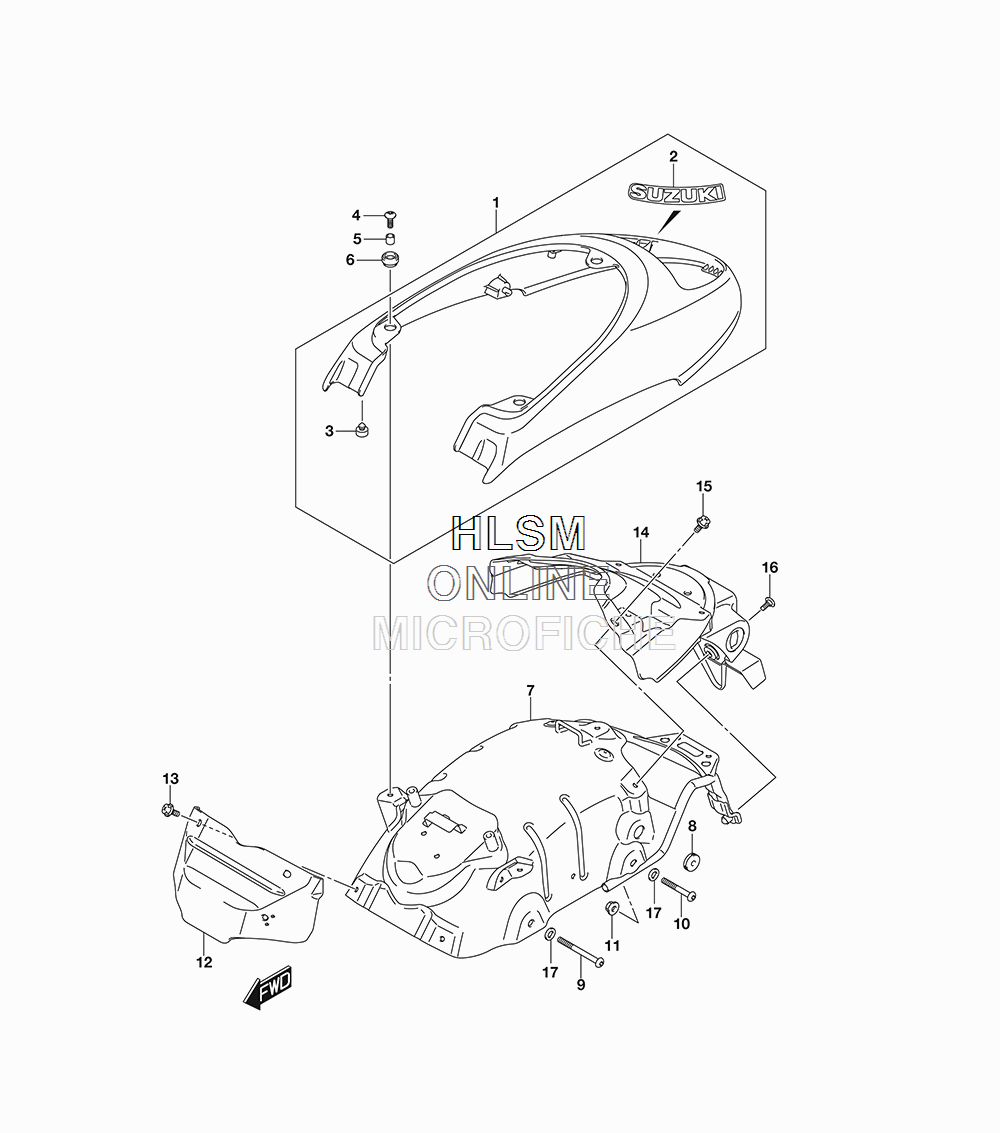

FENDER - REAR для Suzuki VZ800 M50 - 2018 года выпуска
-
№АртикулНазвание
-
163110-39G50-6UX FENDER, REAR (6UX - BLACK)FENDER, REAR (6UX - BLACK)
-
268641-19F00-YJH ...EMBLEM SUZUKI (YJH - GRAY)...EMBLEM SUZUKI (YJH - GRAY)
-
309250-06012 ...PLUG (OD:10)...PLUG (OD:10)
-
409136-06105 SCREW (6X20)SCREW (6X20)
-
509180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
647312-37H00 CUSHIONCUSHION
-
763140-39G00 BRACE, FENDERBRACE, FENDER
-
809320-08029 CUSHIONCUSHION
-
909106-08182 BOLT (8X70)BOLT (8X70)
-
1009106-08183 BOLT (8X50)BOLT (8X50)
-
1108316-1008A NUTNUT
-
1263112-39G50 FENDER, FRONTFENDER, FRONT
-
1309111-06107 BOLT (6X12)BOLT (6X12)
-
1463311-39G01 EXTENSIONEXTENSION
-
1509111-06107 BOLT (6X12)BOLT (6X12)
-
1609139-06144 SCREW (6X12)SCREW (6X12)
-
1708322-0108A WASHERWASHER
