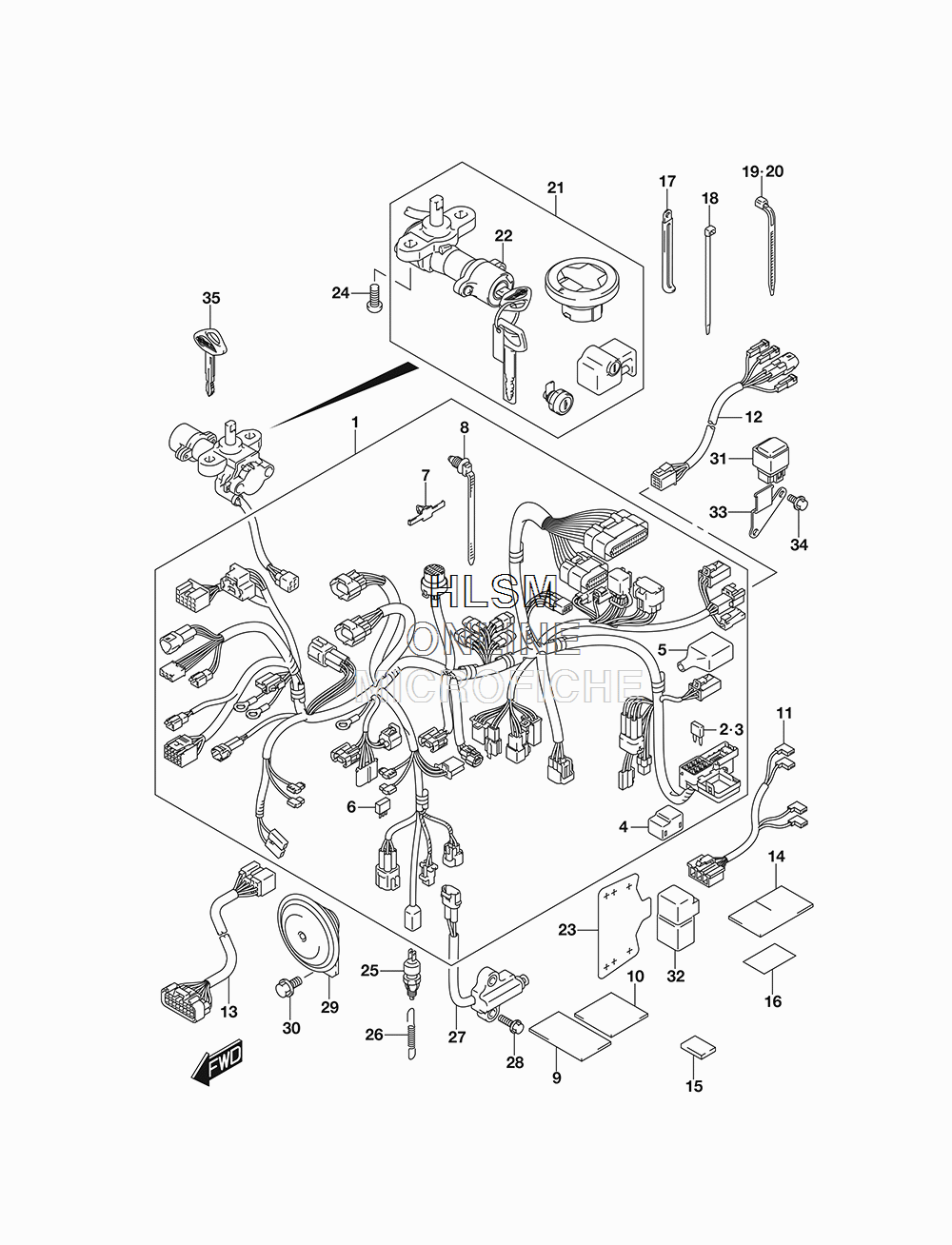

WIRING HARNESS (CANADA) для Suzuki VZ800 M50 - 2018 года выпуска
-
№АртикулНазвание
-
136610-39GP0 HARNESS, WIRINGHARNESS, WIRING
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-15501 ...FUSE (15A)...FUSE (15A)
-
436717-41F10 ...COVER, FUSE...COVER, FUSE
-
536717-41F00 ...BOOT...BOOT
-
636611-38A10 ...DIODE...DIODE
-
709407-05410 ...CLAMP...CLAMP
-
809407-17403 ...CLAMP (L:154)...CLAMP (L:154)
-
936611-16G00 TAPE, WIRING HARNESSTAPE, WIRING HARNESS
-
1036611-41F00 TAPE, WIRING HARNESSTAPE, WIRING HARNESS
-
1136854-39G00 WIRE, IGNITION COIL LEADWIRE, IGNITION COIL LEAD
-
1236858-39GD0 WIRE, REAR COMBINATIONWIRE, REAR COMBINATION
-
1336859-39G00 WIRE, METER LEADWIRE, METER LEAD
-
1436920-33C00 TAPE, WIRING HARNESSTAPE, WIRING HARNESS
-
1536930-60A10 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1694474-17H00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1709404-06433 CLAMP (L:80)CLAMP (L:80)
-
1809407-14407 CLAMP (L:145)CLAMP (L:145)
-
1909407-18402 CLAMP (L:165)CLAMP (L:165)
-
2009407-19401 CLAMP (L:190)CLAMP (L:190)
-
2137103-41860 LOCK SETLOCK SET
-
2237100-41F70 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
2337187-41F10 PROTECTOR, IGNITION SWITCHPROTECTOR, IGNITION SWITCH
-
2409139-08016 BOLT (8X20)BOLT (8X20)
-
2537740-24A00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2609443-06073 SPRINGSPRING
-
2737840-41F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2801550-0620B BOLTBOLT
-
2938500-41F40 HORN ASSYHORN ASSY
-
3001550-0816A BOLTBOLT
-
3138740-24A00 RELAY ASSY (FOR HEAD LAMP)RELAY ASSY (FOR HEAD LAMP)
-
3238740-24X50 RELAY ASSY (FOR FUEL PUMP)RELAY ASSY (FOR FUEL PUMP)
-
3338741-39G00 BRACKET, HEAD LAMP RELAYBRACKET, HEAD LAMP RELAY
-
3401550-0612A BOLTBOLT
-
3537146-41FA0 KEY, BLANK (OPT)KEY, BLANK (OPT)
