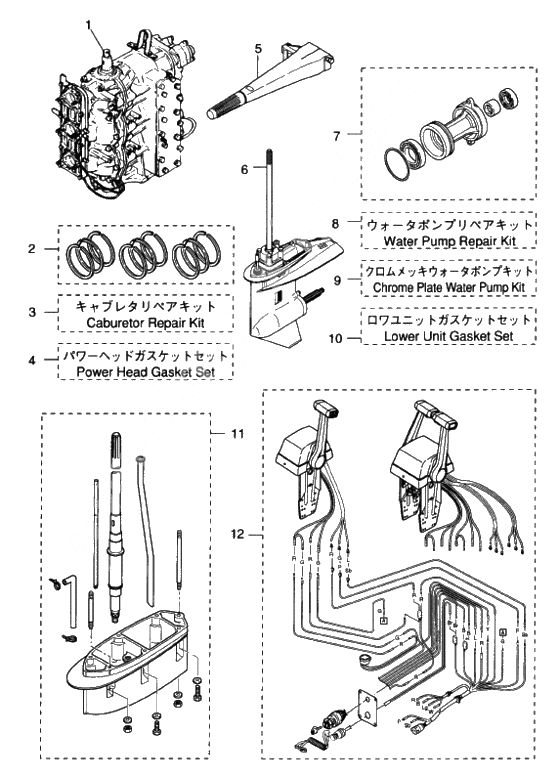

Assembly - kit для Tohatsu M90A - 1996 года выпуска

№

Артикул

Название
1

3B7B87110-2 Engine short block
INCL. ENGINE BASE GASKET & SPARK PLUGS

Engine short block
INCL. ENGINE BASE GASKET & SPARK PLUGS

366 230 ₽
2

3B7-87123-1 Кольца поршневые

Кольца поршневые

12 560 ₽
2

3B7-00011-0 1-е поршневое кольцо

1-е поршневое кольцо

1 900 ₽
2

3B7-00012-0 2-е поршневое кольцо

2-е поршневое кольцо

1 380 ₽
2

3B7-87124-1 Кольца поршневые

Кольца поршневые

13 440 ₽
2

3B7-00014-0 1-е поршневое кольцо

1-е поршневое кольцо

2 070 ₽
2

3B7-00015-0 2-е поршневое кольцо

2-е поршневое кольцо

1 470 ₽
3

3L9-87122-0 Carburetor repair kit m90a

Carburetor repair kit m90a

9 020 ₽
3B7-87122-1 Carburetor repair kit m90a

Carburetor repair kit m90a

18 520 ₽
3

346-02011-0 Gasket, carburettor

Gasket, carburettor

280 ₽
3

346-03222-0 O-ring, float

O-ring, float

1 170 ₽
3

922503-6414 Stud Bolt

Stud Bolt

190 ₽
3

346-03231-0 Float

Float

1 450 ₽
3

346-03232-0 Arm Pin Float

Arm Pin Float

280 ₽
3

3B7-03240-0 Float Valve

Float Valve

880 ₽
3

344-03244-0 Clip

Clip

550 ₽
3

3F3-03234-0 Screw arm pin

Screw arm pin

140 ₽
3

346-03256-0 Rubber cap

Rubber cap

570 ₽
3

3C7-03182-0 Gasket a, carburetor cover

Gasket a, carburetor cover

290 ₽
3

3C7-03183-0 Gasket b, carburetor cover

Gasket b, carburetor cover

190 ₽
3

3C7-03184-0 Plate a, cover gasket

Plate a, cover gasket

210 ₽
3

3C7-03185-0 Plate b, cover gasket

Plate b, cover gasket

300 ₽
3

3C7-03186-0 Stud Bolt

Stud Bolt

340 ₽
3

336-03293-0 O-Ring

O-Ring

300 ₽
3

334-03242-0 Игольчатый клапан

Игольчатый клапан

150 ₽
4

3B7-87121-1 Power Head Gasket Set

Power Head Gasket Set

28 610 ₽
4

3B7-01005-0 Gasket, cylinder head

Gasket, cylinder head

3 590 ₽
4

3B7-01024-0 Gasket, cylinder head cover

Gasket, cylinder head cover

1 270 ₽
4

353-01032-0 Прокладка крышки термостата

Прокладка крышки термостата

890 ₽
4

171-00053-0 O-Ring

O-Ring

370 ₽
4

3B7-00121-0 Oil seal, 35-58-9

Oil seal, 35-58-9

1 080 ₽
4

3C7-01215-0 Oil Seal, 19.6-35-10

Oil Seal, 19.6-35-10

2 500 ₽
4

3B7-02305-0 Gasket, exhaust cover

Gasket, exhaust cover

660 ₽
4

3C8-09082-0 Gasket blind plate
FOR PREMIXING

Gasket blind plate
FOR PREMIXING

130 ₽
4

353-00121-0 Oil Seal

Oil Seal

2 190 ₽
4

353-00108-0 O-Ring

O-Ring

450 ₽
4

3B7-02104-0 Gasket, inlet manifold

Gasket, inlet manifold

520 ₽
4

346-02414-0 Gasket air silencer

Gasket air silencer

280 ₽
4

3B7-02418-0 Gasket, air silencer

Gasket, air silencer

900 ₽
4

346-02011-0 Gasket, carburettor

Gasket, carburettor

280 ₽
4

3B7-09002-0 O-Ring
FOR AUTOMIXING

O-Ring
FOR AUTOMIXING

460 ₽
4

346-04901-0 Gasket fuel pump

Gasket fuel pump

90 ₽
4

3B7-02235-0 O-Ring A

O-Ring A

420 ₽
4

3B7-02236-0 O???? b

O???? b

330 ₽
4

3C7-01153-0 Gasket a, check valve

Gasket a, check valve

100 ₽
4

3C7-01154-0 Gasket b, check valve

Gasket b, check valve

100 ₽
4

3C8-71016-0 Gasket 36-52-2
FOR AUTOMIXING

Gasket 36-52-2
FOR AUTOMIXING

260 ₽
4

3B7-01303-0 New part

New part

3 380 ₽
5

3B7S63010-1 Handle ass'y

Handle ass'y

20 ₽
6

3B7S87302-3 Lower unit ass'yl
FOR TRANSOM L

Lower unit ass'yl
FOR TRANSOM L

166 050 ₽
7

3B7S87323-1 Propeller shaft housing ass'y

Propeller shaft housing ass'y

11 930 ₽
8

3B7-87322-0 Chrome Plated Water Pump Kit

Chrome Plated Water Pump Kit

12 600 ₽
3B7-65231-1 Chrome Plated Water Pump Kit

Chrome Plated Water Pump Kit

11 190 ₽
8

3B7-65021-1 Impeller (60/70b-c 90a)

Impeller (60/70b-c 90a)

3 590 ₽
3B7-65021-2 Impeller (60/70b-c 90a)

Impeller (60/70b-c 90a)

6 430 ₽
8

3B7-65011-0 New part

New part

1 270 ₽
8

3B7-65018-0 Прокладка насоса

Прокладка насоса

300 ₽
8

3B7-65025-0 Guide plate, water pump

Guide plate, water pump

980 ₽
8

3B7-65029-0 Gasket, guide plate

Gasket, guide plate

300 ₽
9

3B7-65231-0 Chrome Plated Water Pump Kit

Chrome Plated Water Pump Kit

11 450 ₽
9

3B7-65021-1 Impeller (60/70b-c 90a)

Impeller (60/70b-c 90a)

3 590 ₽
3B7-65021-2 Impeller (60/70b-c 90a)

Impeller (60/70b-c 90a)

6 430 ₽
9

3B7-65238-0 Liner, chrome plated water pump case

Liner, chrome plated water pump case

8 370 ₽
9

3B7-65018-0 Прокладка насоса

Прокладка насоса

300 ₽
9

3B7-65239-0 Guide plate, chrome plated water pump

Guide plate, chrome plated water pump

3 980 ₽
9

3B7-65029-0 Gasket, guide plate

Gasket, guide plate

300 ₽
10

3B7-87321-0 Lower Unit Gasket Set

Lower Unit Gasket Set

7 880 ₽
3B7-87321-2 Lower Unit Gasket Set

Lower Unit Gasket Set

6 300 ₽
10

3B7-61012-0 New part

New part

940 ₽
10

3B7-02312-0 New part

New part

250 ₽
10

3B7-61181-0 New part

New part

720 ₽
10

332-60006-0 Gasket (8.1x15.1)

Gasket (8.1x15.1)

200 ₽
10

3B7-60016-0 O-Ring

O-Ring

100 ₽
10

3B7-65018-0 Прокладка насоса

Прокладка насоса

300 ₽
10

3B7-65029-0 Gasket, guide plate

Gasket, guide plate

300 ₽
10

3C7-60223-1 Oil seal, 22-42-7

Oil seal, 22-42-7

1 430 ₽
10

3B7-65015-0 O-Ring

O-Ring

660 ₽
10

345-66021-0 O-Ring

O-Ring

290 ₽
10

3B7-66023-0 O-Ring

O-Ring

570 ₽
10

3B7-60103-0 O-Ring

O-Ring

1 310 ₽
10

3B7-60111-0 Oil seal, 30-50-12

Oil seal, 30-50-12

3 290 ₽
10

3B7-60219-0 Packing, Trim Tab

Packing, Trim Tab

540 ₽
11

3B7S87314-2 Extension housing kit ul
FOR TRANSOM XL

Extension housing kit ul
FOR TRANSOM XL

20 ₽
12

3B7-84490-1 Top mount remote control ass'y kit(rc6f)
FOR SINGLE ENGINE N. A. F. N.

Top mount remote control ass'y kit(rc6f)
FOR SINGLE ENGINE N. A. F. N.

85 890 ₽
12

3B7-84540-1 Twin top mount remocon kit(rc6ft)
FOR SINGLE ENGINE N. A. F. N.

Twin top mount remocon kit(rc6ft)
FOR SINGLE ENGINE N. A. F. N.

161 860 ₽
