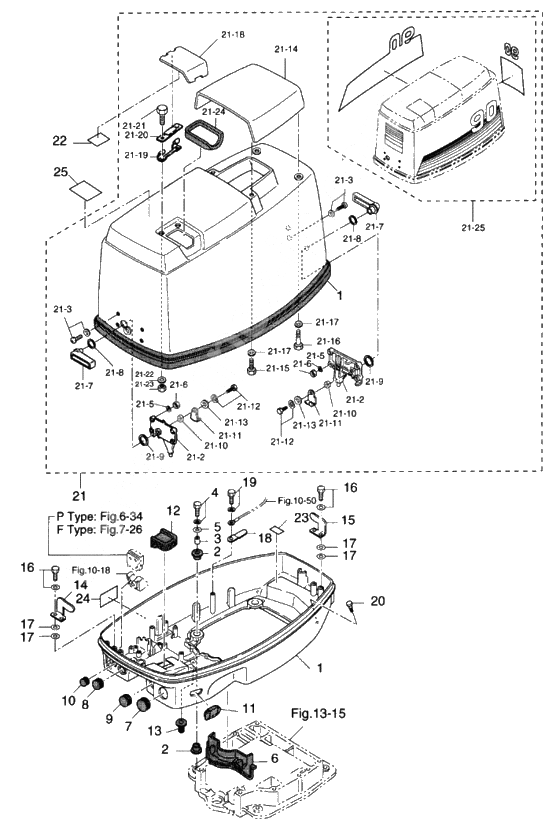

Motor cover для Tohatsu M90A - 1996 года выпуска
-
№АртикулНазвание
-
1353S67100-6 Motor cover lowerMotor cover lower
-
2346-67113-0 Mount RubberMount Rubber
-
3346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
4910103-6630 BoltBolt
-
5346-67115-0 WasherWasher
-
63B7-67164-0 Grommet a, lower coverGrommet a, lower cover
-
7353-67165-0 Grommet b lower coverGrommet b lower cover
-
8353-67166-0 Grommet c lower coverGrommet c lower cover
-
9345-67161-0 Grommet 22-3Grommet 22-3
-
10345-67117-0 New partNew part
-
113B7-77156-0 GrommetGrommet
-
123B7-67083-0 Grommet h, lower coverGrommet h, lower cover
-
13345-66226-0 Grommet, 17-3Grommet, 17-3
-
14353-67512-0 Cover stay(front)Cover stay(front)
-
15353-67513-0 Cover stay(rear)Cover stay(rear)
-
16910103-6618 BoltBolt
-
17940103-0600 WasherWasher
-
18309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
19910103-6612 BoltBolt
-
20338-67179-0 Drain plug engine baseDrain plug engine base
-
213B7S67510-0 Upper motor cover m90a
FOR AUTOMIXING / TOHATSUUpper motor cover m90a
FOR AUTOMIXING / TOHATSU -
3B7S67510-1 Upper motor cover m90aUpper motor cover m90a
-
213B8N67510-5 Umc ns90a (2000)
FOR AUTOMIXING / NISSANUmc ns90a (2000)
FOR AUTOMIXING / NISSAN -
21-1353-67501-0 New partNew part
-
21-10353-67105-0 BushingBushing
-
21-11353-67142-1 Cover HookCover Hook
-
21-12910103-6616 BoltBolt
-
21-133C8-66308-0 New partNew part
-
21-15910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
21-16910103-0616 BoltBolt
-
21-173C8-66308-0 New partNew part
-
21-183B7S67210-0 Filler lidFiller lid
-
21-193B7-67211-0 Hinge, Filler LidHinge, Filler Lid
-
21-2353-67517-1 Locating bracketLocating bracket
-
21-203B7-67212-0 Spring, filler lidSpring, filler lid
-
21-21910103-0614 BoltBolt
-
21-22940103-0600 WasherWasher
-
21-23930103-0600 NutNut
-
21-243B7-67213-0 Seal rubber, filler lidSeal rubber, filler lid
-
21-253B7-87802-0 Decal set m90a
AUTOMIXING / TOHATSUDecal set m90a
AUTOMIXING / TOHATSU -
3B7S87802-1 Decal set m90aDecal set m90a
-
21-253B8-87801-5 Decal set ns90a (2000)
AUTOMIXING / NISSANDecal set ns90a (2000)
AUTOMIXING / NISSAN -
21-253B7-87801-0 Decal set for m90a
PREMIXING / TOHATSUDecal set for m90a
PREMIXING / TOHATSU -
21-3921703-5520 Stud BoltStud Bolt
-
21-5941303-0500 Spring WasherSpring Washer
-
21-6930111-0500 NutNut
-
21-7353S67141-0 Hook leverHook lever
-
21-8338-62435-0 O-RingO-Ring
-
21-9353-67147-1 Seal ringSeal ring
-
223B7-72041-0 Label oil
AUTOMIXINGLabel oil
AUTOMIXING -
253C7-72180-0 Caution label (ce-a)Caution label (ce-a)
