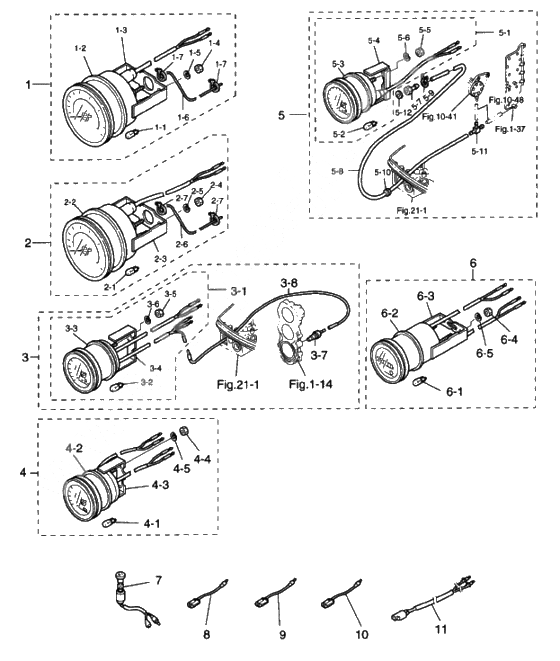

Optional parts (1) для Tohatsu M90A - 1996 года выпуска
-
№АртикулНазвание
-
13E0-72649-0 Speedometer 75mph Kit BSpeedometer 75mph Kit B
-
1-13B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
1-23B7-72656-0 Damper, MeterDamper, Meter
-
1-33B7-72661-0 Plate, FittingPlate, Fitting
-
1-4930203-0500 NutNut
-
1-5941303-0500 Spring WasherSpring Washer
-
1-63B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
1-73B7-72651-0 Band, SpeedometerBand, Speedometer
-
23E0-72648-0 Speedometer 50mph Kit BSpeedometer 50mph Kit B
-
2-13B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
2-23B7-72656-0 Damper, MeterDamper, Meter
-
2-33B7-72661-0 Plate, FittingPlate, Fitting
-
2-4930203-0500 NutNut
-
2-5941303-0500 Spring WasherSpring Washer
-
2-63B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
2-73B7-72651-0 Band, SpeedometerBand, Speedometer
-
33E0-72526-0 Water temperature meter kitWater temperature meter kit
-
3-13E0-72597-0 Water temperature meter ass'yWater temperature meter ass'y
-
3-23B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
3-33B7-72655-0 Damper, MeterDamper, Meter
-
3-43B7-72662-0 Plate, FittingPlate, Fitting
-
3-5930203-0400 NutNut
-
3-6941303-0400 Spring WasherSpring Washer
-
3-73B7-72514-0 Sender, water temperatureSender, water temperature
-
3-83B7-72518-0 Lead wire, water temperature meterLead wire, water temperature meter
-
43E0-72529-0 Voltmeter Ass'yVoltmeter Ass'y
-
4-13B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
4-23B7-72655-0 Damper, MeterDamper, Meter
-
4-33B7-72662-0 Plate, FittingPlate, Fitting
-
4-4930203-0400 NutNut
-
4-5941303-0400 Spring WasherSpring Washer
-
53E0-72527-0 Water Pressure Meter KitWater Pressure Meter Kit
-
5-13E0-72598-0 Water Pressure Meter Ass'yWater Pressure Meter Ass'y
-
5-10345-67193-0 Grommet,16-2.5Grommet,16-2.5
-
5-11353-70013-0 Соединение трубкиСоединение трубки
-
5-12121-33159-0 Gasket 2-8-1Gasket 2-8-1
-
5-23B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
5-33B7-72655-0 Damper, MeterDamper, Meter
-
5-43B7-72663-0 Plate, FittingPlate, Fitting
-
5-5930203-0500 NutNut
-
5-6941303-0500 Spring WasherSpring Washer
-
5-73B7-72641-0 Nipple, Water Pressure MeterNipple, Water Pressure Meter
-
5-89810-5-6000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
5-9338-02215-0 ClipClip
-
63E0-72524-0 Hourmeter Ass'yHourmeter Ass'y
-
6-13B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
6-23B7-72655-0 Damper, MeterDamper, Meter
-
6-33B7-72664-0 Plate FittingPlate Fitting
-
6-4930203-0400 NutNut
-
6-5941303-0400 Spring WasherSpring Washer
-
7353-72521-1 Switch Meter LampSwitch Meter Lamp
-
8353-72547-0 Assist Cord(blue)Assist Cord(blue)
-
9353-72548-0 Assist Cord(black)Assist Cord(black)
-
10353-72546-0 Assist Cord(Red)Assist Cord(Red)
-
11361-72539-0 Lead Wire Tachometer
FOR F TYPELead Wire Tachometer
FOR F TYPE
