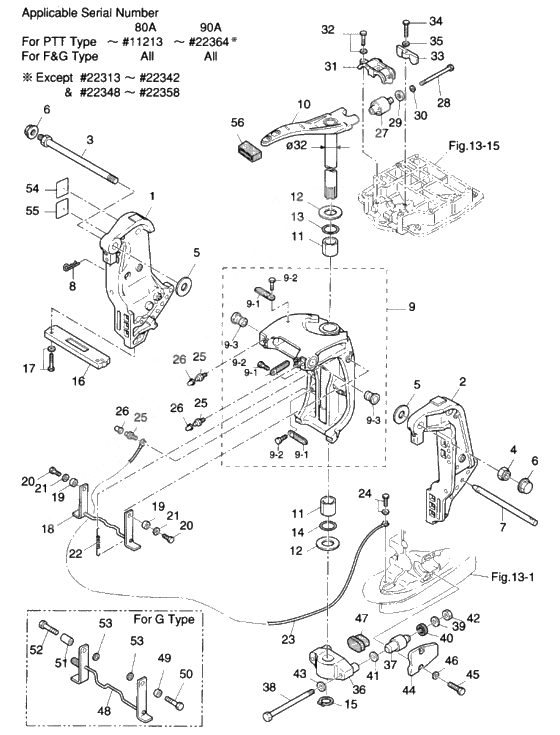

Bracket для Tohatsu M90A - 1996 года выпуска
-
№АртикулНазвание
-
23B7S62113-1 Stern bracket lStern bracket l
-
33B7-62191-0 Bracket Bolt Ass'yBracket Bolt Ass'y
-
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
53B7-62116-0 WasherWasher
-
6346-62127-0 Cap,Bracket Bolt
FOR F TYPECap,Bracket Bolt
FOR F TYPE -
73B7-62121-0 Thrust RodThrust Rod
-
83B7-62129-1 Pin, Thrust RodPin, Thrust Rod
-
93C7S62313-1 Swivel bracket ass'y
FOR PTT TYPESwivel bracket ass'y
FOR PTT TYPE -
9-1309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
9-2910103-0610 BoltBolt
-
9-33C7-62126-0 BushingBushing
-
103B7S62010-1 Steering shaft ass'ySteering shaft ass'y
-
113B7-62417-0 BushingBushing
-
123B7-62423-0 Thrust PlateThrust Plate
-
133B7-62414-0 Seal Ring, Steering ShaftSeal Ring, Steering Shaft
-
143B7-62415-0 O-RingO-Ring
-
15945103-3200 C-RingC-Ring
-
163C7-60218-1 AnodeAnode
-
3C7-60218-2 AnodeAnode
-
17910103-6630 BoltBolt
-
183B7S62472-0 Tilt Stopper
FOR PTT TYPETilt Stopper
FOR PTT TYPE -
193B7-62457-0 Collar, 10.5-13.8-7.6
FOR PTT TYPECollar, 10.5-13.8-7.6
FOR PTT TYPE -
20910103-1025 Bolt
FOR PTT TYPEBolt
FOR PTT TYPE -
21940103-1000 Washer
FOR PTT TYPEWasher
FOR PTT TYPE -
223B7-62473-0 Spring Tilt Stopper
FOR PTT TYPESpring Tilt Stopper
FOR PTT TYPE -
233B7-62396-0 Ground WireGround Wire
-
24910103-5612 BoltBolt
-
25344-67177-0 МасленкаМасленка
-
26344-67178-0 Cap grease nippleCap grease nipple
-
273B7-61301-0 Upper Mount RobberUpper Mount Robber
-
283B7-61307-1 Bolt, upper mount rubberBolt, upper mount rubber
-
293C7-61338-0 Damper RubberDamper Rubber
-
303B7-61335-0 WasherWasher
-
313B7S61341-1 Cap, mount rubber upper
90A #20995~Cap, mount rubber upper
90A #20995~ -
32910103-6835 BoltBolt
-
333B7-61339-0 Damper, Mount Rubber UpperDamper, Mount Rubber Upper
-
34910103-0625 BoltBolt
-
353C8-66308-0 New partNew part
-
37353-61302-0 Lower Mount RubberLower Mount Rubber
-
38353-61321-2 BoltBolt
-
353-61321-3 BoltBolt
-
39353-61334-0 WasherWasher
-
403C7-61338-0 Damper RubberDamper Rubber
-
41353-61315-0 WasherWasher
-
353-61315-1 WasherWasher
-
423B7-61324-0 NutNut
-
43940203-1200 WasherWasher
-
443B7S61342-0 Cap lower mount rubberCap lower mount rubber
-
45910103-0825 BoltBolt
-
46940203-0800 WasherWasher
-
47353-61336-0 Damper RubberDamper Rubber
-
483B7S77615-1 Tilt stopper manual tilt
FOR G TYPETilt stopper manual tilt
FOR G TYPE -
493B7-62457-0 Collar, 10.5-13.8-7.6
FOR G TYPECollar, 10.5-13.8-7.6
FOR G TYPE -
513B7-77612-0 Collar 10.5-13.8-14.5
FOR G TYPECollar 10.5-13.8-14.5
FOR G TYPE -
53940103-1000 Washer
FOR G TYPEWasher
FOR G TYPE -
563B7-62095-0 Damper Rubber
L=20MM / FOR TRANSOM LDamper Rubber
L=20MM / FOR TRANSOM L -
563B7-62096-0 Damper Rubber B
L=20MM / FOR TRANSOM XLDamper Rubber B
L=20MM / FOR TRANSOM XL
