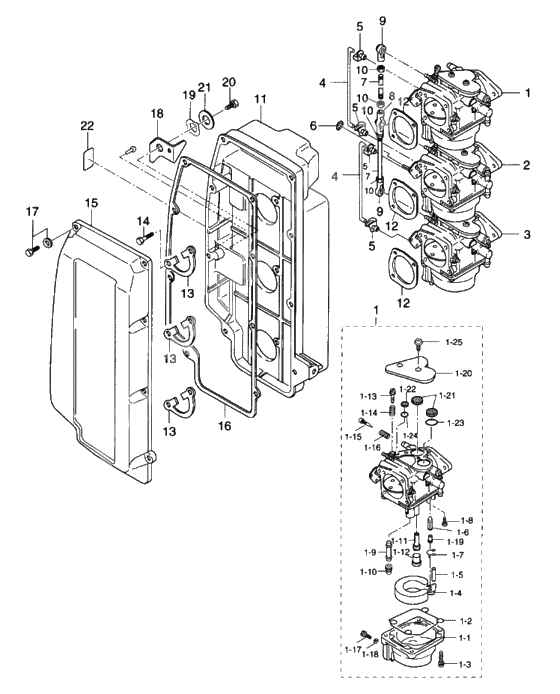

Carburetor для Tohatsu M90A - 1996 года выпуска
-
№АртикулНазвание
-
13L9-03200-0 Carburetor upper ass'y
90A #22253~Carburetor upper ass'y
90A #22253~ -
1-1353-03221-0 Float Chamber
X3 UPPER CENTER LOWERFloat Chamber
X3 UPPER CENTER LOWER -
1-103B7-03251-0 Жиклер главный
X3Жиклер главный
X3 -
1-113B7-03255-0 Slow jet #75
X3Slow jet #75
X3 -
3C7-03255-0 Slow jet #75Slow jet #75
-
1-12346-03256-0 Rubber cap
X3Rubber cap
X3 -
1-13346-03265-0 Stop Screw
CARBURETOR UPPERStop Screw
CARBURETOR UPPER -
1-14346-03267-0 Spring a
CARBURETOR UPPERSpring a
CARBURETOR UPPER -
1-15346-03266-0 Adjust Screw
X3Adjust Screw
X3 -
1-16353-03268-0 Spring B
X3Spring B
X3 -
1-17345-03292-0 Drain Screw
X3Drain Screw
X3 -
1-18336-03293-0 O-Ring
X3O-Ring
X3 -
1-19334-03242-0 Игольчатый клапан
X3Игольчатый клапан
X3 -
1-2346-03222-0 O-ring, float
X3O-ring, float
X3 -
1-213C7-03182-0 Gasket a, carburetor cover
X3Gasket a, carburetor cover
X3 -
1-223C7-03183-0 Gasket b, carburetor cover
X3Gasket b, carburetor cover
X3 -
1-233C7-03184-0 Plate a, cover gasket
X3Plate a, cover gasket
X3 -
1-243C7-03185-0 Plate b, cover gasket
X3Plate b, cover gasket
X3 -
1-253C7-03186-0 Stud Bolt
X3Stud Bolt
X3 -
1-3922503-6414 Stud Bolt
X3Stud Bolt
X3 -
1-4346-03231-0 Float
X3Float
X3 -
1-5346-03232-0 Arm Pin Float
X3Arm Pin Float
X3 -
1-63B7-03240-0 Float Valve
X3Float Valve
X3 -
1-7344-03244-0 Clip
X3Clip
X3 -
1-83F3-03234-0 Screw arm pin
X3Screw arm pin
X3 -
1-93L9-03252-0 Main Nozzle
X3 90A #22253~Main Nozzle
X3 90A #22253~ -
23L9-03207-0 Carburetor center ass'y
90A #22253~Carburetor center ass'y
90A #22253~ -
33L9-03210-0 Carburetor lower ass'y
90A #22253~Carburetor lower ass'y
90A #22253~ -
4353-67191-0 Rod choke valveRod choke valve
-
5345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
63C7-03271-0 O-RingO-Ring
-
7353-63709-0 Throttle RodThrottle Rod
-
83B7-05229-0 Cap b, ball jointCap b, ball joint
-
93B7-05243-0 New partNew part
-
10930106-0500 New partNew part
-
113B7-02411-0 Air Silencer
WITH RIVIT 2-5Air Silencer
WITH RIVIT 2-5 -
12346-02414-0 Gasket air silencerGasket air silencer
-
13345-02417-1 Lock plate air silencerLock plate air silencer
-
14910121-0618 BoltBolt
-
153B7-02415-0 Cover, air silencerCover, air silencer
-
163B7-02418-0 Gasket, air silencerGasket, air silencer
-
17910103-5620 BoltBolt
-
183B7-67152-0 РукояткаРукоятка
-
19941403-1000 WasherWasher
-
20910103-0610 BoltBolt
-
21346-67115-0 WasherWasher
-
223B7-72015-0 Label, chokeLabel, choke
