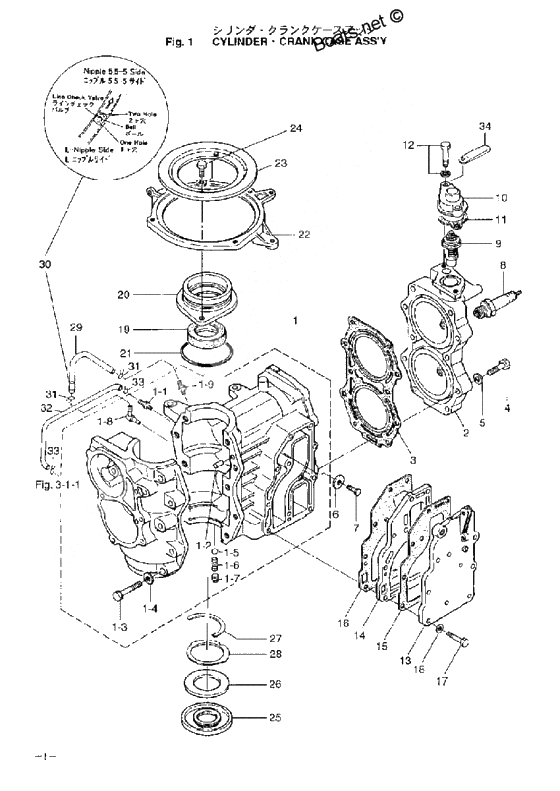

Cylinder - crank case assy для Tohatsu M9.9D - 2002 года выпуска
-
№АртикулНазвание
-
1362B01100-3 Cylinder&crank?case
18E2 # 03126-Cylinder&crank?case
18E2 # 03126- -
1338-01131-1 ЗолотникЗолотник
-
2398B01001-0 Головка цилиндровГоловка цилиндров
-
2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
2397B01001-0 Головка цилиндровГоловка цилиндров
-
3350-01005-0 New partNew part
-
3910124-0845 BoltBolt
-
3351-01005-0 New partNew part
-
4916119-0840 BoltBolt
-
4940121-0800 WasherWasher
-
5332-01121-1 Nylon ball check valveNylon ball check valve
-
6338-60218-2 New partNew part
-
6332-01122-0 Spring check valveSpring check valve
-
7350-00063-0 Seal ring, plugSeal ring, plug
-
7910103-0616 Bolt
or 910113-0616Bolt
or 910113-0616 -
8393-01137-0 Drain nipple
18E2 # 03126-, 15D2 # 44381-, 9.9D2 # 80077-Drain nipple
18E2 # 03126-, 15D2 # 44381-, 9.9D2 # 80077- -
83B2-01160-0 Check valve nipple assy
18E2 # 03125-, 15D2 # 44380-, 9.9D2 # 80076-Check valve nipple assy
18E2 # 03125-, 15D2 # 44380-, 9.9D2 # 80076- -
9350-01030-1 ThermostatThermostat
-
9393-01131-0 Drain nipple
18E2 # 03126-, 15D2 # 44381-, 9.9D2 # 80077-Drain nipple
18E2 # 03126-, 15D2 # 44381-, 9.9D2 # 80077- -
103H6B01031-0 Cap,ThermostatCap,Thermostat
-
11346-01032-0 New partNew part
-
13350B02301-1 Exhaust cover outerExhaust cover outer
-
14350B02302-0 Exhaust Cover InnerExhaust Cover Inner
-
350B02302-1 Exhaust Cover InnerExhaust Cover Inner
-
15350-02305-0 New partNew part
-
16350-02306-0 Gasket exhaust cover innerGasket exhaust cover inner
-
17910114-0625 Bolt
or 910114-5625Bolt
or 910114-5625 -
18940121-0600 WasherWasher
-
19350-00121-0 Oil SealOil Seal
-
20350-01401-0 ЗажиганиеЗажигание
-
21338-01403-0 O-RingO-Ring
-
22350-63723-0 Комплект колецКомплект колец
-
23346-63722-2 Guide PlateGuide Plate
-
24910121-0620 BoltBolt
-
25350-01215-5 Oil SealOil Seal
-
26362-00128-0 Ring oil seal lowerRing oil seal lower
-
27350-00115-0 Thrust Plate CrankshaftThrust Plate Crankshaft
-
28350-00107-0 Thrust plate lower crankshaftThrust plate lower crankshaft
-
30393-01160-0 Check Valve
18E2 # 03126-, 15D2 # 44381-, 9.9D2 # 80077-Check Valve
18E2 # 03126-, 15D2 # 44381-, 9.9D2 # 80077- -
313T5-01133-0 Clip
тИЕ8, 18E2 # 03126-, 15D2 # 44381-, 9.9D2 # 80077-Clip
тИЕ8, 18E2 # 03126-, 15D2 # 44381-, 9.9D2 # 80077- -
33338-01133-0 Clip
тИЕ7Clip
тИЕ7 -
34398-06972-0 Clamp,6.5-67PClamp,6.5-67P
