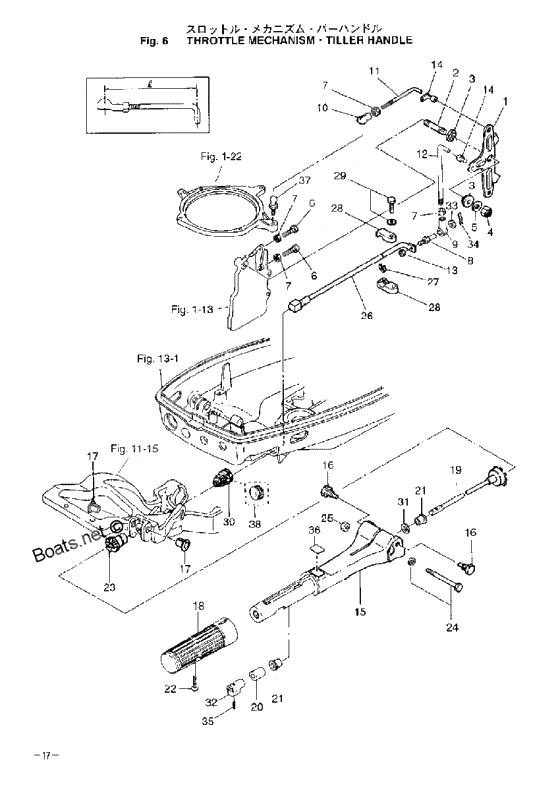

Throttle mechanism - tiller handle для Tohatsu M9.9D - 2002 года выпуска
-
№АртикулНазвание
-
1350-63711-1 Advancer ArmAdvancer Arm
-
2915221-0823 Stud BoltStud Bolt
-
3345-63713-0 BushingBushing
-
4930406-0800 Nylon NutNylon Nut
-
53P0-66233-0 New part
or 334-66233-0New part
or 334-66233-0 -
8353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
9346-05234-0 New part
тИЕ5New part
тИЕ5 -
103B7-05243-0 New partNew part
-
11350-63715-0 Advancer link rod
L=73Advancer link rod
L=73 -
12398-63717-0 Link Rod
18E2/15D2 L=78, 9.9D2 L=75Link Rod
18E2/15D2 L=78, 9.9D2 L=75 -
14345-05224-0 Rod snap,5-2.5Rod snap,5-2.5
-
15398S63011-0 Handle aHandle a
-
16346-63201-1 Bolt handle aBolt handle a
-
17345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
18398-63012-0 GripGrip
-
19398-63041-0 Ось дросселяОсь дросселя
-
20345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
21350-63046-0 BushingBushing
-
22921803-0525 Stud BoltStud Bolt
-
23350-63064-0 Universal pinionUniversal pinion
-
25930403-0600 Nylon NutNylon Nut
-
26350-63061-1 Throttle shaft bThrottle shaft b
-
27945303-0600 E-RingE-Ring
-
28350-63063-0 Supporter, throttle shaftSupporter, throttle shaft
-
30345-66226-0 Grommet, 17-3Grommet, 17-3
-
31941403-1000 WasherWasher
-
32398-63053-0 Spacer Throttle ShaftSpacer Throttle Shaft
-
33353-83719-0 WasherWasher
-
34951603-0800 R-PinR-Pin
-
35951403-0310 New partNew part
-
36369-72019-1 Lable throttleLable throttle
-
37346-05228-0 New partNew part
-
38345-67117-0 New part
for Remote ControlNew part
for Remote Control
