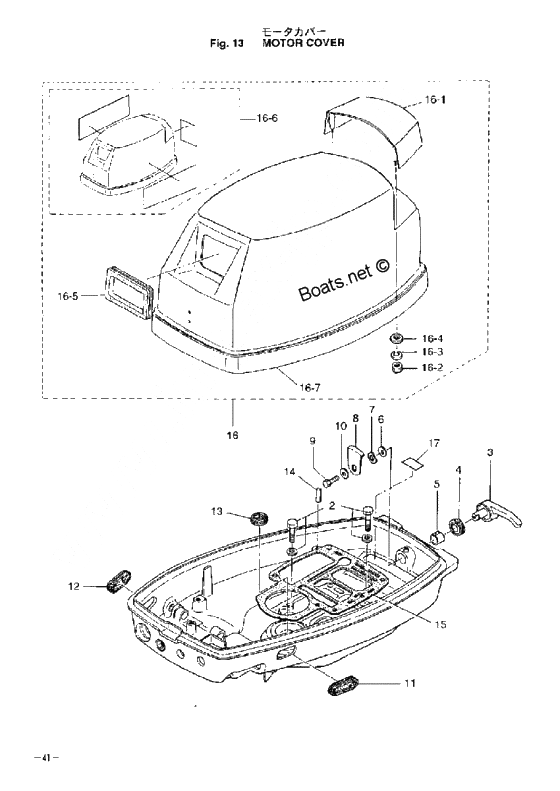

Motor cover для Tohatsu M9.9D - 2002 года выпуска
-
№АртикулНазвание
-
1350S67100-4 Motor cover lowerMotor cover lower
-
3338S67141-0 New partNew part
-
4338-67147-0 New partNew part
-
5350-67105-0 New partNew part
-
63C8-67146-0 WasherWasher
-
7941403-1400 New partNew part
-
8345-67142-1 New partNew part
-
9910103-0612 New part
or 910113-0612New part
or 910113-0612 -
103C8-66308-0 New part
or 3C8-66308-0New part
or 3C8-66308-0 -
11346-67165-0 Grommet b motor cover lowerGrommet b motor cover lower
-
12353-67162-0 Grommet, Bater CordGrommet, Bater Cord
-
13350-01215-1 Oil SealOil Seal
-
14345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
15350-01303-1 Gasket engine baseGasket engine base
-
163M4S67500-1 Motor cover upper ass'y
UniqueMotor cover upper ass'y
Unique -
16-13M2S67521-0 Tilt handleTilt handle
-
16-2930103-0600 Nut
, or 930113-0600Nut
, or 930113-0600 -
16-3941303-0600 New partNew part
-
16-5344-67503-0 Seal rubber recoil starterSeal rubber recoil starter
-
16-63M3S87801-0 Набор этикетокНабор этикеток
-
16-63M4S87801-0 Набор этикетокНабор этикеток
-
16-73F3-67501-0 Seal rubber upper motor coverSeal rubber upper motor cover
-
17361-72026-0 Label, resistance spark plugLabel, resistance spark plug
Все узлы модели:
- Accessories
- Assembly kit
- Bracket
- Carburetor - fuel filter
- Cylinder - crank case assy
- Drag link-reverse lock
- Driveshaft housing - gear case
- Electric starter
- Fuel tank (remote)
- Gear shift
- Inlet - reed valve
- Magneto
- • Motor cover
- Piston & crank shaft
- Recoil starter - starter lock
- Remote control
- Reverse lock
- Throttle mechanism - tiller handle
- Transmission - water pump
