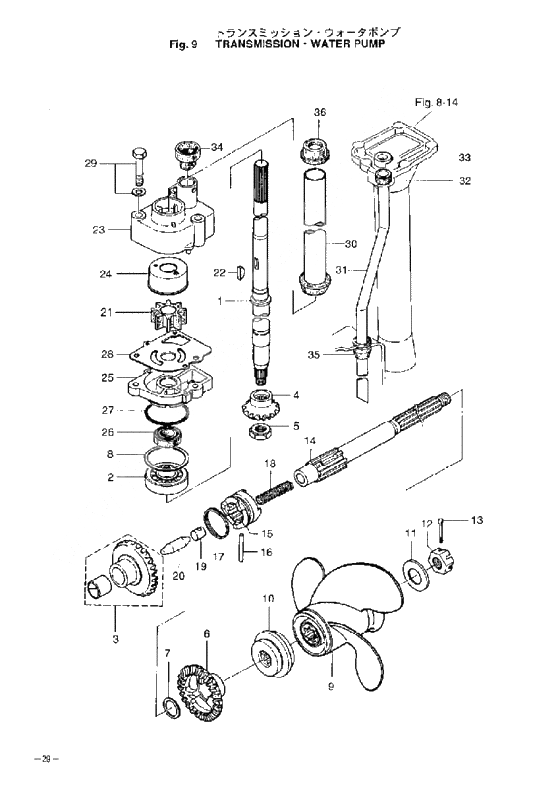

Transmission - water pump для Tohatsu M9.9D - 2002 года выпуска
-
№АртикулНазвание
-
1350-64301-0 Вал торсионный S""
for Transom S""Вал торсионный S""
for Transom S"" -
1350-64302-0 Drive shaft l
for Transom L""Drive shaft l
for Transom L"" -
1350-64303-0 Drive Shaft UL
for Transom UL""Drive Shaft UL
for Transom UL"" -
1350-64304-0 Drive shaft ll
for Transom LL""Drive shaft ll
for Transom LL"" -
29601-0-6302 Ball BearingBall Bearing
-
3350-64010-0 Bevel Gear A Ass'yBevel Gear A Ass'y
-
4350-64020-0 Bevel Gear BBevel Gear B
-
5346-64027-1 Nut, Bevel Gear BNut, Bevel Gear B
-
6362-64030-0 Bevel Gear CBevel Gear C
-
7350-64032-0 WasherWasher
-
8346-64083-0 Shim, 35-41.9-0.3Shim, 35-41.9-0.3
-
8346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
8346-64081-0 Shim, 35-41.9-0.1Shim, 35-41.9-0.1
-
8346-64082-0 Shim, 35-41.9-0.15Shim, 35-41.9-0.15
-
9362-64108-0 Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)
-
362B64108-0 Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)
-
9362-64107-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) blackProp 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
-
362B64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) blackProp 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
-
9362-64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
15D2/9.9D2 UL""Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
15D2/9.9D2 UL"" -
362B64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) blackProp 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
-
9362-64103-0 Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)
18E2 UL", 15D2/9.9D2 "L" and "LL""Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)
18E2 UL", 15D2/9.9D2 "L" and "LL"" -
362B64103-0 Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)
-
9362-64102-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
18E2 LL" and "UL", 15D2 "S""Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
18E2 LL" and "UL", 15D2 "S"" -
362B64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
-
9362-64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
18E2 S""Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
18E2 S"" -
362B64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
-
10362-64231-0 Thrust HolderThrust Holder
-
11346-64124-5 WasherWasher
-
12346-64121-5 ナット、プロペラナット、プロペラ
-
13951503-0322 Split pin, 3-22Split pin, 3-22
-
14362-64211-0 Propeller ShaftPropeller Shaft
-
15362-64215-0 ClutchClutch
-
16350-64218-0 Clutch Pin
тИЕ5 - 30Clutch Pin
тИЕ5 - 30 -
17350-64219-0 Snap ClutchSnap Clutch
-
18332-64221-0 New partNew part
-
19350-64222-0 New partNew part
-
20350-64223-1 Push Rod ClutchPush Rod Clutch
-
21334-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
22350-65022-0 New partNew part
-
23350-65016-1 New partNew part
-
24350-65011-1 New partNew part
-
25350-65017-0 Water pump case lowerWater pump case lower
-
26332-60223-0 Oil SealOil Seal
-
27336-62415-0 O-RingO-Ring
-
28350-65025-0 New partNew part
-
30350-64322-0 Guard pipe drive shaftGuard pipe drive shaft
-
31350-65100-0 Water pipe s
for Transom S""Water pipe s
for Transom S"" -
31350-65110-0 Water Pipe L
for Transom L""Water Pipe L
for Transom L"" -
31350-65120-0 Water Pipe UL
for Transom UL""Water Pipe UL
for Transom UL"" -
31350-65130-0 Water pipe ll
for Transom LL""Water pipe ll
for Transom LL"" -
32350-65206-0 Seal rubber upper water pipeSeal rubber upper water pipe
-
33350-65205-0 Stopper water pipeStopper water pipe
-
34350-65014-0 New partNew part
-
35350-65204-0 Guide rubber water pipeGuide rubber water pipe
-
36350-64326-0 Grommet upper drive shaftGrommet upper drive shaft
