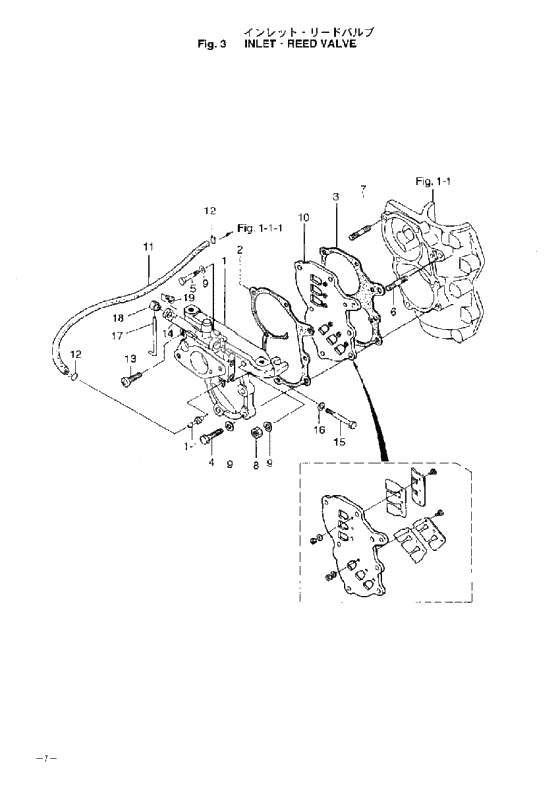

Inlet - reed valve для Tohatsu M9.9D - 2002 года выпуска
-
№АртикулНазвание
-
13M2B02010-0 Inlet Manifold
18E # 88700-, 15D # 39018-, 9.9D # 71413-Inlet Manifold
18E # 88700-, 15D # 39018-, 9.9D # 71413- -
1-1338-01131-1 ЗолотникЗолотник
-
2350-02104-0 New partNew part
-
3350-02105-1 Gasket b inlet manifoldGasket b inlet manifold
-
4916124-0628 BoltBolt
-
5916124-0635 Bolt
or 916114-0635Bolt
or 916114-0635 -
6915324-0625 Stud BoltStud Bolt
-
7915324-0630 Stud BoltStud Bolt
-
8930121-0600 NutNut
-
9940121-0600 WasherWasher
-
10362-02100-1 Reed Valve Ass'yReed Valve Ass'y
-
12338-01133-0 Clip
тИЕ7Clip
тИЕ7 -
13921521-0620 Stud BoltStud Bolt
-
143M2-03172-0 Throttle Arm
18E # 88700-, 15D # 39018-, 9.9D # 71413-Throttle Arm
18E # 88700-, 15D # 39018-, 9.9D # 71413- -
16941303-0500 Spring WasherSpring Washer
-
17350-03174-0 RodRod
-
18350-03176-0 Throttle lever endThrottle lever end
-
19350-03178-0 Stud BoltStud Bolt
