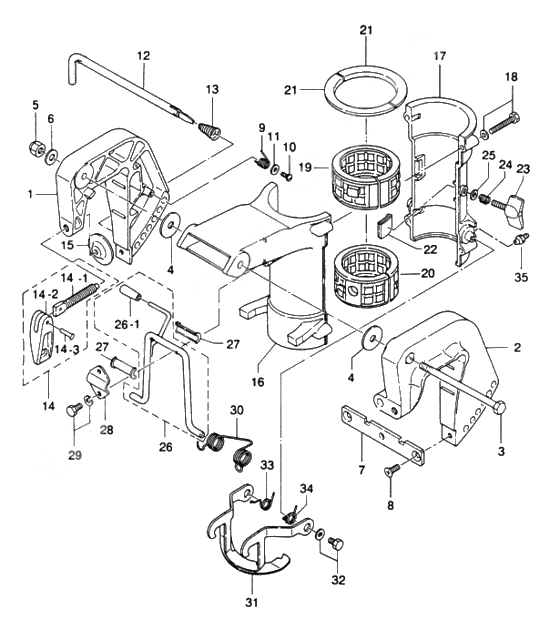

Bracket - reverse lock arm для Tohatsu M5B - 2003 года выпуска
-
№АртикулНазвание
-
1369S62112-3 Stern bracket r
STARBOARDStern bracket r
STARBOARD -
2369S62113-2 Stern bracket l
PORTStern bracket l
PORT -
3309-62115-2 Bolt 8-122Bolt 8-122
-
4307-62116-1 WasherWasher
-
5930446-0800 Nylon NutNylon Nut
-
6940113-0800 WasherWasher
-
7369-62118-0 Distance plate bracketDistance plate bracket
-
8921613-0612 Stud BoltStud Bolt
-
9369-62146-1 Spring Stern BracketSpring Stern Bracket
-
10920703-0406 Stud BoltStud Bolt
-
11369-62147-0 WasherWasher
-
12350-62121-1 Thrust RodThrust Rod
-
13369-62122-2 Spring Thrust RodSpring Thrust Rod
-
14369S62100-1 Clamp Screw Ass'yClamp Screw Ass'y
-
14-1369-62103-0 Винт струбциныВинт струбцины
-
14-2307S62102-1 Handle, clamp screwHandle, clamp screw
-
14-33C8-62104-1 Rivet3-22Rivet3-22
-
15332-62101-0 Pad clamp screwPad clamp screw
-
16369S62391-2 Swivel bracket aSwivel bracket a
-
17393S62392-1 Swivel bracket bSwivel bracket b
-
18910113-5635 BoltBolt
-
19393-62416-0 Bushing Upper, SteeringBushing Upper, Steering
-
20393-62417-0 Bushing lower, steeringBushing lower, steering
-
21369-62422-0 Thrust PlateThrust Plate
-
22369-62441-1 Friction plate bracketFriction plate bracket
-
23309S62442-2 Steering adjust screwSteering adjust screw
-
24309-62446-1 Spring Steering FrictionSpring Steering Friction
-
25940113-0600 WasherWasher
-
26393S62431-2 Tilt Stopper Ass'yTilt Stopper Ass'y
-
26-1393-62433-0 Grip Tilt StopperGrip Tilt Stopper
-
3AS-62433-0 Grip Tilt StopperGrip Tilt Stopper
-
27393-62437-0 Bushing Tilt StopperBushing Tilt Stopper
-
28369-62439-1 Set Plate Tilt StopperSet Plate Tilt Stopper
-
29910113-5612 BoltBolt
-
30369-62434-0 Spring Tilt StopperSpring Tilt Stopper
-
31369-66313-0 Reverse Lock ArmReverse Lock Arm
-
32910113-5614 BoltBolt
-
33369-66338-0 Spring R Reverse Lock ArmSpring R Reverse Lock Arm
-
34369-66339-0 Spring L Reverse Lock ArmSpring L Reverse Lock Arm
-
35344-67177-0 МасленкаМасленка
