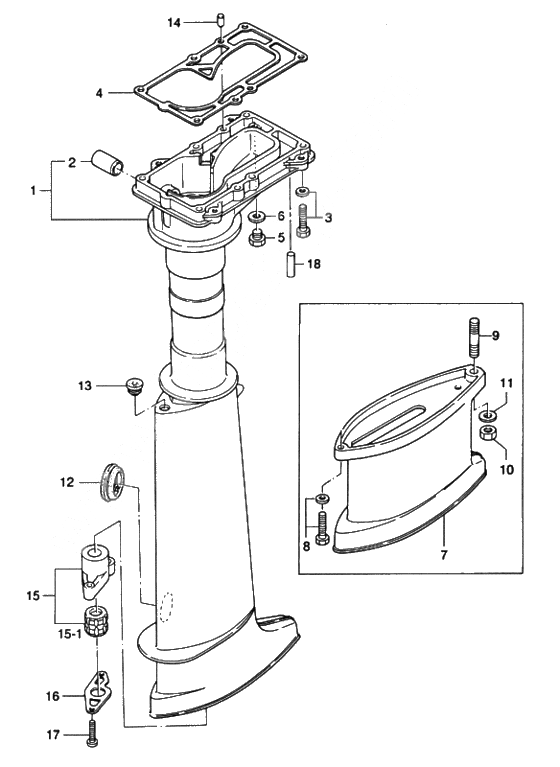

Drive shaft housing для Tohatsu M5B - 2003 года выпуска
-
№АртикулНазвание
-
1369S61020-2 Drive shaft housing s
FOR TRANSOM SDrive shaft housing s
FOR TRANSOM S -
1369S61030-2 Drive shaft housing l
FOR TRANSOM L ULDrive shaft housing l
FOR TRANSOM L UL -
2301-61021-0 Bushing Shift LeverBushing Shift Lever
-
3910113-5630 BoltBolt
-
4369-61012-0 New partNew part
-
5910613-0808 BoltBolt
-
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
7369S61110-0 Extension housing ul
FOR TRANSOM ULExtension housing ul
FOR TRANSOM UL -
8910113-5620 BoltBolt
-
9915213-0825 Stud BoltStud Bolt
-
10930113-0800 NutNut
-
11940113-0800 WasherWasher
-
12369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
-
13369-66043-1 Grommet Cam RodGrommet Cam Rod
-
14345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
15369-64331-1 Bushing drive shaft
FOR TRANSOM L ULBushing drive shaft
FOR TRANSOM L UL -
15-1369-60003-0 Bushing drive shaft
FOR TRANSOM L ULBushing drive shaft
FOR TRANSOM L UL -
16369-64332-0 Stopper drive shaft bushingStopper drive shaft bushing
-
17921503-0510 Stud Bolt
FOR TRANSOM SStud Bolt
FOR TRANSOM S -
173H6-64333-0 Stud Bolt
FOR TRANSOM L ULStud Bolt
FOR TRANSOM L UL -
18369-61097-0 Tube,drive shaft housingTube,drive shaft housing
-
1369S61020-2 Drive Shaft Housing S"
for Transom "S"Drive Shaft Housing S"
for Transom "S" -
1369S61030-2 Drive Shaft Housine: L"
for Transom "L" "UL"Drive Shaft Housine: L"
for Transom "L" "UL" -
2301-61021-0 * Bushine:, Shift Lever* Bushine:, Shift Lever
-
3910113-5630 BoltBolt
-
4369-61012-0 Gasket, Drive Shaft Housine:Gasket, Drive Shaft Housine:
-
5910613-0808 Water Plue:Water Plue:
-
6332-60006-0 Gasket, 8.1 -15-1Gasket, 8.1 -15-1
-
7369S61110-0 Extension Housing "UL"
for Transom "UL"Extension Housing "UL"
for Transom "UL" -
8910113-5620 BoltBolt
-
9915213-0825 Stud BoltStud Bolt
-
10930113-0800 NutNut
-
11940113-0800 WasherWasher
-
12369-61016-0 Grommet, 29-3Grommet, 29-3
-
13369-66043-1 Grommet, Cam RodGrommet, Cam Rod
-
14345-01111-0 Knock, 6-12Knock, 6-12
-
15369-64331-1 Bushine: Ass'y, Drive Shaft
for Transom "L", "UL"Bushine: Ass'y, Drive Shaft
for Transom "L", "UL" -
15-1369-60003-0 * Bushing , Drive Shaft
for Transom "L", "UL"* Bushing , Drive Shaft
for Transom "L", "UL" -
16369-64332-0 Stopper, Drive Shaft Bushine:Stopper, Drive Shaft Bushine:
-
17921503-0510 Screw,
for Transom "S"Screw,
for Transom "S" -
173H6-64333-0 Screw, 5-25
for Transom "L", "UL"Screw, 5-25
for Transom "L", "UL" -
18369-61097-0 Tube, Drive Shaft Housine:Tube, Drive Shaft Housine:
